ZWO ASI385 Color CMOS Astronomy Camera - ASI385MC

No Ratings Yet

Write a Review

Item #ZWOA-ASI385MC

  • Your Price:
  • $369.00
  • + FREE Shipping

Leave us your email, and we’ll let you know when this item is back in stock.

  • Designed by Sony with twice the sensitivity of the existing IMX185, the IMX385 CMOS sensor incorporated into this ZWO ASI385MC Color Camera is an optimal fit for industrial applications
  • Features of the ZWO ASI385MC Color CMOS Camera include low read noise, high dynamic range, over 80% peak QE, an AR protective window, and more for excellent astro-imaging efficiency
  • The Sony 1/2" CMOS IMX385 sensor has a 2.12 MP resolution with a 1936 x 1096 array of 3.75 µm square pixels
  • USB 3.0 port offers 5 gb bandwidth for 120 fps operation at full resolution in 12-bit high speed mode, as well as an ST4 port for guiding
Questions? Let our experts help!
  • Description

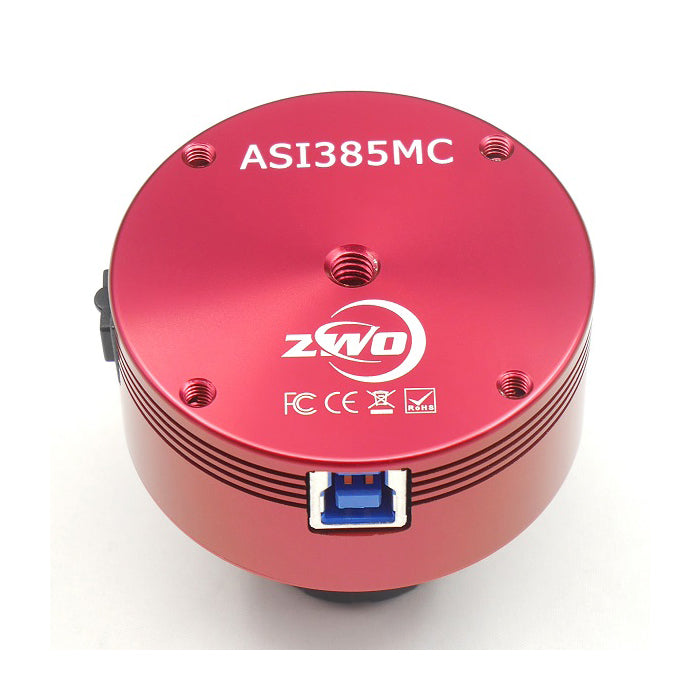

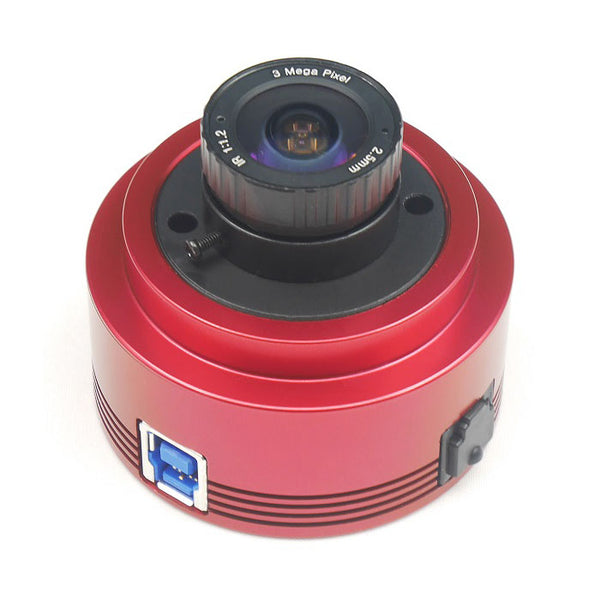

    ZWO ASI385MC Color CMOS Astronomy Camera



    Sony IMX385LQR CMOS Image Sensor

    This IMX385LQR CMOS sensor, from Sony Semiconductor Solutions, delivers twice the sensitivity of the existing IMX185LQJ. The picture quality is preserved at low illuminance, an often integral quality for cameras used in industrial applications. Pixels are mounted with a sensitivity of 2350 mV, the highest sensitivity of all Sony imaging sensors. To further optimize this sensor for industrial applications, SN1s of 0.13 1x are realized via the mounting of an internal programmable gain amplifier and high conversion gain pixels, while High Dynamic Range technology is combined with enhanced near-infrared light sensitivity.



    Astrophotography Performance

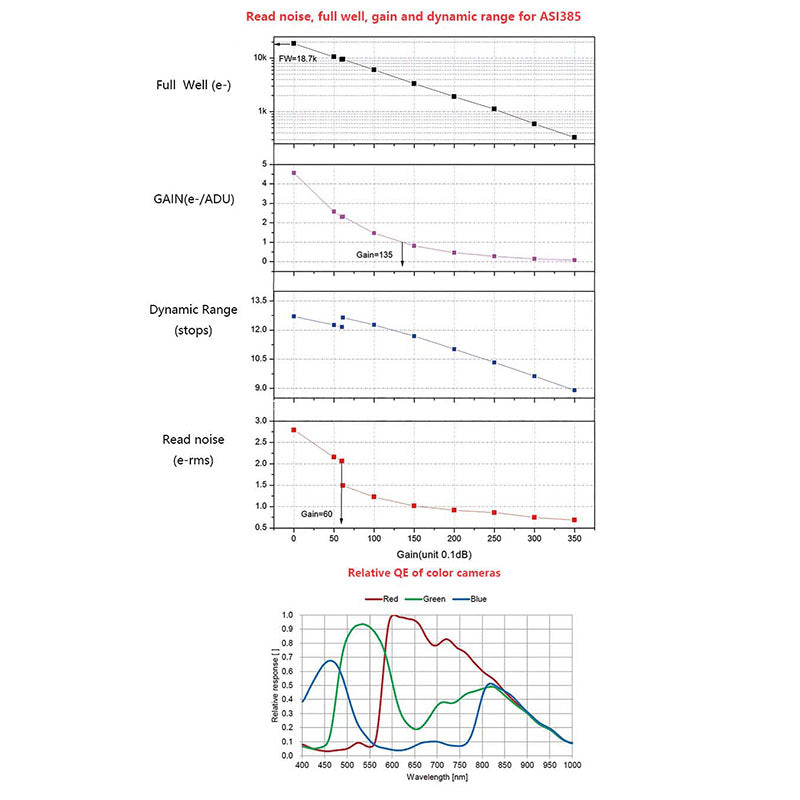

    With low read noise, high dynamic range, 80%+ QE peak, AR protective window, and more, the ASI385MC delivers excellent astro-imaging performance.



    USB 3.0 & ST-4 Ports

    The USB 3.0 port supplies 5 gb bandwidth to allow the ASI385 to run at 67 fps in 12-bit normal mode, or 120 fps in 10-bit high speed at full 2.12 MP resolution. Guiding is enabled via a mount auto guiding port to ST-4 port connection.







    Supplier SKU

    ASI385MC

    What's Included

    • ZWO ASI385MC USB 3.0 Color CMOS Astronomy Camera
    • USB 3.0 Cable
    • ST4 Guide Cable
    • 1.25" Cover
    • 1.25" Nosepiece
    • Quick Guide

  • Dimensions & Specifications

    • Sensor: Sony 1/2″ CMOS IMX385 color
    • Diagonal: 8.35mm
    • Resolution: 2.12 MP
    • Pixel Array: 1936 x 1096
    • Pixel Size: 3.75 µm x 3.75 µm
    • Minimum Exposure: 32 µs
    • Maximum Exposure: 2000 s
    • ROI: Supported
    • ST4 Guider Port: Yes
    • Focus Distance to Sensor: 12.5mm
    • Shutter Type: Rolling
    • Protect Window: AR coated
    • Operating System Compatibility: Mac; Windows; Linux
    • Interface: USB 3.0/USB 2.0
    • Bit Rate: 12-bit output (12-bit ADC)
    • Read Noise: 0.7e
    • QE Peak: >80%
    • Full Well Capacity: 18700e-
    • Adapter: 2"/1.25"/M42x0.75

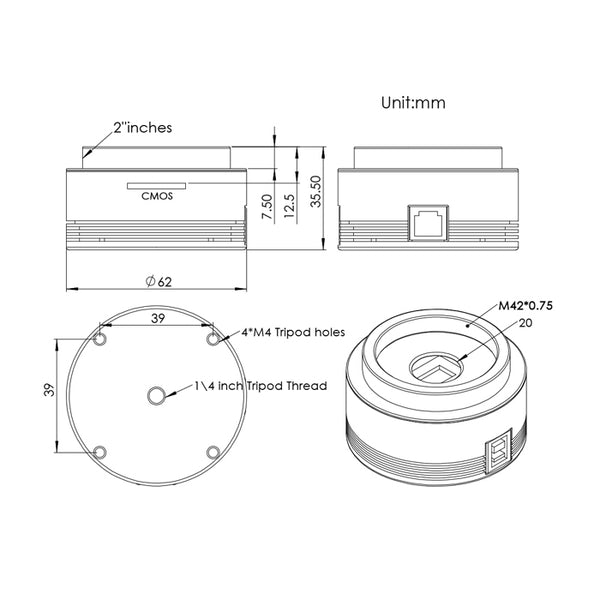

    • Dimensions: 62mm x 36mm
    • Weight: 4.2 oz. without lens
    • Working Temperature: -5°C - 45°C
    • Storage Temperature: -20°C - 60°C
    • Working Relative Humidity: 20% - 80%
    • Storage Relative Humidity: 20% - 95%


  • Product Guarantee

    We stand behind all the products we sell, and your satisfaction is our top priority. If you're not satisfied with the quality of your purchase, simply send the item back to us in its original packaging within 30 days of its delivery.

    Manufacturer Warranty

    2 years

    Return & Exchange Policy

    At our site, returns are easy! You may return new, unused, and resalable items for a refund or exchange. Simply ensure that the item is returned in its original product packaging within 30 days of delivery.
