Atik 16200 APS-H Color CCD Camera - ATK0155

No Ratings Yet

Write a Review

Item #ATIK-ATK0155

  • Your Price:
  • $3,570.00
  • + FREE Shipping

Leave us your email, and we’ll let you know when this item is back in stock.

  • With a KAF-16200 full frame color CCD sensor featuring 6 µm square pixels, this Atik imaging camera works with a wide variety of telescopes
  • The Atik 16200 APS-H Color CCD Camera has been upgraded to include a new dual-stage Peltier cooling system, heat sink, blade shutter, and a fashionable lightweight covering
  • Sealed argon-purged chamber housing keeps the KAF-16200 imaging sensor from accumulating moisture and dust particles
  • Each of the 4500 x 3600 photoactive pixels offers anti-blooming protection
  • This 16.2 MP CCD camera is optimized for large format, cooled CCD astrophotography
Questions? Let our experts help!
  • Description

    Atik 16200 APS-H Sized Color CCD Camera

    The Atik 16200 Imaging Camera features the KAF-16200 Color CCD sensor, which offers a large 35mm diagonal and 6 µm pixels to make this camera a great match for a wide range of telescopes. However, this amazing APS-H-sized sensor is not the only upgrade to the Atik 16200, it has a whole new body, too. Improvements include a new dual-stage Peltier cooling system, heat sink, blade shutter, and a cool lightweight casing that will serve you well.

    KAF-16200 Full Frame APS-H CCD Sensor

    The ON-Semi KAF−16200 is a single output, high performance CCD image sensor with 4500 (H) x 3600 (V) photoactive pixels. Each pixel contains anti−blooming protection by means of a lateral overflow drain, thereby preventing image corruption during high light level conditions, and microlenses are added for improved sensitivity. Each of the square 6.0 µm pixels are selectively covered with red, green, or blue pigmented filters for color separation. The 16200 sensor utilizes a transparent gate electrode to improve sensitivity compared to the use of a standard front side illuminated polysilicon electrode.

    The full frame KAF-16200 has a large 35mm diagonal, and can be used with a filter wheel that supports 2" filters. The large sensor size and generous 6 µm pixels makes the Atik 16200 suitable for a wide range of telescopes, whether you are using a fast scope to capture wide field celestial views, or telescopes with longer focal lengths to image the intricate details on even the smallest and faintest of objects. Whatever your astrophotography style, the large size of the resulting images give you the freedom and flexibility to zoom in and take a closer look at regions of interest with the level of detail you’d expect from your main target.

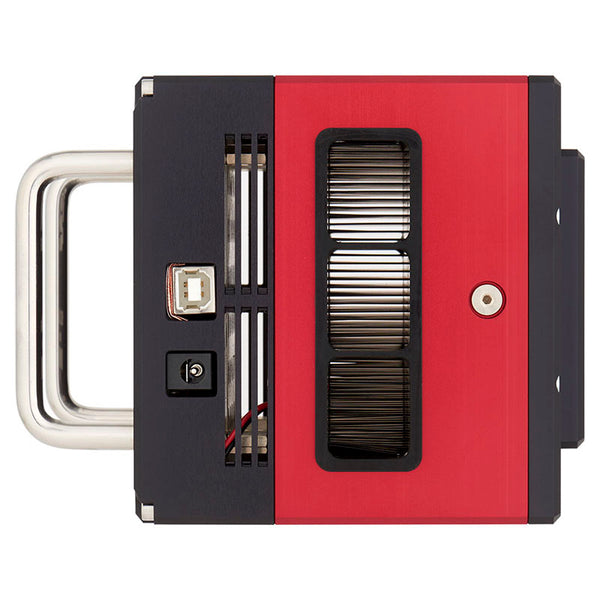

    Atik 16200 Camera Body Highlights

    The full frame, APS-H sized sensor is housed in a sealed chamber that has been argon-purged to keep moisture and dust particles out. Inside the 16200 camera body is a dual-stage Peltier and a powerful heatsink for amazing cooling performance. With a typical delta of -45C and a max of -50ºC, you'll enjoy low noise results even when imaging on warm summer nights.

    Atik's high performance electronics power the sensor, which has a read noise of only 9e-. A reimagined blade shutter is a design change for the 16200, which will provide consistent and reliable results for many years to come.









    Supplier SKU

    ATK0155

    What's Included

    • Atik 16200 APS-H Color CCD Camera
    • 2" Adapter
    • 10' USB Cable
    • 6' Car Lighter Plug
    • CD-ROM with Drivers, Software, and User Manual (PDF)
    • Quickstart Guide

  • Dimensions & Specifications

    • Imaging Camera Series: Atik 16200
    • Sensor Type: ON-Semiconductor KAF-16200 color CCD
    • Horizontal Resolution: 4500 pixels
    • Vertical Resolution: 3600 pixels
    • Pixel Size: 6 µm square
    • CCD Architecture: Full Frame
    • ADC: 16-bit
    • Readout Noise: 9e- typical value
    • Gain Factor: 0.6e-/ADU
    • Full Well Capacity: ~40000e-
    • Dark Current: >0.25 electrons/sec @ 0°C
    • Interface: USB 2.0 high speed
    • Power: 12v DC 2.5A
    • Minimum Exposure: 200 ms
    • Maximum Exposure: Unlimited
    • Cooling: Thermoelectric set point with max ΔT=>-50°C (-45°C typical)
    • Backfocus: ±19.5 mm
    • Weight: 2.86 lbs.
    • Software Included: CD-ROM with ASCOM drivers; Artemis software; plugins to use Astroart and Maxim DL (sold separately) and user's manual (PDF)



    Documentation

    ON-Semi KAF-16200 DataSheet
    Atik 16200 Manual
    Artemis Capture Manual
