What's IncludedReflex sight, Mounting base
Don't hunt stars without it!
If you're searching for a TELRAD sight for your telescope, it must be because you either had one before or tried one at a local star party. Either way, the first time you used a TELRAD, you probably said to yourself, "I've just got to get one of these."
That’s what happened to us at TelescopesPlus.com. Once we tried a telescope equipped with TELRAD's amazing instrument, we said to ourselves, "Our customers really need this." (Then we quickly installed TELRAD sights on our own scopes.)

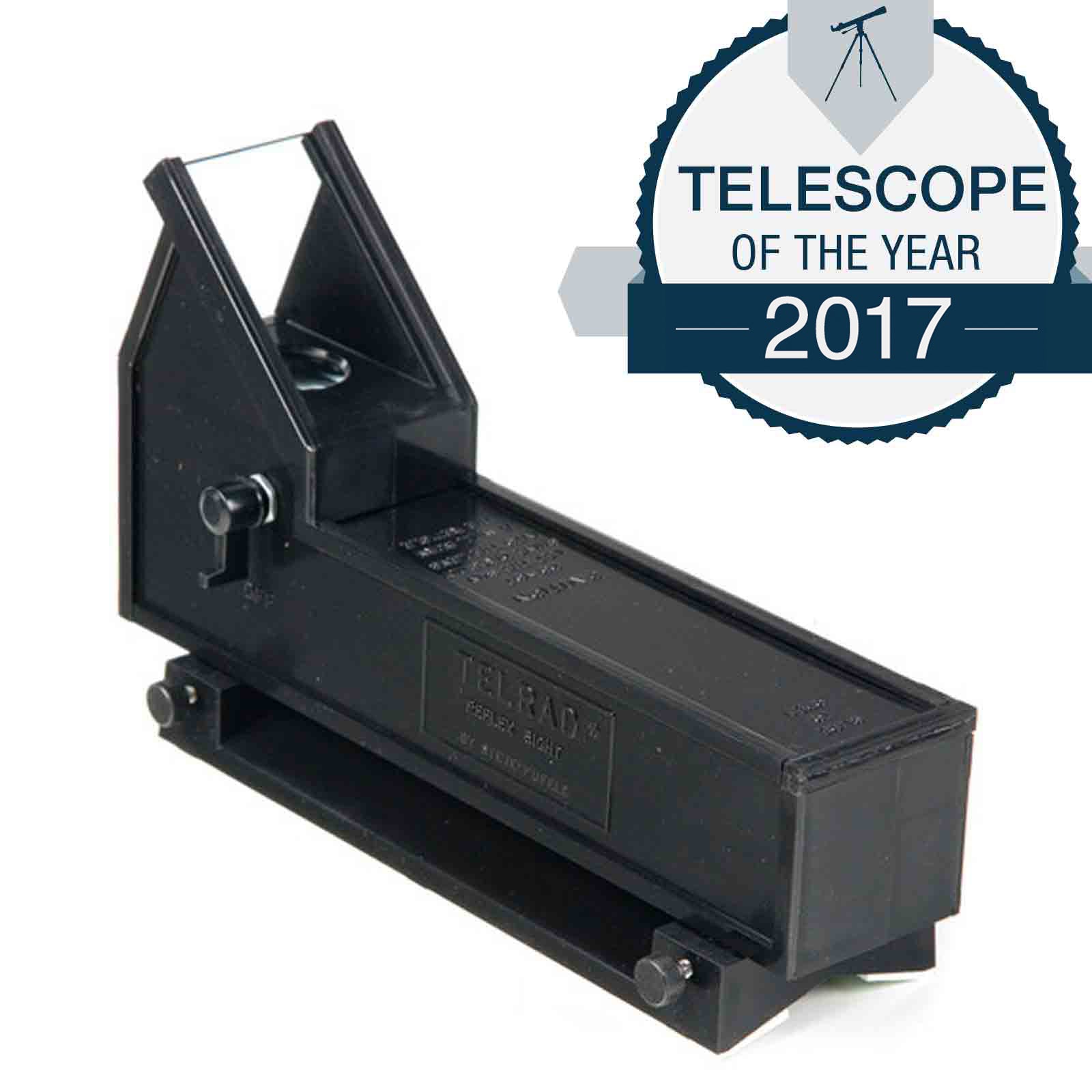

The TELRAD Reflex Sight is the bestselling non-magnifying star finder for celestial telescopes. Many astronomers simply will not own a telescope without one. Certainly any Dobsonian telescope owner should consider the TELRAD finder a "must-have" accessory, as it makes quick, easy work of locating and finding objects in the night sky.
How it works
The TELRAD projects three red rings spaced at 4 degrees, 2 degrees, and 1/2 degree in diameter. These rings are used to "star hop" to objects. If, for example, a galaxy is 10 degrees south of a star, you simply count two 4-degree jumps and one 2-degree jump, and you're there!
The TELRAD is a super-comfortable finder to use, because you don't need to look "into" it as you do a conventional finder. The projected red circles are clearly visible, whether you're looking 2 inches behind the sight or 2 feet behind it. And because the sight doesn't magnify, you get the widest-possible field of view, making locating and centering alignment stars on GoTo telescopes a breeze. Even better, your view is correctly oriented, so what you see will match what's shown on your star chart!
Connecting the TELRAD to your telescope is very simple. The included base can be permanently mounted with screws or with the included double-sided tape. The TELRAD reflex star finder sight uses two AA batteries for powering the illuminated rings. It's best used on large-aperture telescopes with bigger optical tubes, such as Dobsonians and Schmidt-Cassegrain telescopes.
- Window dimension: 1-5/8” x 1-3/8”
- Magnification: 1x
- Housing: Black finish, ABS plastic construction
- Retaining thumbscrews (two on the Base): 6-32, 1/2” long
- Length overall length: 8-3/8”
- Height overall (on Base): 5”
- Weight with Base and batteries: 10.9 oz.
- Batteries required: 2 AA
Telrad Sight w/Base
Available for shipment to the USA and Canada only.
Dimensions & Specifications
Telescope Accessories Series
Telrad Reflex Sight
We stand behind all the products we sell, and your satisfaction is our top priority. If you're not satisfied with the quality of your purchase, simply send the item back to us in its original packaging within 30 days of its delivery.
Default manufacturer warranty.
Return & Exchange Policy
At our site, returns are easy! You may return new, unused, and resalable items for a refund or exchange. Simply ensure that the item is returned in its original product packaging within 30 days of delivery.
Q1: Are their adjustment screws to align the sight on an object you wish to view through your telescope?
A: Yes, there are adjustment screws to align the TELRAD Reflex Sight with your optical tube.
Q2: Does this work on reflector or refractor telescopes?
A: TELRAD Telescope Reflex Sight will work with Reflector, Refractor or Catadioptric telescopes.
Q3: How long does Telrad Reflex Sight continuously run until the batteries run out?
A: The Telrad has an on/off switch on the side of the unit so it will not run continuously.
Q4: What is the best way to mount this finder to a new Celestron C8-S telescope OTA? Do I need to use tape, or does it attach with screws to existing holes? Can I keep the existing optical finder on the scope?
A: The Telrad Reflex Sight comes with mounting tape on its base. It also attaches with screws. There are holes drilled 4.5 inches apart in the base.
Q5: What is the distance between the mounting holes in the base?
A: The mounting holes in the Telrad's base are 4.5 inches apart.
