Atik 16200 APS-H Monochrome CCD Camera - ATK0154

No Ratings Yet

Write a Review

Item #ATIK-ATK0154

  • Your Price:
  • $3,745.00
  • + FREE Shipping

Leave us your email, and we’ll let you know when this item is back in stock.

  • With its 16.2 MP KAF-16200 full frame CCD sensor, this Atik 16200 APS-H CCD Camera is well-suited for large format, cooled CCD astrophotography
  • Upgraded to included an APS-H sized sensor as well as a new dual-stage Peltier cooling system, heat sink, blade shutter, and a cool lightweight casing
  • ON-Semi KAF-16200 monochrome CCD sensor features 6 µm square pixels in a 4500 x 3600 imaging array
  • Housed in a sealed argon-purged chamber, the KAF-16200 imaging sensor is protected from moisture and dust particle accumulation
  • All 4500 x 3600 photoactive pixels provide anti-blooming protection
Questions? Let our experts help!
  • Description

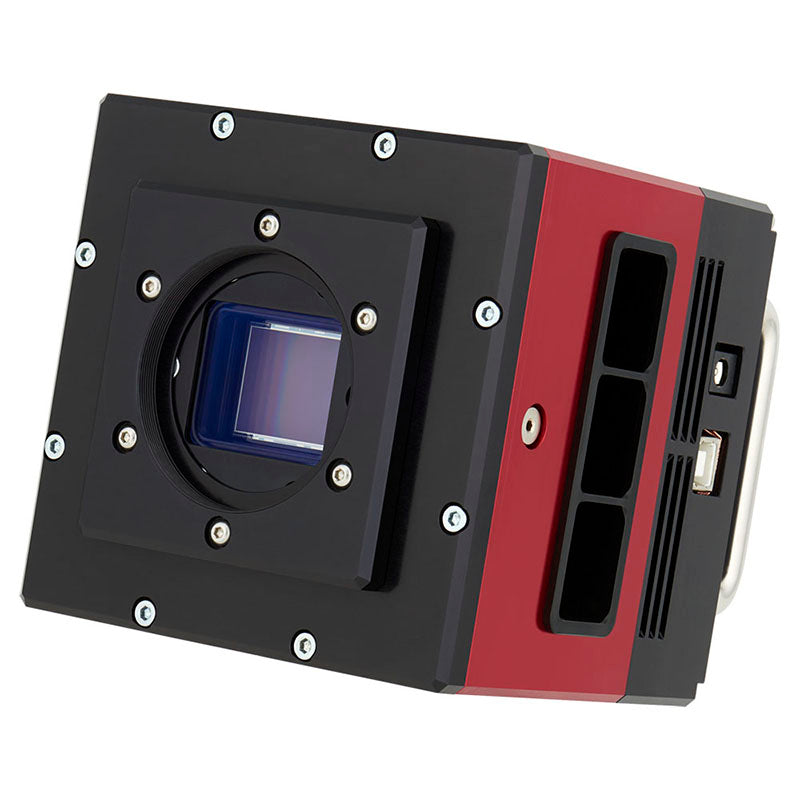

    Atik 16200 APS-H Sized Monochrome CCD Camera

    The Atik 16200 Imaging Camera features the KAF-16200 Color sensor, which offers a large 35mm diagonal and 6 µm pixels to make this camera a great match for a wide range of telescopes. However, this amazing APS-H-sized sensor is not the only upgrade to the Atik 16200, it has a whole new body, too. Improvements include a new dual-stage Peltier cooling system, heat sink, blade shutter, and a cool lightweight casing that will serve you well.

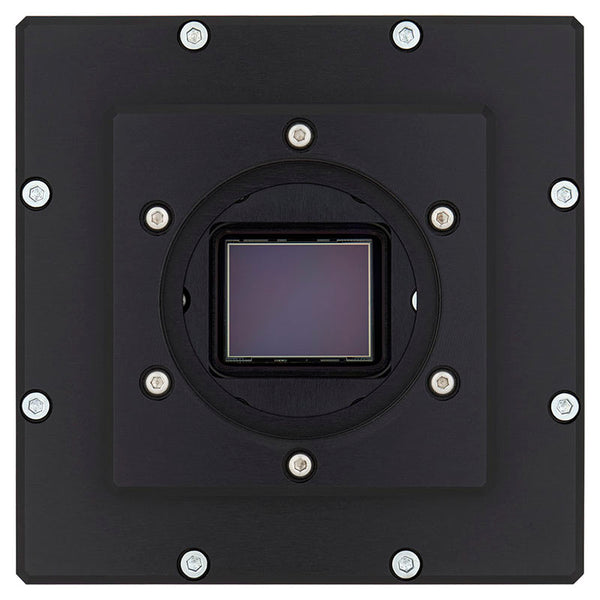

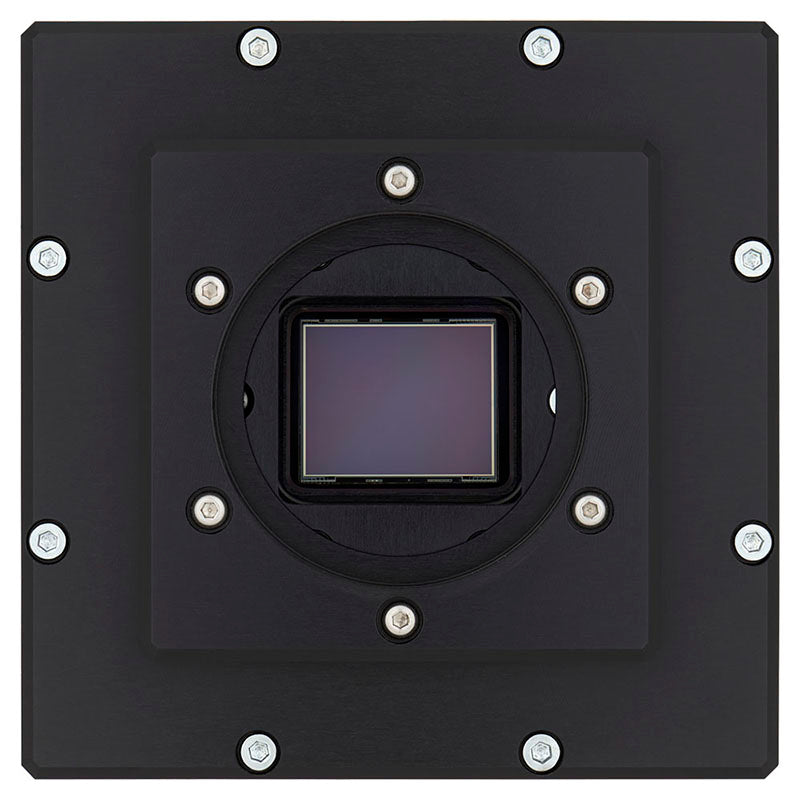

    KAF-16200 Full Frame APS-H CCD Sensor

    The ON-Semi KAF−16200 is a single output, high performance CCD image sensor with 4500 (H) x 3600 (V) photoactive pixels. Each pixel contains anti−blooming protection by means of a lateral overflow drain, thereby preventing image corruption during high light level conditions, and microlenses are added for improved sensitivity. The 16200 sensor utilizes a transparent gate electrode to improve sensitivity compared to the use of a standard front side illuminated polysilicon electrode.

    The full frame KAF-16200 has a large 35mm diagonal, and can be used with a filter wheel that supports 2" filters. The large sensor size and generous 6 µm pixels makes the Atik 16200 suitable for a wide range of telescopes, whether you are using a fast scope to capture wide field celestial views, or telescopes with longer focal lengths to image the intricate details on even the smallest and faintest of objects. Whatever your astrophotography style, the large size of the resulting images give you the freedom and flexibility to zoom in and take a closer look at regions of interest with the level of detail you’d expect from your main target.

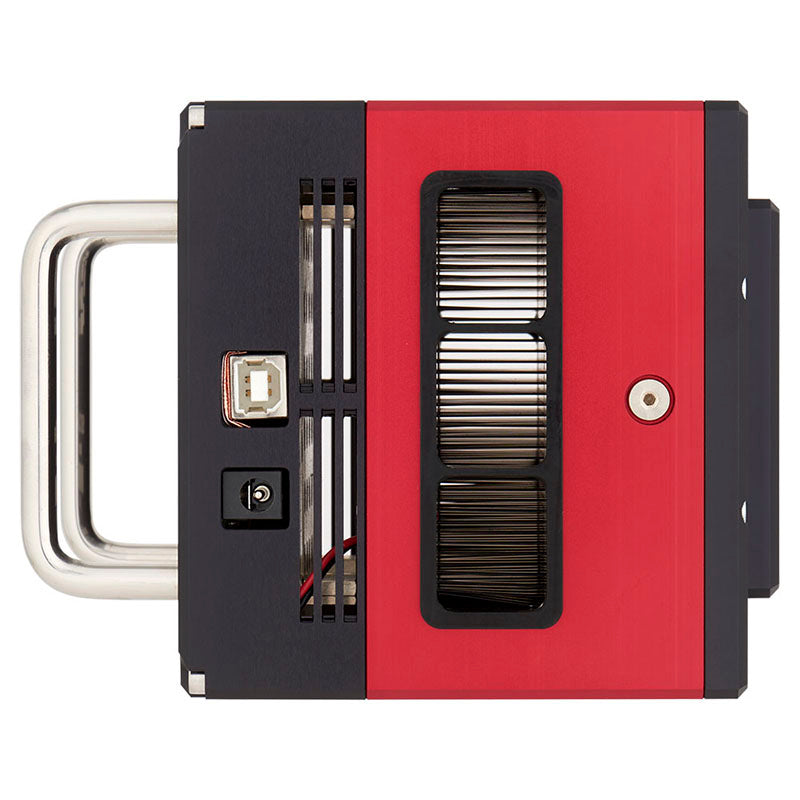

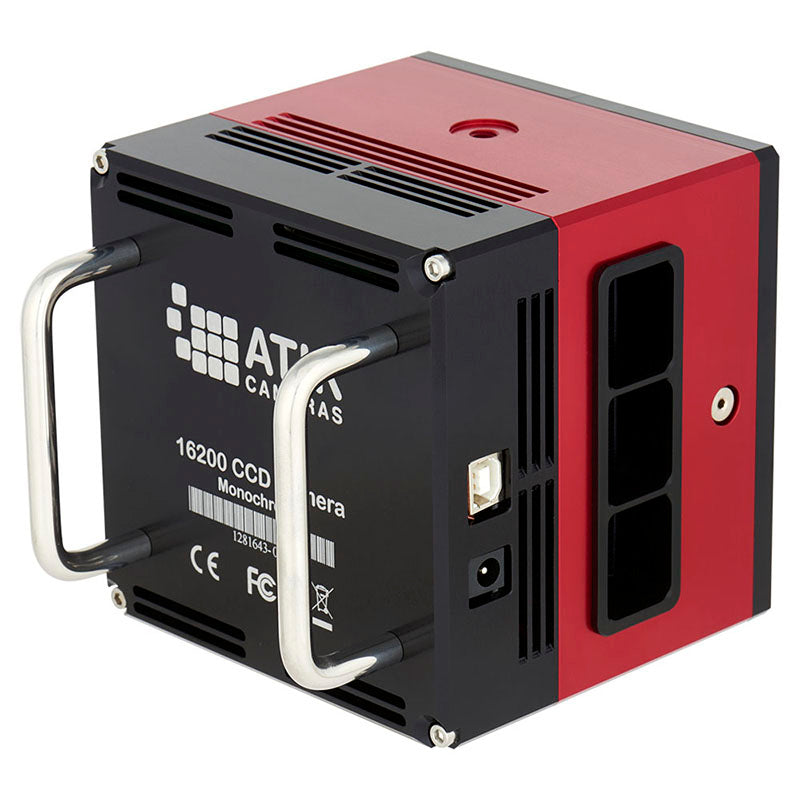

    Atik 16200 Camera Body Highlights

    The full frame, APS-H sized sensor is housed in a sealed chamber that has been argon-purged to keep moisture and dust particles out. Inside the 16200 camera body is a dual-stage Peltier and a powerful heatsink for amazing cooling performance. With a typical delta of -45ºC and a max of -50ºC, you'll enjoy low noise results even when imaging on warm summer nights.

    Atik's high performance electronics power the sensor, which has a read noise of only 9e-. A reimagined blade shutter is a design change for the 16200, which will provide consistent and reliable results for many years to come.









    Supplier SKU

    ATK0154

    What's Included

    • Atik 16200 APS-H Monochrome CCD Camera
    • 2" Adapter
    • 10' USB Cable
    • 6' Car Lighter Plug
    • CD-ROM with Drivers, Software, and User Manual (PDF)
    • Quickstart Guide

  • Dimensions & Specifications

    • Imaging Camera Series: Atik 16200
    • Sensor Type: ON-Semiconductor KAF-16200 monochrome CCD
    • Horizontal Resolution: 4500 pixels
    • Vertical Resolution: 3600 pixels
    • Pixel Size: 6 µm square
    • CCD Architecture: Full Frame
    • ADC: 16-bit
    • Readout Noise: 9e- typical value
    • Gain Factor: 0.6e-/ADU
    • Full Well Capacity: ~40000e-
    • Dark Current: >0.25 electrons/sec @ 0°C
    • Interface: USB 2.0 high speed
    • Power: 12v DC 2.5A
    • Minimum Exposure: 200 ms
    • Maximum Exposure: Unlimited
    • Cooling: Thermoelectric set point with max ΔT=>-50°C (-45°C typical)
    • Backfocus: ±19.5 mm
    • Weight: 2.86 lbs.
    • Software Included: CD-ROM with ASCOM drivers; Artemis software; plugins to use Astroart and Maxim DL (sold separately) and user's manual (PDF)



    Documentation

    ON-Semi KAF-16200 DataSheet
    Atik 16200 Manual
    Artemis Capture Manual
