Atik 414EX Color CCD Camera - ATK0137

No Ratings Yet

Write a Review

Item #ATIK-ATK0137

  • Your Price:
  • $1,495.00
  • + FREE Shipping

Leave us your email, and we’ll let you know when this item is back in stock.

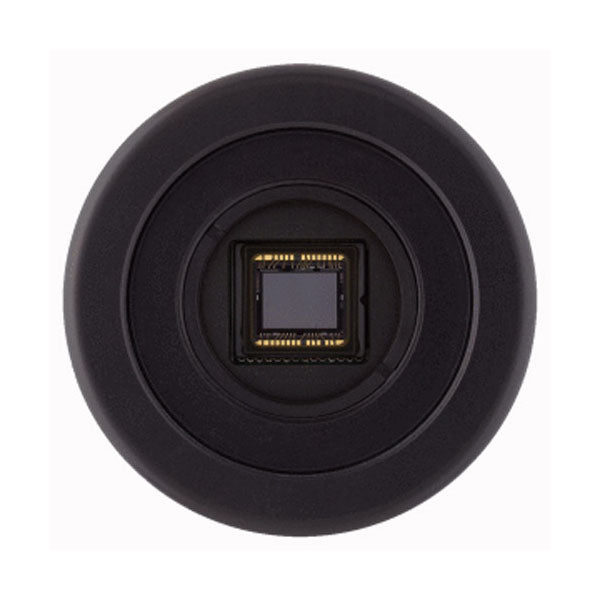

  • The Atik 414EX Color CCD Camera includes the Sony 1.45 MP ICX825 sensor with EXview HAD CCD II™ technology which, when combined with the large 6.45 µm pixel size, produces the most highly sensitive camera in its price range
  • This camera is ideal for astrophotography aficionados with a restricted budget
  • Offers regulated cooling down to greater than 30ºC below ambient
  • The narrow body of Atik 4 Series cameras like the 414EX means they can be used with Hyperstar or Fastar systems without obstruction, even on the 6" model
Questions? Let our experts help!
  • Description

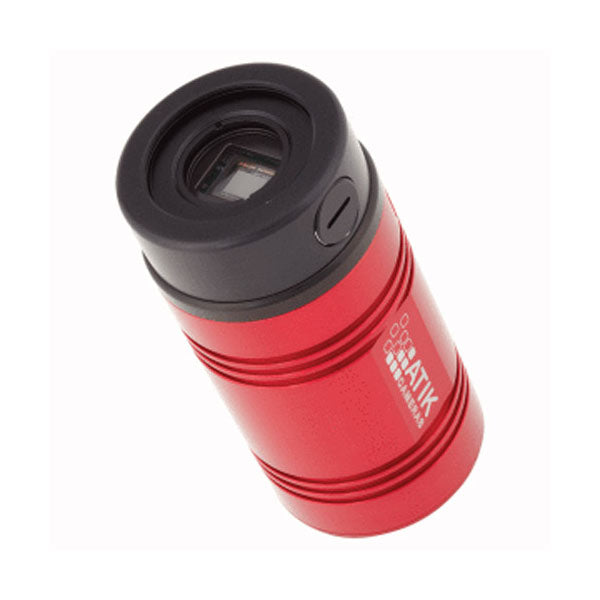

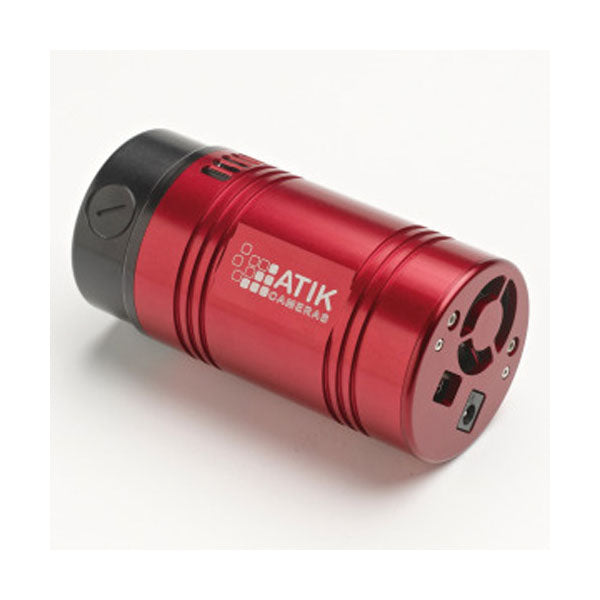

    Atik 414EX Color CCD Camera with Sony ICX825 Progressive Scan Sensor

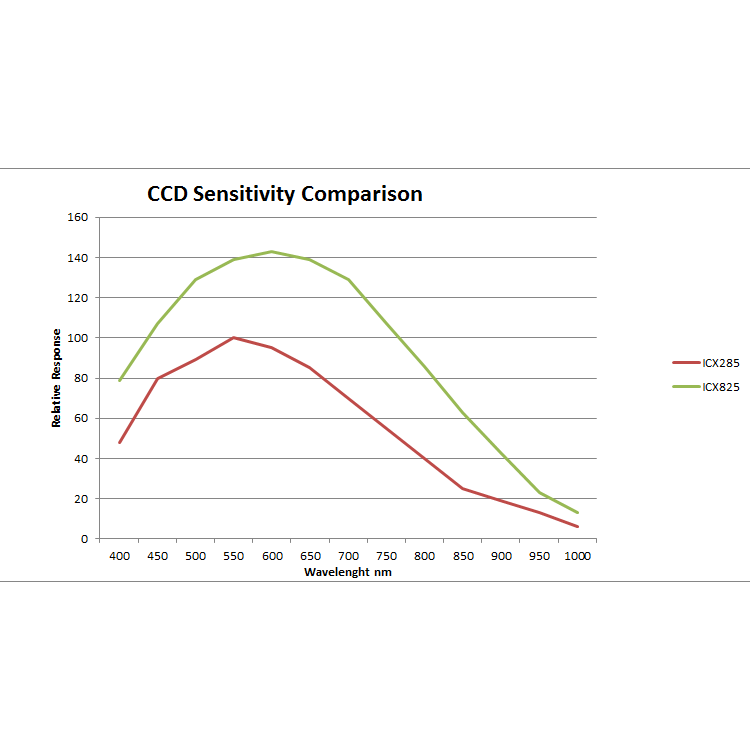

    The Atik 414EX CCD camera follows in the footsteps of the Atik 314L+, one of the best cameras available for astrophotography. It features the brand new Sony ICX825 1.45 megapixel sensor, the much awaited successor to the venerable ICX285. The Atik 414EX also features the same EXview HAD CCD II™ technology that is used on the Atik 428EX, 460EX and 490EX, which combined with the larger pixel size, makes it sensitive beyond anything previously seen in this price range. Compared with the Atik 314L+ at 650nm, the 414EX is 60% more sensitive. In fact, the Atik 414EX is even more sensitive than the already spectacular 460EX, making it the perfect camera for the enthusiast with a limited budget. Check out the sensitivity comparison chart, located in the images section, to see the striking difference between the ICX285 and ICX825 sensors.

    Sensor sensitivity is critical, but the 414EX offers other features that are also important when it comes to choosing a CCD camera. The Atik 414EX is can easily achieve over 30ºC below ambient, and the cooling is regulated, which means that your image calibration will be consistent. And speaking of calibration, for most applications, the camera has such a low dark noise, that dark frames are an option rather than a requirement!

    The Atik 414EX’s narrow footprint means that it can be used on Fastar/Hyperstar configurations with zero obstruction, even on the 6″ version. Low weight (less than one pound) also keeps the stress on the corrector plate to a bare minimum. The Atik 414EX is a truly impressive camera, and will bring you joy for many years to come.



    Atik 414EX CCD Camera Requirements

    • Pentium III PC with 128MB RAM
    • Windows XP/Vista/Win7/Win8 (not RT)
    • CD-ROM drive
    • USB 2.0 port







    Supplier SKU

    ATK0137

    What's Included

    • Atik 414EX Color CCD Camera with 1.25" Adapter
    • 10 ft. USB Cable
    • 6 ft. Battery Power Connector
    • CD-ROM with Drivers, Software, and User's Manual (PDF)
    • Paper Quickstart Guide

  • Dimensions & Specifications

    • Imaging Camera Series: Atik 414EX
    • Sensor Type: Sony ICX825 color CCD
    • Pixel Array: 1392 x 1040
    • Pixel Size: 6.45 µm square
    • CCD Architecture: Interline
    • ADC: 16-bit
    • Scanning Method: Progressive Scan
    • Readout Noise: 4e- typical value
    • Gain Factor: 0.28e-/ADU
    • Full Well Capacity: ~18000e-
    • Dark Current: ~0.001 electrons per sec at -10°C

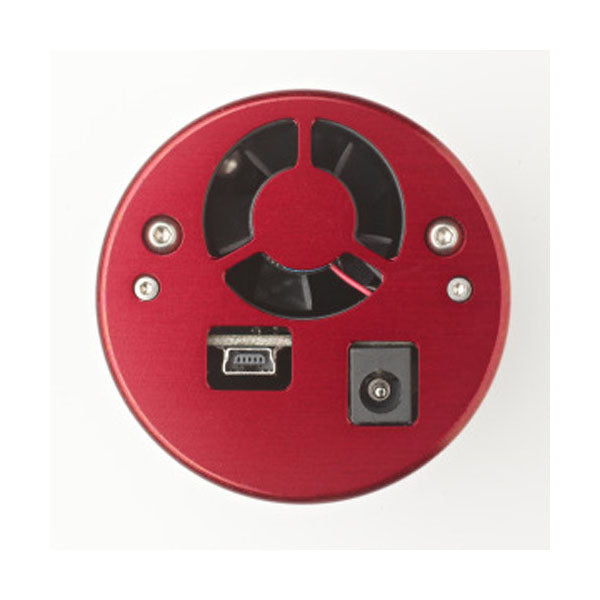

    • Interface: Mini-USB 2.0 high speed
    • Power: 12v DC 1A
    • Minimum Exposure: 0.001 seconds
    • Maximum Exposure: Unlimited
    • Cooling: Thermoelectric set point with max ΔT=>-30°C
    • Backfocus: 13mm
    • Software Included: Artemis Capture & various plug-ins to use with Astroart or Maxim DL (sold separately)
    • Weight: 14 oz.



    Documentation

    Atik Series 4 Manual
    Artemis Capture Manual
    Mechanical Drawing
