Atik 414EX Monochrome CCD Camera - ATK0136

No Ratings Yet

Write a Review

Item #ATIK-ATK0136

  • Your Price:
  • $1,495.00
  • + FREE Shipping

Leave us your email, and we’ll let you know when this item is back in stock.

  • With its large 6.45 µm pixel size and EXview HAD CCD II™ technology, the 1.45 MP ICX825 sensor from Sony gives this Atik 414EX Monochrome CCD Camera the highest sensitivity of any camera available for a similar price
  • Optimally suited for astro-imagers on a tight budget
  • Provides regulated cooling down to under -30ºC below ambient
  • The Atik 414EX, as with all Atik 4 Series cameras, features a narrow body that allows compatibility with Hyperstar or Fastar systems with no obstruction, even on the 6" version
Questions? Let our experts help!
  • Description

    Atik 414EX Monochrome CCD Camera with Sony ICX825 Progressive Scan Sensor

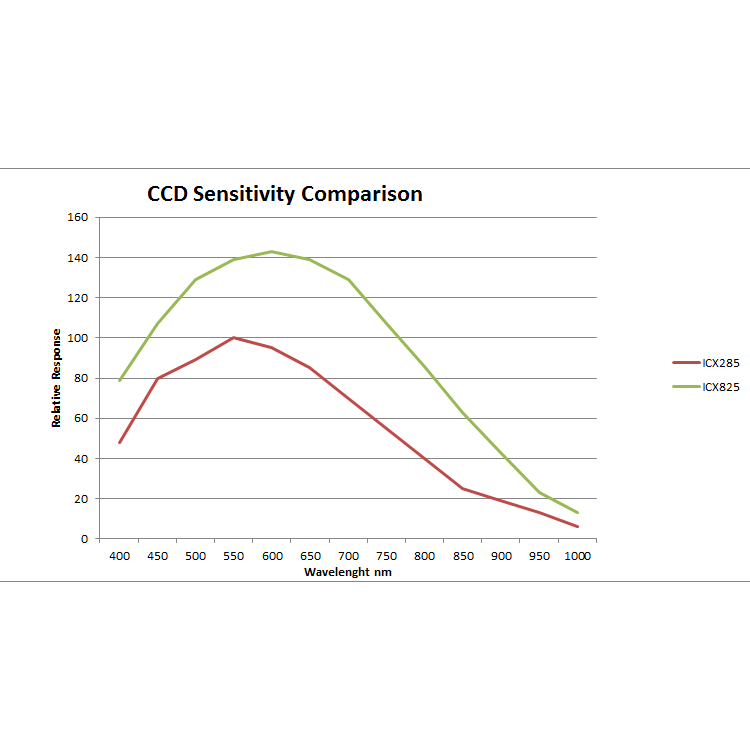

    The Atik 414EX CCD camera follows on the footsteps of the Atik 314L+, one of the best cameras available for astrophotography. It features the brand new Sony ICX825 1.45 megapixel sensor, the much awaited successor to the venerable ICX285. The Atik 414 EX also features the same EXview HAD CCD II™ technology that is used on the Atik 428EX, 460EX and 490EX, which combined with the larger pixel size, makes it sensitive beyond anything previously seen in this price range. Compared with the Atik 314L+ at 650nm, the 414EX is 60% more sensitive. In fact, the Atik 414EX is even more sensitive than the already spectacular 460EX, making it the perfect camera for the enthusiast with a limited budget. Check out the sensitivity comparison chart, located in the images section, to see the striking difference between the ICX285 and ICX825 sensors.

    Sensor sensitivity is critical, but the 414EX offers other features that are also important when it comes to choosing a CCD camera. The Atik 414EX is can easily achieve over 30ºC below ambient, and the cooling is regulated, which means that your image calibration will be consistent. And speaking of calibration, for most applications, the camera has such a low dark noise, that dark frames are an option rather than a requirement!

    The Atik 414EX’s narrow footprint means that it can be used on Fastar/Hyperstar configurations with zero obstruction, even on the 6″ version. Low weight (less than one pound) also keeps the stress on the corrector plate to a bare minimum. The Atik 414EX is a truly impressive camera, and will bring you joy for many years to come.



    Atik 414EX CCD Camera Requirements

    • Pentium III PC with 128MB RAM
    • Windows XP/Vista/Win7/Win8 (not RT)
    • CD-ROM drive
    • USB 2.0 port













      Supplier SKU

      ATK0136

      What's Included

      • Atik 414EX Monochrome CCD Camera with 1.25" Adapter
      • 10 ft. USB Cable
      • 6 ft. Battery Power Connector
      • CD-ROM with Drivers, Software, and User's Manual (PDF)
      • Paper Quickstart Guide

    • Dimensions & Specifications

      • Imaging Camera Series: Atik 414EX
      • Sensor Type: Sony ICX825 monochrome CCD
      • Pixel Array: 1392 x 1040
      • Pixel Size: 6.45 µm square
      • CCD Architecture: Interline
      • ADC: 16-bit
      • Scanning Method: Progressive Scan
      • Readout Noise: 4e- typical value
      • Gain Factor: 0.28e-/ADU
      • Full Well Capacity: ~18000e-
      • Dark Current: ~0.001 electrons per sec at -10°C
      • Interface: Mini-USB 2.0 high speed
      • Power: 12v DC 1A
      • Minimum Exposure: 0.001 seconds
      • Maximum Exposure: Unlimited
      • Cooling: Thermoelectric set point with max ΔT=>-30°C
      • Backfocus: 13mm
      • Software Included: Artemis Capture & various plug-ins to use with Astroart or Maxim DL (sold separately)
      • Weight: 14 oz.



      Documentation

      Atik Series 4 Manual
      Artemis Capture Manual
      Mechanical Drawing
