Atik 428EX Color CCD Camera - ATK0097

No Ratings Yet

Write a Review

Item #ATIK-ATK0097

  • Your Price:
  • $1,860.00
  • + FREE Shipping

Leave us your email, and we’ll let you know when this item is back in stock.

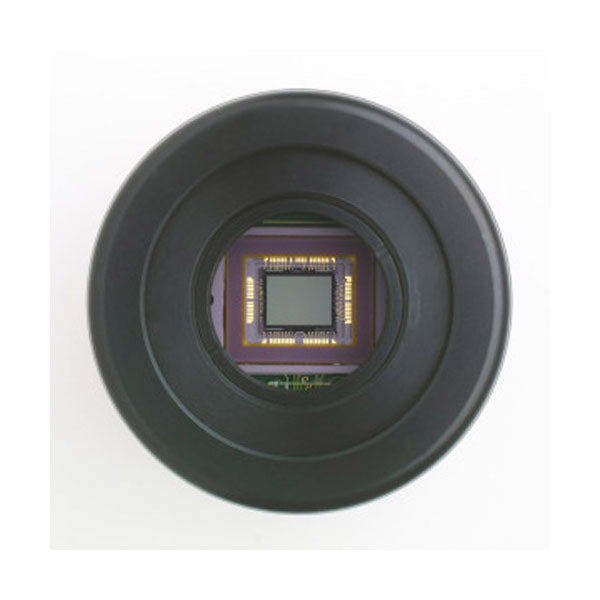

  • The Atik 428EX Color CCD Camera is the first to use the cutting-edge 2.8 MP ICX674 sensor with EXview technology from Sony
  • The Sony ICX674 sensor features 4.54 µm square pixels in a 1932 x 1452 array for high resolution imaging
  • Offers regulated cooling down to -30ºC below ambient maximum
  • The Atik 428EX has low noise electronics for high sensitivity and high quantum efficiency
Questions? Let our experts help!
  • Description

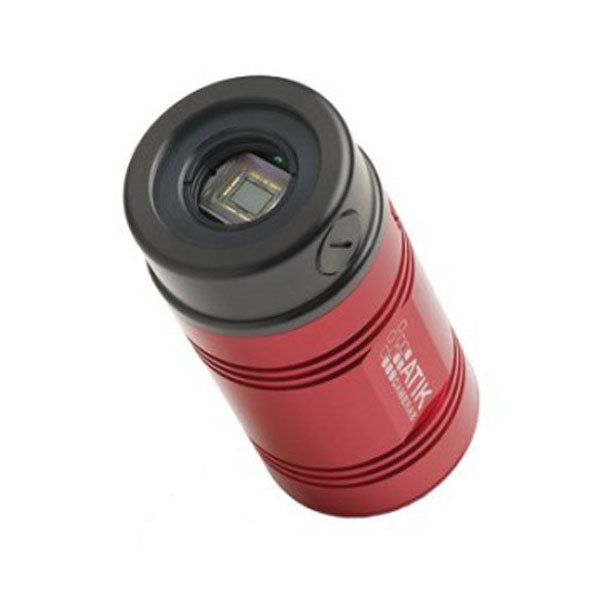

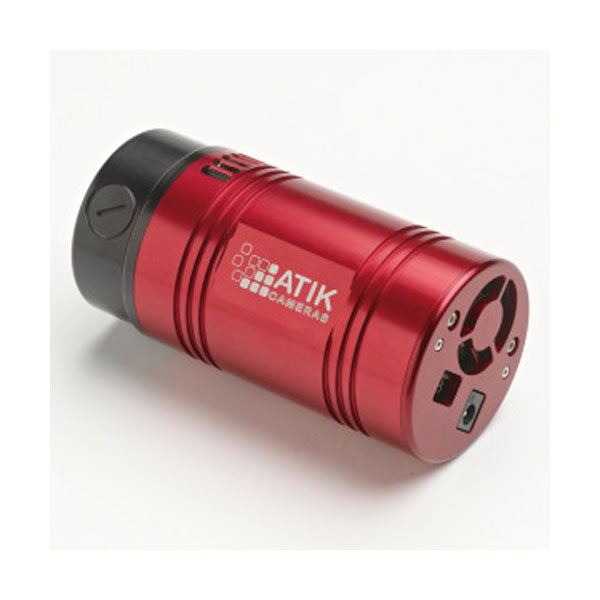

    Atik 428EX Color CCD Camera

    The Atik 428EX Color CCD Camera is a the first camera to employ Sony's state-of-the art 2.8 MP ICX674 sensor and is an ideal match to telescopes commonly used by amateurs. This camera has an amazing Quantum Efficiency, excellent thermal management, and very low noise due to the featured, latest generation EXview technology. The sensitivity of this camera makes it an ideal choice for deep-sky astrophotography and surpasses the forerunner ICX285.



    Featuring better cooling and a narrower body, the Atik 4-Series cameras are a development of the 3-Series cameras. Taking matching dark frames is a snap due to the benefits of set-point cooling on these cameras. The simple 12V power requirement also makes this camera efficient and easy to use during field operation. The Atik Series 4 are magnificent CCD cameras with impressive sensitivity, great cooling and have a narrow profile, making them great to use on modern telescopes such as Hyperstar/Fastar systems.



    With Quantum Efficiency in OIII, Ha and SII, the Atik 428EX is a perfect match for narrowband imaging and is one of the best cameras available for this challenging technique. Get more out of your imaging session with the advanced color mapping composition that can be done with the lower integration time, more data equals better data! No compromise regarding cooling performance or stability considering the Atik 428EX is one of the lightest cameras featuring the narrowest body in its class. Field sessions last longer with the cooler been engineered for low power use. The desiccant port is now easily accessible from the exterior.







    Supplier SKU

    ATK0097

    What's Included

    • Atik 428EX Color CCD Camera
    • 1.25" Adapter
    • 3 m USB Cable
    • 1.8 m Battery Power Connector
    • CD-ROM with Drivers, Software, and User's Manual (PDF)
    • Paper Quickstart Guide

  • Dimensions & Specifications

    • Imaging Camera Series: Atik 428EX
    • Sensor Type: Sony ICX674 color CCD
    • Sensor Dimensions: 10.972mm diagonal
    • Pixel Array: 1932 x 1452
    • Pixel Size: 4.54 µm x 4.54 µm
    • Cooling: Thermoelectric set point with max ΔT=-25°C
    • CCD Architecture: Frame Transfer
    • ADC: 16-Bit
    • Readout Noise: 5e- typical value
    • Gain Factor: 0.27e-/ADU
    • Full Well Capacity: ~17500e-
    • Dark Current: ~0.0002 electrons per sec at -10°
    • Interface: Mini-USB 2.0 High Speed
    • Power: 12v DC 1A
    • Minimum Exposure: 0.001 seconds
    • Maximum Exposure: Unlimited
    • Backfocus: 13mm
    • Weight: 14 oz.



    Documentation

    Atik Series 4 Manual
    Artemis Capture Manual
    Mechanical Drawing
