Atik 460EX Monochrome CCD Camera - ATK0100

No Ratings Yet

Write a Review

Item #ATIK-ATK0100

  • Your Price:
  • $2,628.00
  • + FREE Shipping

Leave us your email, and we’ll let you know when this item is back in stock.

  • This Atik 460EX Monochrome CCD Camera incorporates the Sony ICX694 EXview HAD sensor to make it an ideal fit for telescopes of all experience levels
  • Sony's ICX694 imaging sensor contains a 2750 x 2200 image array of 4.54 µm x 4.54 µm pixels
  • For deep-sky astrophotography applications, the Atik 460EX is one of the finest due to its unmatched versatility and superior sensitivity
  • Provides exceptional performance for both narrowband and LRGB procedures
  • The diagonal size of the Sony ICX694 sensor is sufficient for covering a wider swath of the night sky, while also small enough to allow the use of 1.25" filters with systems as fast as f/2
Questions? Let our experts help!
  • Description

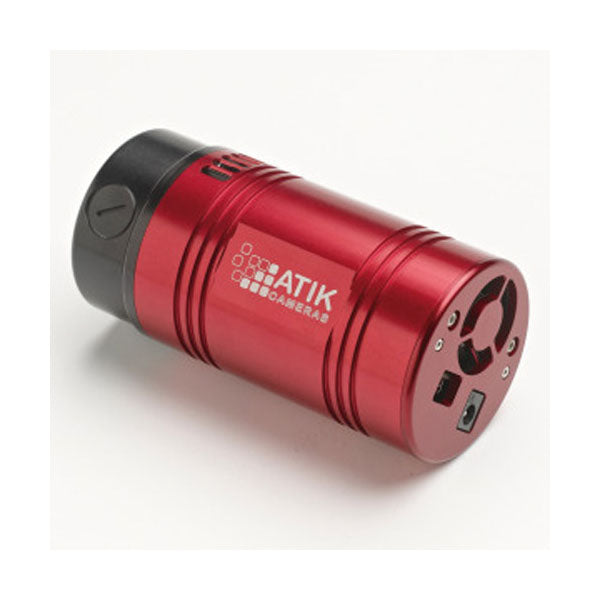

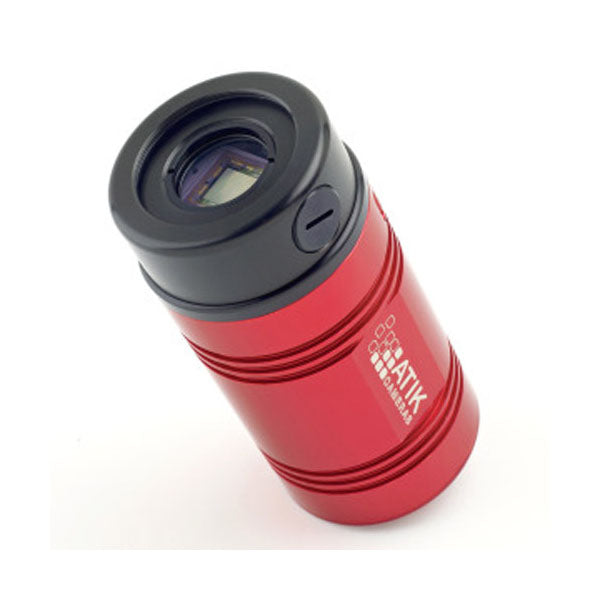

    Atik 460EX Monochrome CCD Camera

    The next step in astronomical CCD evolution featuring the latest generation Sony EXview HAD CCD II technology, the Atik 460EX is an outstanding instrument and one of the best cameras for deep-sky astrophotography. With Quantum Efficiency, excellent thermal management, and very low noise, the Atik 460EX is an ideal match to telescopes commonly used by amateurs, up to bigger SCTs and RCs.



    Featuring better cooling and a narrower body, the Atik 4-Series cameras are a development of the 3-Series cameras. Taking matching dark frames is a snap due to the benefits of set-point cooling on these cameras. The simple 12V power requirement also makes this camera efficient and easy to use during field operation. Atik Series 4s are magnificent CCD cameras with impressive sensitivity, great cooling and have a narrow profile, making them great to use on modern telescopes such as Hyperstar/Fastar systems.



    The Atik 460EX is the new norm for high performance. With superb sensitivity, the Atik 460EX enables impressive performance in both narrowband and LRGB techniques. Faint fuzzies are not so faint anymore and stay within reach of the amateur astronomer, even with smaller instruments. The Atik 460EX is one of the lightest cameras of its class featuring the narrowest body. However, these features do not compromise cooling performance or stability. In addition, the sensor diagonal is big enough to satisfy the need for bigger sky coverage, but small enough to enable the use of 1.25" filters, even with f/2 systems.



    Providing an intuitive and simple, yet powerful way to acquire images is the renowned Capture application included with the Atik 460EX that takes the stress out of imaging. Tools include image sequencer, focus assistance readout, guide camera control and integration with Atik filter wheels. There are plug-ins for Astroart, MaxIm DL, and CCDSoft if you require compatibility with other software, as well as a full ASCOM driver.



    Included with your Atik 460EX is a new image processing software by Atik called Dawn. Much like the Atik Cameras, Dawn was designed from the ground up to be powerful and easy to use. The great part about this software is its ability to enable a sequence of image-processing steps to be represented in the form of a pictorial work-flow. This can be created with a few mouse clicks and is executed very easily for repeatable and speedy results.









    Supplier SKU

    ATK0100

    What's Included

    • Atik 460EX Monochrome CCD Camera
    • 1.25" Adapter
    • 3 m USB Cable
    • 1.8 m Battery Power Connector
    • CD-ROM with Drivers, Software, and User's Manual (PDF)
    • Paper Quickstart Guide

  • Dimensions & Specifications

    • Imaging Camera Series: Atik 460EX

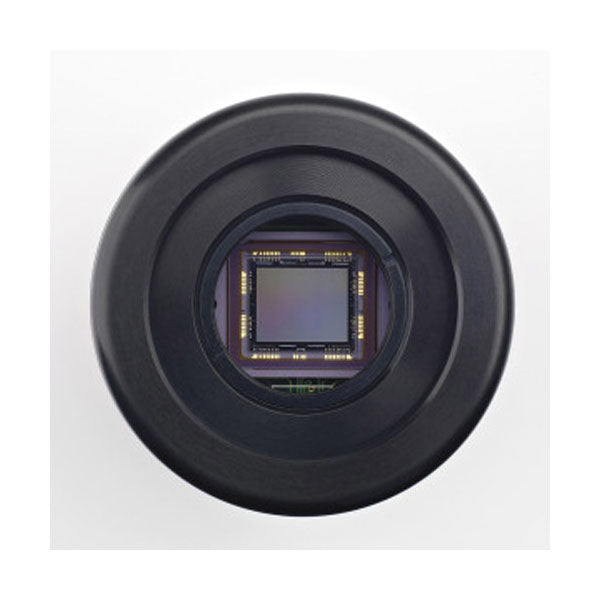

    • Sensor Model: Sony ICX694AQG monochrome CCD
    • Sensor Dimensions: 15.99mm diagonal
    • Pixel Array: 2750 x 2200
    • Pixel Size: 4.54 µm x 4.54 µm
    • Cooling: Termoelectric set point with max ΔT=-25°C
    • CCD Architecture: Interline
    • ADC: 16-Bit
    • Readout Noise: 5e- typical value
    • Gain Factor: 0.27e-/ADU
    • Full Well Capacity: ~18000e-
    • Dark Current: ~0.0004 electrons per sec at -10°

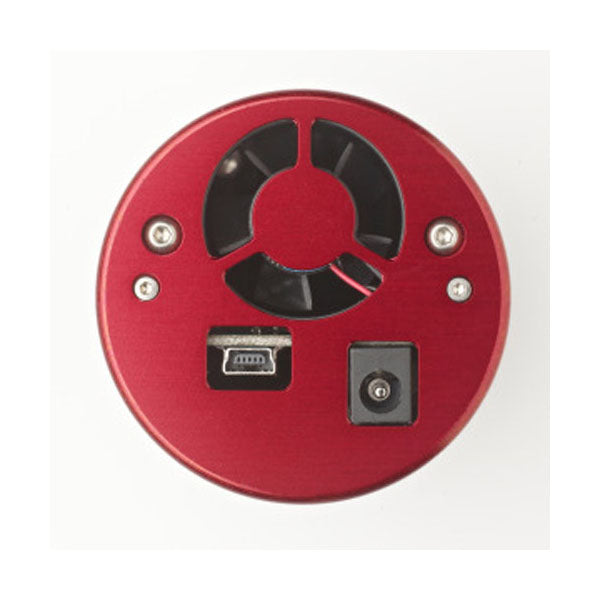

    • Interface: Mini-USB 2.0 High Speed
    • Power: 12v DC 1A
    • Minimum Exposure: 0.001 seconds
    • Maximum Exposure: Unlimited
    • Backfocus: 13mm
    • Weight: 14 oz.



    Documentation

    Atik 4 Series Manual
    Artemis Capture Manual
    Mechanical Drawing
