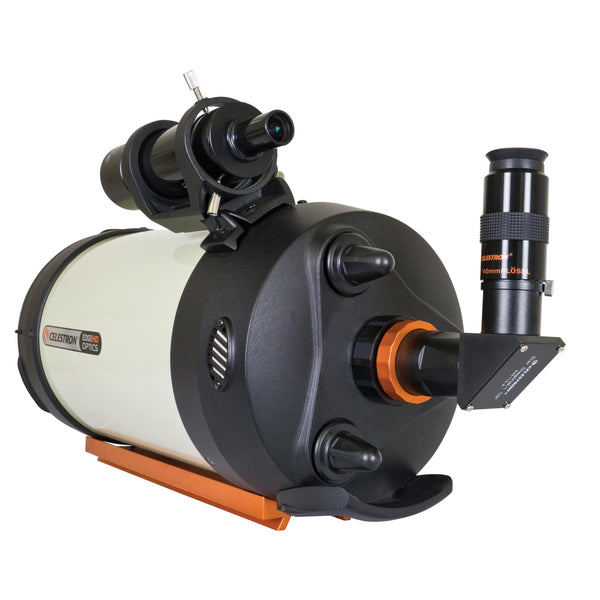

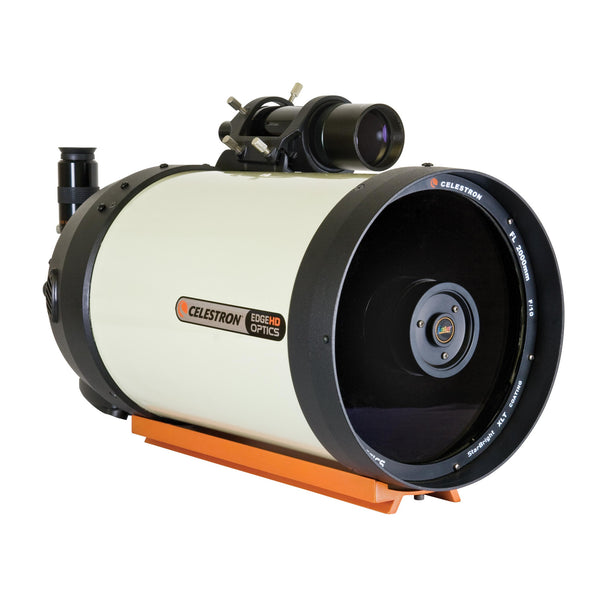

Celestron EdgeHD 14" - General Features
- 14" EdgeHD Optical Tube Assembly
- Aluminum Optical Tube
- Celestron's premium StarBright XLT coatings
- 3910mm focal length (f/11)
- 23mm Axiom - 2"

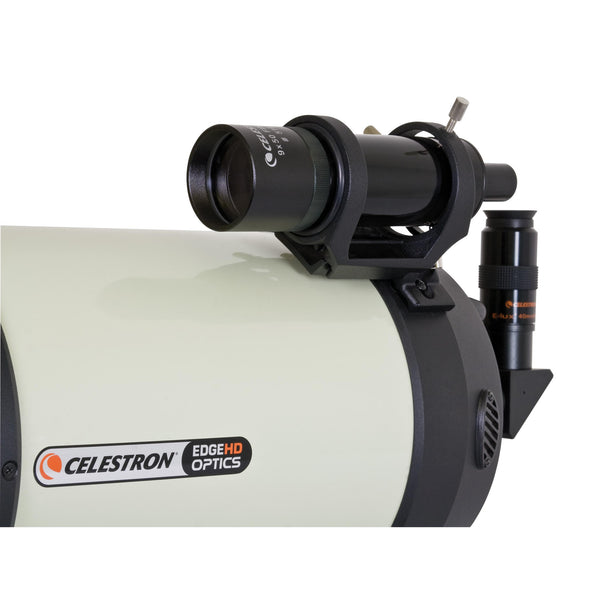

- 9x50 finderscope to help accurately find objects
- 2" diagonal provides more comfortable viewing position when observing objects that are high in the sky
- Mirror Support Knobs hold the mirror in place and reduces image shift during imaging.

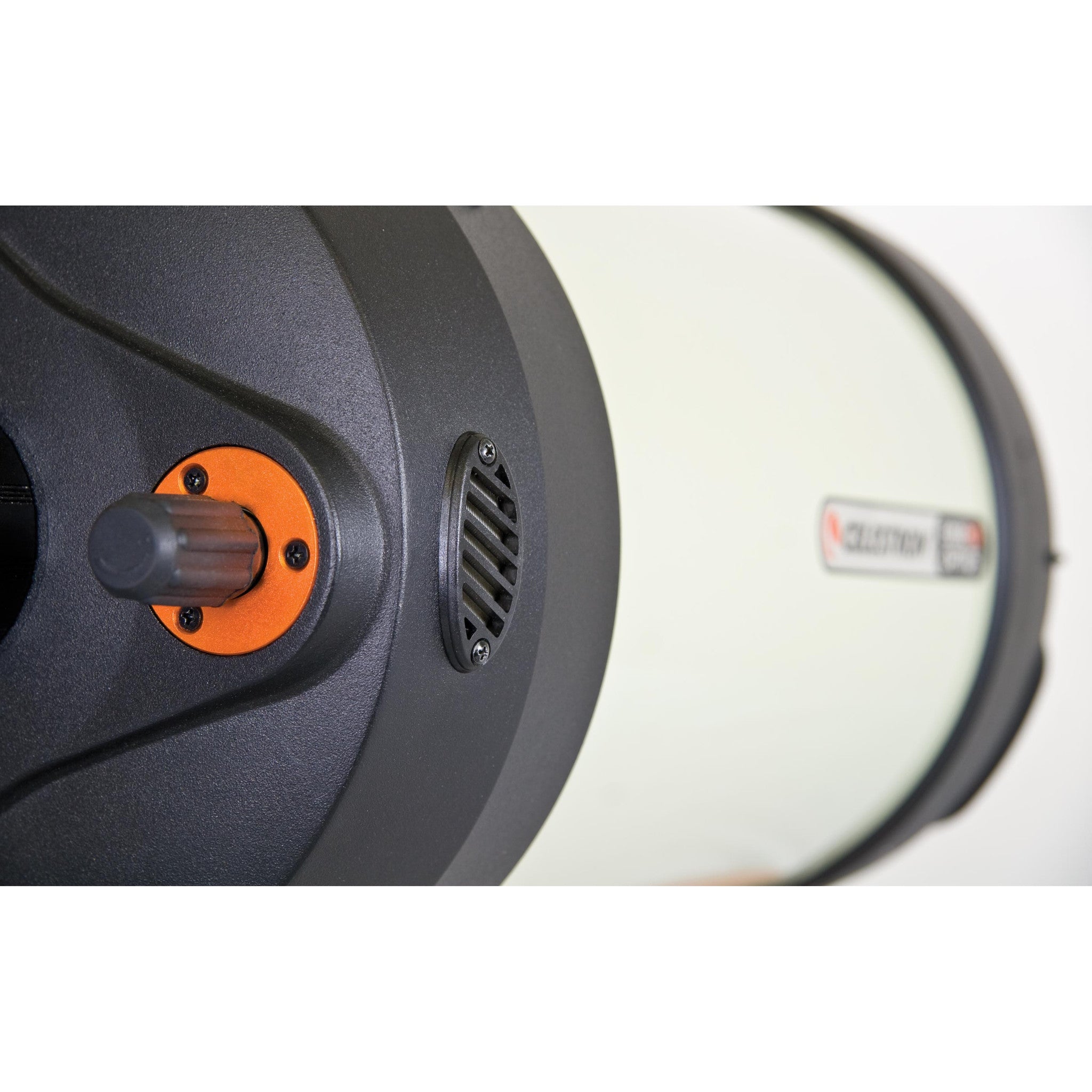

- Tube vents with integrated 60 micron mesh filter allowing hot air to be released from behind the primary mirror.
- Fastar Compatible optical tubes are equipped with a removable secondary mirror for fast f/2 ccd imaging
- Includes dovetail rail compatible with CGE mount
- Optical Design : Aplanatic Schmidt
- Aperture : 355.6 mm (14 in)
- Focal Length : 3910 mm (153.94 in)
- Focal Ratio : f/11
- Finderscope : 9x50
- Optical Tube : Aluminum
- Eyepiece 1 : 23 mm (0.91 in)
- Magnification 1 : 170 x
- Star Diagonal : 2" w/1.25" adapter
- Optical Coatings : StarBright / XLT
- Secondary Mirror Obstruction : 4.5 in (114.3 mm)
- Secondary Mirror Obstruction by Area : 10.3 %
- Secondary Mirror Obstruction by Diameter : 32.1 %
- Optical Tube Length : 31 in (787.4 mm)
- Optical Tube Weight : 46 lb (20.87 kg)
Available for shipment to the USA and Canada only.
Dimensions & Specifications
Objective Lens Size Code
Celestron Optical Tubes
For the Expert
DocumentationDownload Celestron Edge HD Telescope User Manual
