Celestron 36 cm Rowe-Ackermann Schmidt Astrograph OTA - 91077

No Ratings Yet

Write a Review

Item #CELE-91077

  • Your Price:
  • $13,999.00
  • + FREE Shipping

Leave us your email, and we’ll let you know when this item is back in stock.

  • Designed for professional applications such as space surveillance, this spectacularly fast, state-of-the-art f/2.2 optical system with 36 cm aperture is most beneficial when high resolution and wide view fields are necessary.

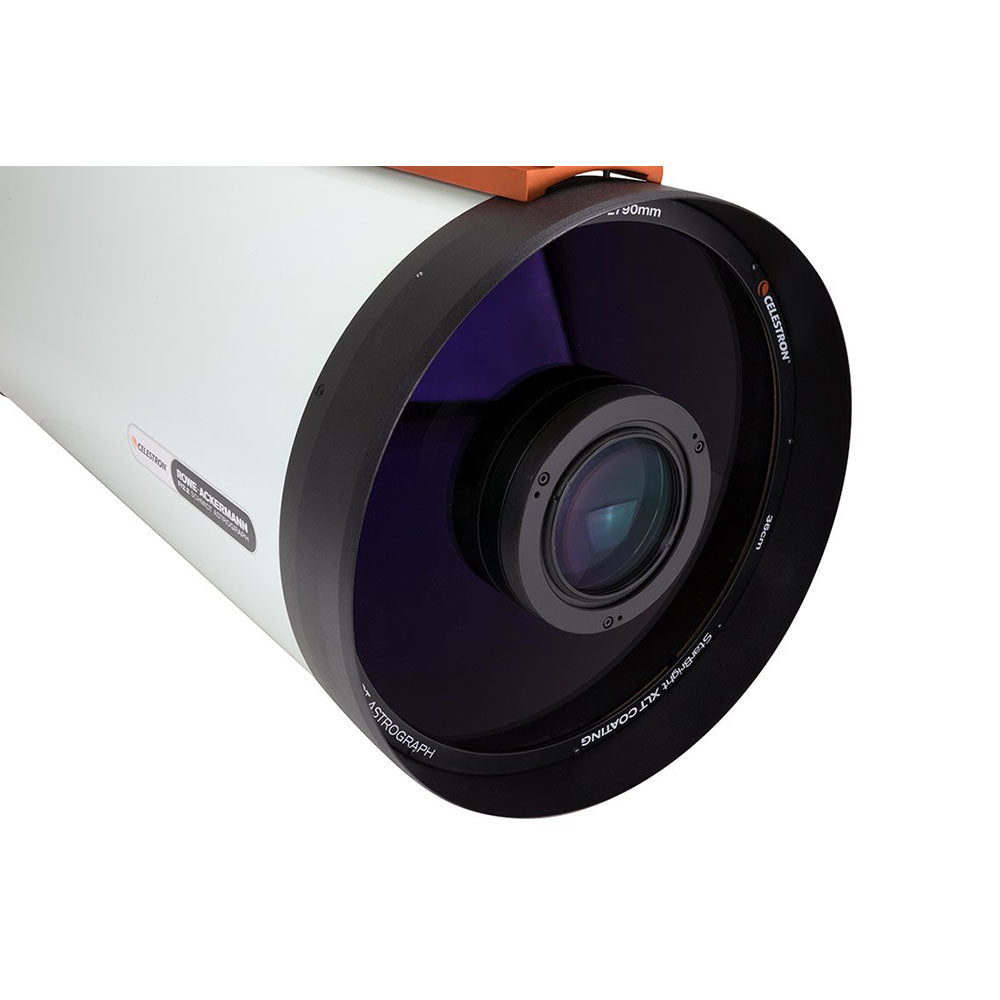

  • The 36 cm RASA lens group consists of 4 elements and utilizes extra-low dispersion (ED) glass for image results void of false color, coma, and field curvature making it an excellent option of astro-imaging as well.
  • Pinpoint stars are maintained to the extreme reaches of the biggest sensors available thanks to a 60 mm optimized image circle.
  • Enhanced signal detection results from extended spectral range taking advantage of a 700-900 nm range sensor response.
  • With a redesigned focusing system, focus shifting as well as other unwanted primary mirror movement is kept to a minimum for smoother, more stable focus.
Questions? Let our experts help!
  • Description

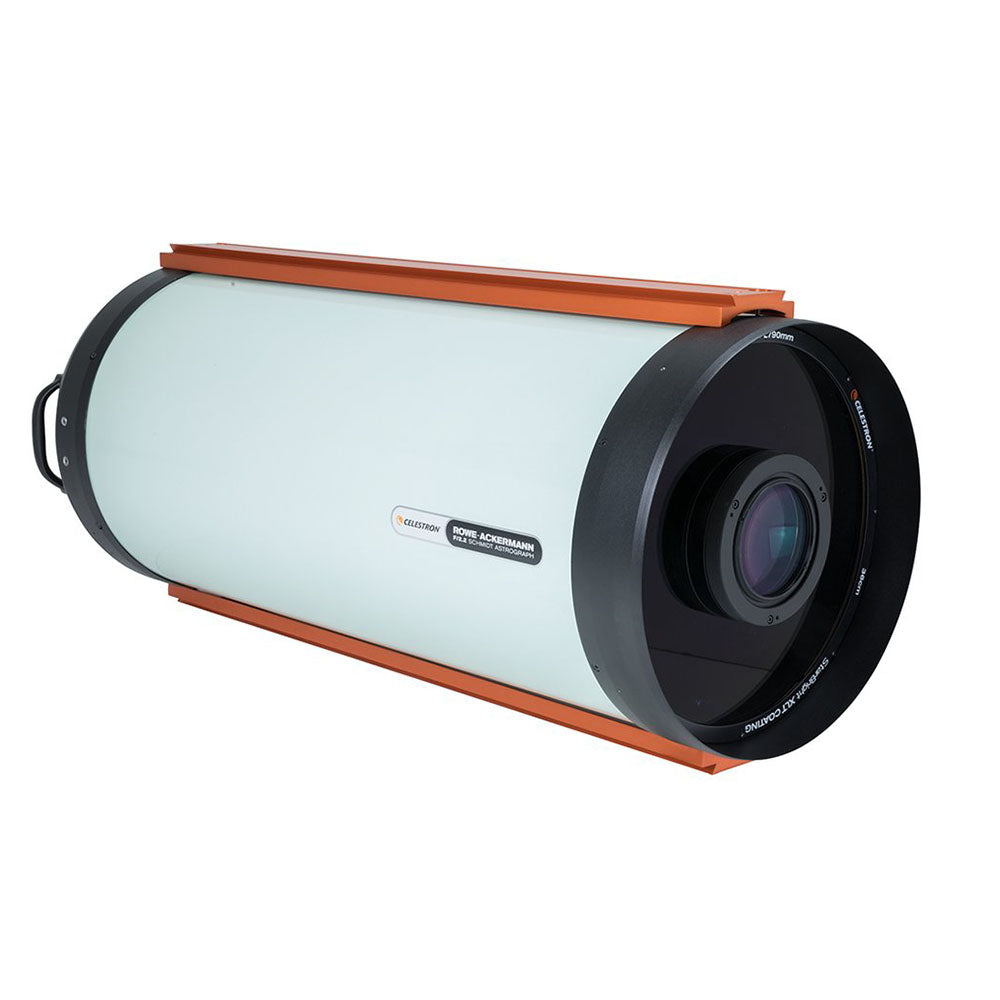

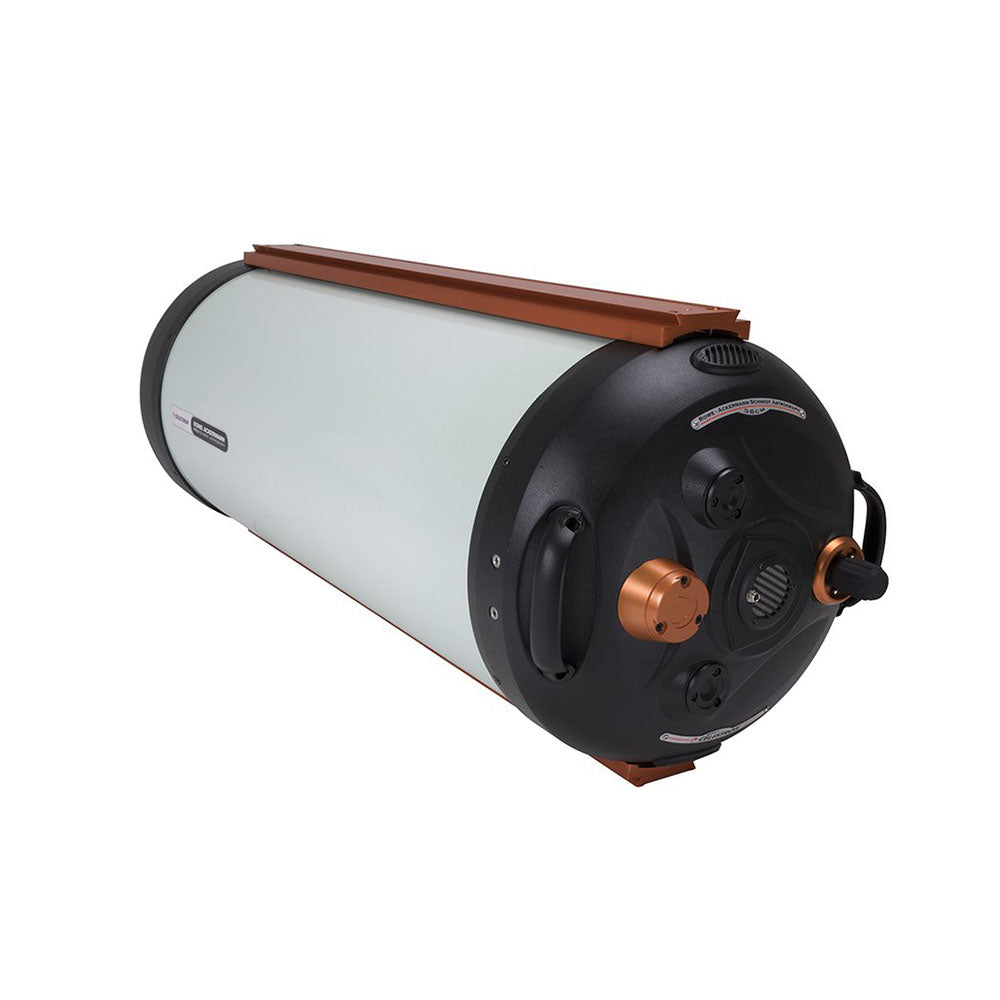

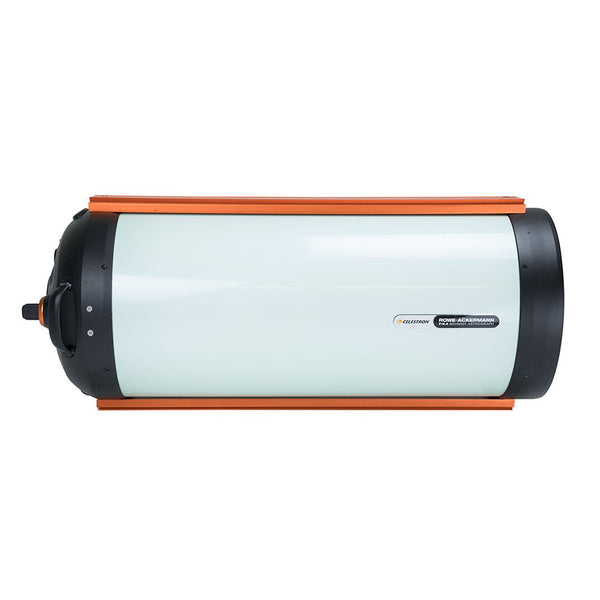

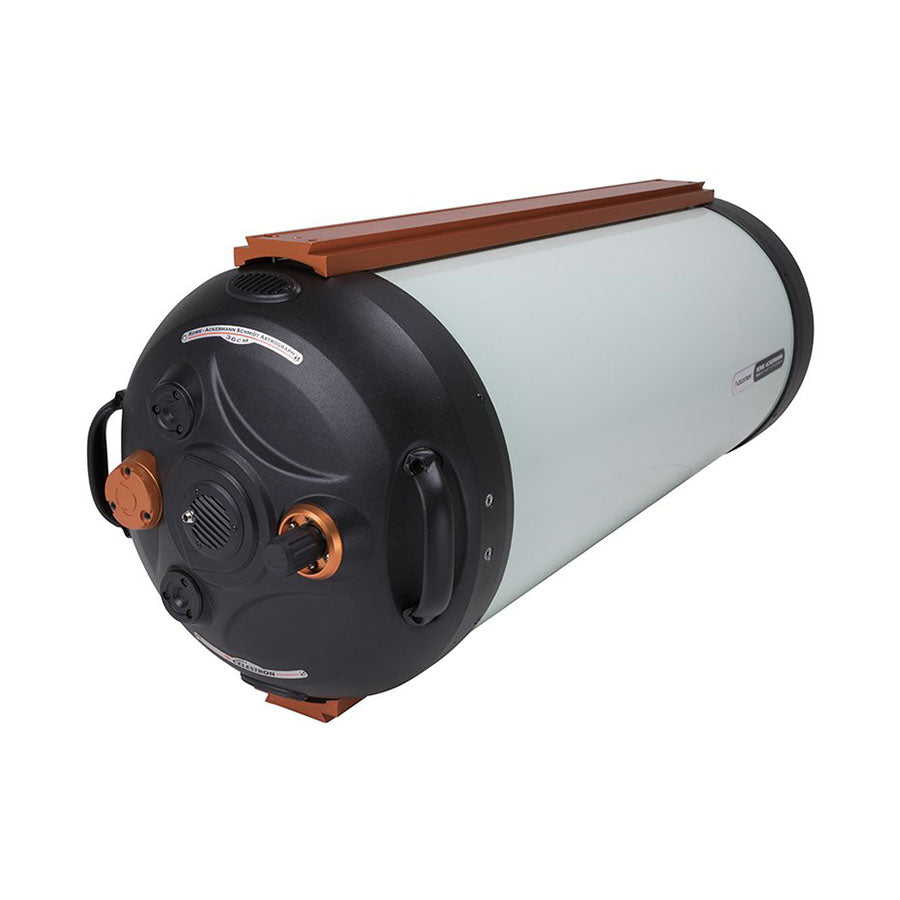

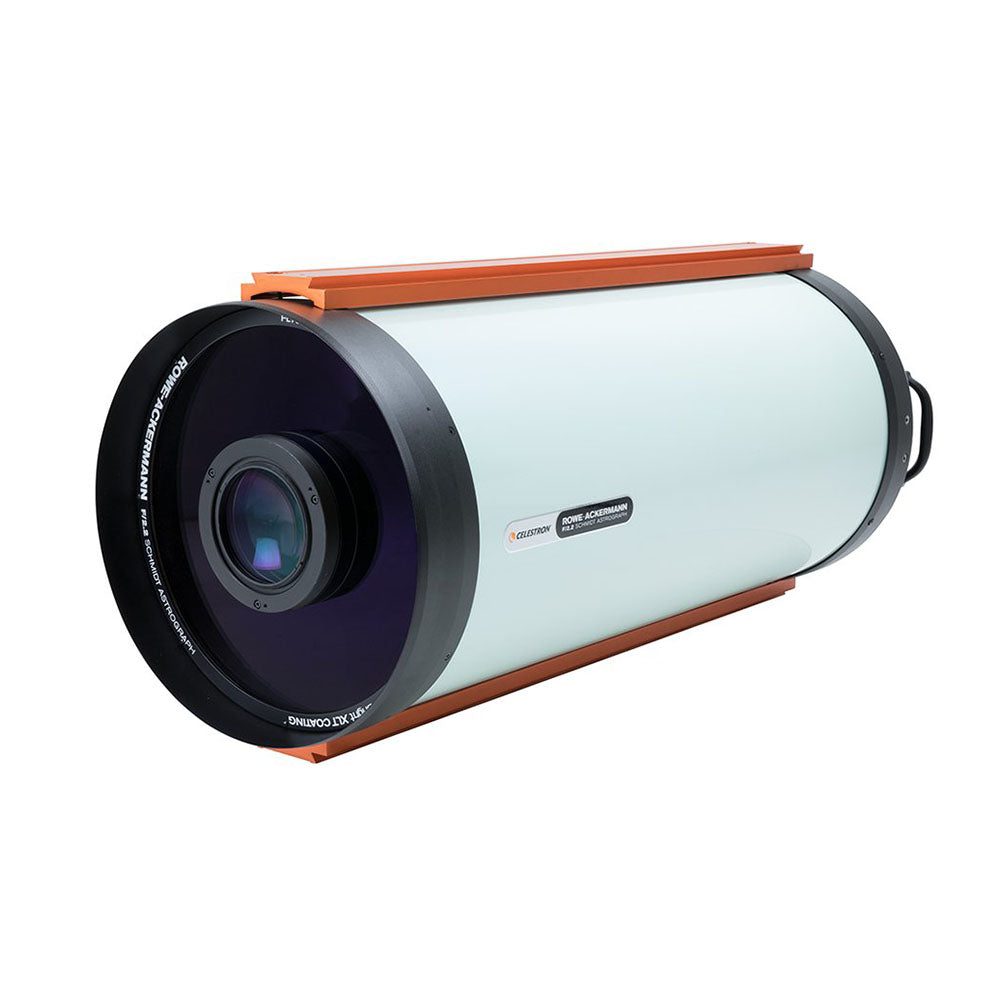

    Celestron 36 cm RASA Astrograph OTA



    Optimally suited for scientific applications such as space surveillance and Space Situational Awareness (SSA), as well as for advanced wide field astrophotography, this Rowe-Ackermann Schnmidt Astrograph is also practical from a cost perspective. This optical system provides fantastic value in terms of speed, aperture, field of view, and overall optical performance. The RASA design features a convenient external location with a flat focal plane for prime-focus image capture, allowing small spot sizes to the outskirts of a wide field resulting in images void of optical blemishes such as field curvature, off-axis coma, and astigmatism.

    The 36 cm aperture version is the largest RASA Celestron manufactures. It is both the biggest and fastest (f/2.2) optical instrument of its kind available “off-the-shelf.” Unlike most telescopes, which only focus visible light (400-700 nm), the RASA 36 cm focuses an extended spectral range (400-900 nm), allowing a brighter signal to be detected by a camera sensor. The 36 cm RASA also features a redesigned focus system, which ensures easy and stable focusing.

    With a substantial 77.5 mm back-focus, the Celestron 36 cm RASA is compatible with a wide range of imaging sensors. The addition of a custom camera adapter enhances the field of view up to 4.4 degrees.



    Additional Features

    • Consisting of high transmission multi-coatings for lenses, along with highly reflective aluminum coatings, Celestron's proprietary XLT coatings enable reliably solid optical system light throughput.
    • A built-in cooling fan helps cool down optics to ambient temperature while pulling air through micromesh vents for dust ingress prevention.
    • Comes with dual dovetail mounting bars for the ability to mount both an optical tube and additional accessories. Compatible with "CGE/Losmandy" style dovetails.
    • A pair of 2x threaded insert hole sets in the rear cell allow even more mounting options.

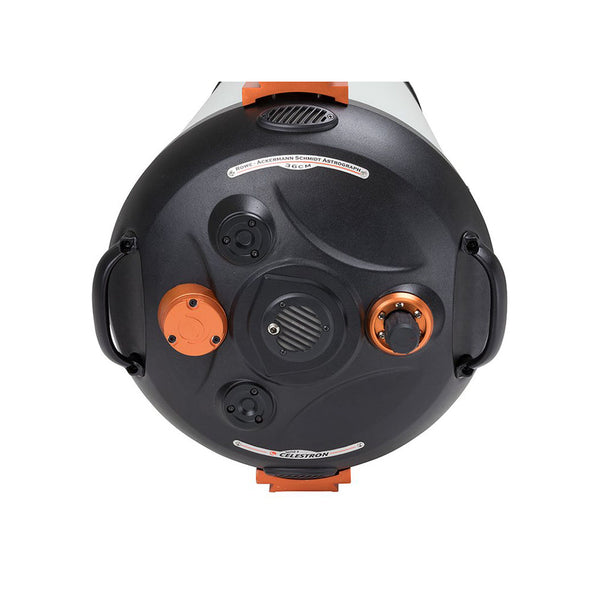

    • Rear cell features carrying handles for convenient optical tube movement.
    • Although not normally needed, there are three sets of push-pull screws to adjust the lens group to achieve optical alignment for the entire system.
    • M48 camera adapter included.
    • Motor system specifically designed for the 36 cm RASA focuser is manufactured by Starlight Instruments.













    Supplier SKU

    91077

    What's Included

    • Celestron 36 cm (14") Rowe-Ackermann RASA Astrograph OTA

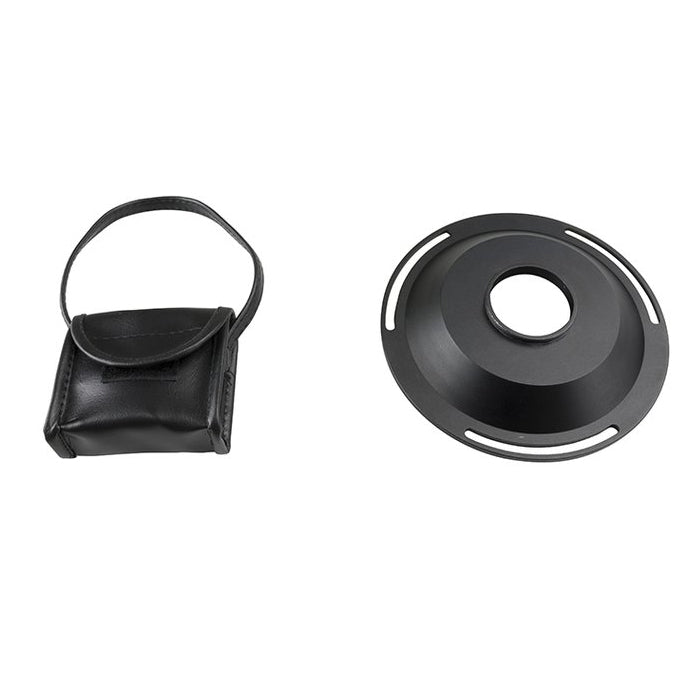

    • 48 mm Camera Adapter
    • Fan Battery Pack
    • Dual Dovetail Mounting Bars

  • Dimensions & Specifications

    • Optical Design: Rowe-Ackermann Schmidt Astrograph
    • Aperture: 355.6 mm (14")
    • Focal Length: 790 mm
    • Focal Ratio: f/2.2
    • Central Obstruction Diameter: 15 mm (6.22"); 44% of aperture diameter
    • Light Gathering Power: 2581x the human eye
    • Rayleigh Resolution: 0.39 arcseconds
    • Dawes Resolution: 0.36 arcseconds
    • Image Circle: 60.1 mm (2.36"); 4.4º
    • Wavelength Range: 400 - 900 nm
    • Spot Size: <6.3 μm RMS across FOV
    • Optical Coatings: Enhanced aluminum; XLT multi-coatings
    • Off-Axis Illumination: 83% at 30 mm (1.18")
    • Optical Window: 104 mm (4.09")
    • Backfocus Distance: 77.5 mm (3.05"); 55 mm (2.16") with included camera adapter
    • Optical Tube Material: Aluminum
    • Optical Tube Length: 1079.5 mm (42.5")
    • Optical Tube Diameter: 106.4 mm (16")
    • Optical Tube Weight: 75 lbs.
    • Focuser: New focuser design that minimizes focus shift
    • Additional Features: Ventilation fan; dual dovetail mounting bars
