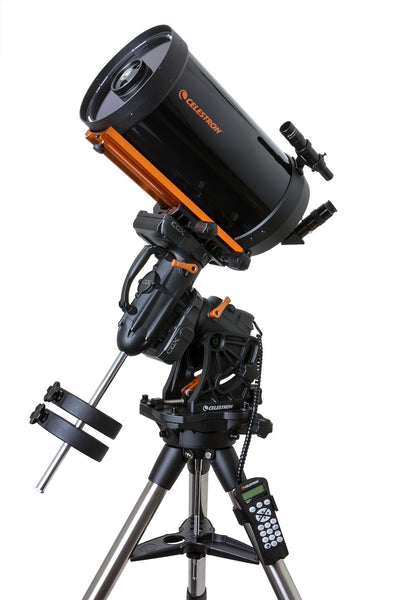

Celestron CGX 9.25 Inch Schmidt-Cassegrain Telescope - 12051

No Ratings Yet

Write a Review

Item #CELE-12051

  • Your Price:
  • $3,499.00
  • + FREE Shipping

Leave us your email, and we’ll let you know when this item is back in stock.

  • Designed from scratch inside and out for superior technical performance and an unbeatable user experience.
  • Paired with Celestron’s classic Schmidt-Cassegrain optical tube, this versatile system is ready for visual observing or astroimaging.
  • CGX's all-new industrial design features a lower profile for increased stability and rigidity. The mount easily handles up to 55 lb of payload.
  • New mechanical design features a belt drive system to drive the worm gear for reduced backlash and improved responsiveness.
  • All internal cabling and home/limit sensors with hard stops virtually eliminate the risk of cable snags or tripod strikes.
  • Dual dovetail saddle accommodates both CGE/Losmandy and CG-5/Vixen style dovetails so you can pair this mount with just about any optical tube.
  • Larger knobs and longer clutch levers make setting up your telescope and adjusting your polar alignment easier and more secure.
  • New tripod design features a wider stance and height index marks for easy leveling. The accessory tray is integrated into the tripod for quick setup.
Questions? Let our experts help!
  • Description

    Take your visual observing and astroimaging to new heights with an all-new mount from Celestron: CGX. This German equatorial mount offers all the performance and features found on observatory grade mounts in a user-friendly package that can travel with you to remote observing sites.

    To create CGX, Celestron engineers started from the ground up with a completely new industrial and mechanical design. The result is a streamlined, elegant mount—inside and out.

    Unbeatable Tracking Performance

    Under the hood, CGX is different from any other generation of German equatorial mount. You’ll find a new heavy duty belt-drive system driving the worm gear, which minimizes backlash and allows the mount to move smoothly under heavy loads.

    The worm gear itself is brass and spring-loaded for smooth operation. You can train CGX using permanent periodic error correction (PPEC) to eliminate periodic errors in the worm gear. Set it once and the errors are gone for as long as you own the mount.

    Safer and More Elegant Design

    Celestron’s team ran all of CGX’s cabling through the mount for a clean look. The power input and ports where you connect your computer, hand control, or other accessories remain stationary and do not move with the mount to eliminate the risk of cable wrap and tension.

    What’s more, the mount has built-in slew limits with hard stops. Internal optical sensors stop the mount from moving past these limits, so there’s never danger of your optical tube striking the tripod—a great feature if you plan on operating CGX remotely. But don’t worry, these slew limits are quite generous at 20 degrees past the meridian in each direction, so you can still capture astroimages across the clearest part of the night sky.

    Improved Design and Ergonomics

    When you look at CGX, one of first things you’ll notice is its low profile and wide stance compared with other GEM mounts. This new form factor anchors CGX to the ground for improved rigidity. Thanks to its super stable design, CGX can handle up to 55 lb of payload with ease—enough to accommodate your scope when it’s loaded with a full range of accessories like astroimaging cameras, guide scopes, and bulky eyepieces.

    CGX stands securely on a brand new tripod. It features strong 2” steel tripod legs with height index marks so you can quickly set up and level your tripod. The leg lock mechanisms are inward facing so you don’t snag or trip over them in the dark. Plus, CGX features an integrated accessory tray that remains attached to the tripod. It’s one less piece to keep track of in the field and helps the tripod lay flat without rolling around in your trunk.

    This mount features new clutch levers and polar alignment knobs so that you can make adjustments with just a twist of the wrist—even after a long night in the cold. The hand control offers an integrated USB port to make downloading software updates a breeze. You’ll also receive a new dual dovetail saddle so you can pair CGX with virtually any optical tube; it accommodates both CGE/Losmandy and CG-5/Vixen style dovetails.

    Celestron’s Signature Optics

    Speaking of optical tubes, this telescope kit includes Celstron’s bestselling 9.25” Schmidt-Cassegrain optical tube. Developed by Celestron’s founder Tom Johnson in the 1970s and perfected over decades, this optical design has withstood the test of time thanks to its compact form factor, versatility, and stunning views. All optical surfaces feature Celestron's StarBright XLT coating for maximum light transmission and bright, detailed views.

    Precision Tracking for Astroimaging

    Of course, you also get all of the innovative software technologies that make using a Celestron GEM mount so easy: SkyAlign and All Star Polar Alignment. SkyAlign allows you to center any three bright objects to align the telescope’s GoTo in minutes, while All Star gives you a super accurate polar alignment in a fraction of the time it takes to use a polar finderscope. Best of all, you don’t need a clear view of Polaris. Once you’ve set up your CGX, these automated procedures will have you ready to capture images in about 15 minutes.

    With the CGX mount, you’ll get more out of every observing or imaging session. From detailed views of the planets to breathtaking images of deep sky objects, this versatile mount is ready to help you see and capture it all.



    Supplier SKU

    12051

  • Dimensions & Specifications

    Optical Design

    Schmidt-Cassegrain

    Aperture

    234.95 mm (9.25 in)

    Focal Length

    2350 mm (93 in)

    Focal Ratio

    f/10

    Focal Length of Eyepiece 1

    25 mm (0.98 in)

    Magnification of Eyepiece 1

    94x

    Finderscope

    6x30

    Star Diagonal

    1.25

    Optical Tube

    Aluminum

    Highest Useful Magnification

    555x

    Lowest Useful Magnification

    34x

    Limiting Stellar Magnitude

    14.4

    Resolution (Rayleigh)

    0.59 arc seconds

    Resolution (Dawes)

    0.49 arc seconds

    Light Gathering Power (Compared to human eye)

    1127x

    Secondary Mirror Obstruction

    3.35 in (85 mm)

    Optical Coatings

    StarBright XLT

    Optical Tube Length

    22 in (559 mm)

    Optical Tube Weight

    20 lbs. (9.07 kg)

    Optical Tube Dovetail Compatibility

    CGE Mount

    Mount

    German Equatorial Mount

    Instrument load capacity

    55lbs

    Tripod height adjustment range

    47.25” to 77.5” including EQ head

    Tripod leg diameter

    2"

    Latitude adjustment range

    3º-65º

    Tripod Weight

    19.2 lbs

    EQ Head Weight

    44 lbs

    Max Slew Speed

    5º/second (4º/second is default)

    Tracking Rates

    Sidereal, Solar and Lunar

    Number of Auxiliary ports (for hand control and accessories)

    2

    Autoguide Port

    Yes

    USB Port

    Yes

    Software

    New telescope control PC software

    Included Items

    CGX Equatorial Head, CGX Tripod with Accessory Tray, one 17 lb counterweight, NexStar+ Hand Control, DC Power Cable (plugs into cigarette lighter socket)
