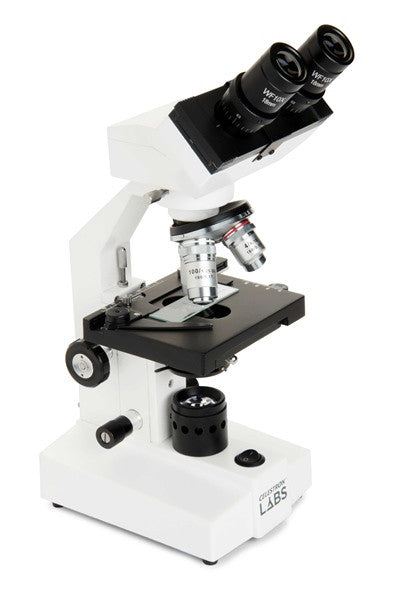

Celestron Labs CB2000CF Compound Binocular Microscope

Item #CELE717-1

  • Your Price:
  • $219.95
  • + FREE Shipping
  • Celestron CB2000CF Binocular Microscope offers 8 magnification choices from 40X to 2000X
  • Binocular head lets you use both eyes
  • Fully mechanical stage for adjustments on both axes
  • Coarse and fine focus knobs for fine-tuning image sharpness
  • All metal construction for durability
  • Halogen provides bright, white subject illumination
  • Comes with an AC plug
  • Includes 3 color filters, oil, and 10 prepared slides
Questions? Let our experts help!
  • Description

    The Celestron Labs CB2000CF Compound Binocular Microscope is very similar to the CM2000CF model, except it has an upgraded binocular head for more comfortable, ergonomic views. The CB2000CF offers magnifications of up to 2000x, and includes a mechanical stage, coarse and fine focus knobs, halogen lighting, and an Abbe condenser. The CB200CF is perfect for teachers, the inquisitive student, or the hobbyist who would like a classic binocular microscope with a wide range of magnifications.

    40x - 2000x magnification

    The CB2000CF comes with a pair of 10x WF and a 20X WF eyepieces. Each set of eyepieces will provide different magnifications when paired with the four objective lenses assembled in a classic rotating turret. The 10x wide field eyepieces come with a pointer to help other observers zero in on the most important aspects of the specimen. Enjoy eight magnification choices that include 40x, 80x, 100x, 200x, 400x, 800x, 1000x and 2000x.

    Binocular viewing - your eyes will thank you

    Most people enjoy the comfort that a binocular microscope offers. Using both eyes allows them to relax into an observing session, and may allow you to see more detail. Also, a binocular microscope, in general, handles magnifications of over 1000x better than a similar microscope with a monocular head. The binocular head on the CB2000CF microscope allows for interpupillary distance adjustments as well as diopter adjustments on both eyepieces.

    Halogen lighting and Abbe NA 1.25 condenser

    The Celestron CB2000CF microscope uses a Halogen lamp for specimen illumination. Halogen provides a very white, bright, concentrated light. The iris diaphragm of the NA 1.25 Abbe condenser concentrates and focuses the light so that your specimen is perfectly illuminated from underneath. A dial is located near the condenser to allow adjustments to the light level.

    Mechanical stage for perfect positioning of your subject

    A fully adjustable mechanical stage is one of the upgraded features on the CB2000CF microscope from Celestron Labs. The stage measures 4.3 inches by 4.9 inches, providing plenty of room for your slide, and adjustable stage holders keep the specimen in place. Stage movement knobs make up, down, left, or right movements to the stage, allowing you to center your prepared slide perfectly over the opening.

    This compound binocular microscope is made of metal for heavy-duty performance. Accessories include an AC power cord, three colored filters to help increase the contrast of your specimens, a small bottle of immersion oil, and ten prepared slides in a storage box.

    Supplier SKU

    44131

    What's Included

    • Celestron CB2000CF Compound Binocular Microscope
    • AC Power Cord
    • 2 10X WF Eyepieces with Pointers
    • 2 20X WF Eyepieces
    • 10 prepared slides in storage box
    • Red filter
    • Blue filter
    • Yellow filter
    • Immersion oil

  • Dimensions & Specifications

    Microscope Head:

    Binocular head with 45 degree incline

    Objective Nosepiece:

    Quadruple with click stop

    Objective Lens Diameter:

    4 achromatic - 4x, 10x, 40x 100x

    Included Eyepieces:

    10x WF and 20X WF

    Lowest Magnification:

    40 x

    Highest Magnification:

    2000 x

    Condenser Lens:

    Abbe NA 1.25 with iris adjustment

    Diaphragm:

    Iris, adjustable

    Illumination:

    Halogen lower, adjustable

    Stage:

    Mechanical stage - 110mm x 120mm

    Focus:

    Coarse and fine focus knobs

    Power:

    AC power cord

    Dimensions:

    7.25 in x 8.75 in x 15.25 in

    Weight:

    7 lb. 12 ounces
