  • The Coronado has added the 90 mm SolarMax III Hydrogen-Alpha Solar Telescope to their SolarMax line-up
  • 800mm focal length and an f/ratio of 8.9
  • Produces a < 0.7 Angstrom passband which yields an optimal balance of prominence and surface detail
  • Polished brass and black anodized components complement each other very well
Questions? Let our experts help!
  • Description

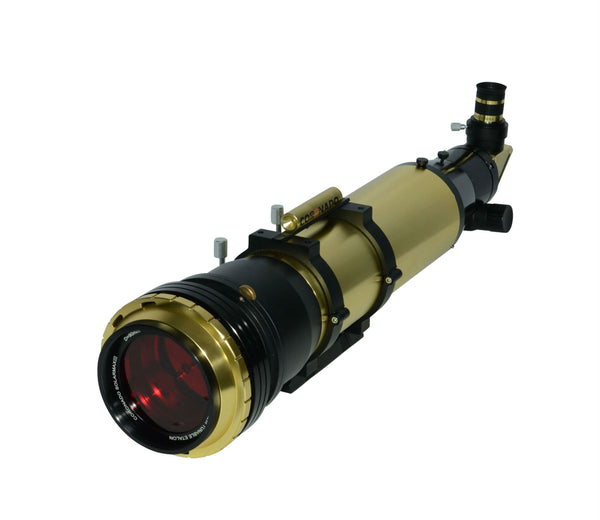

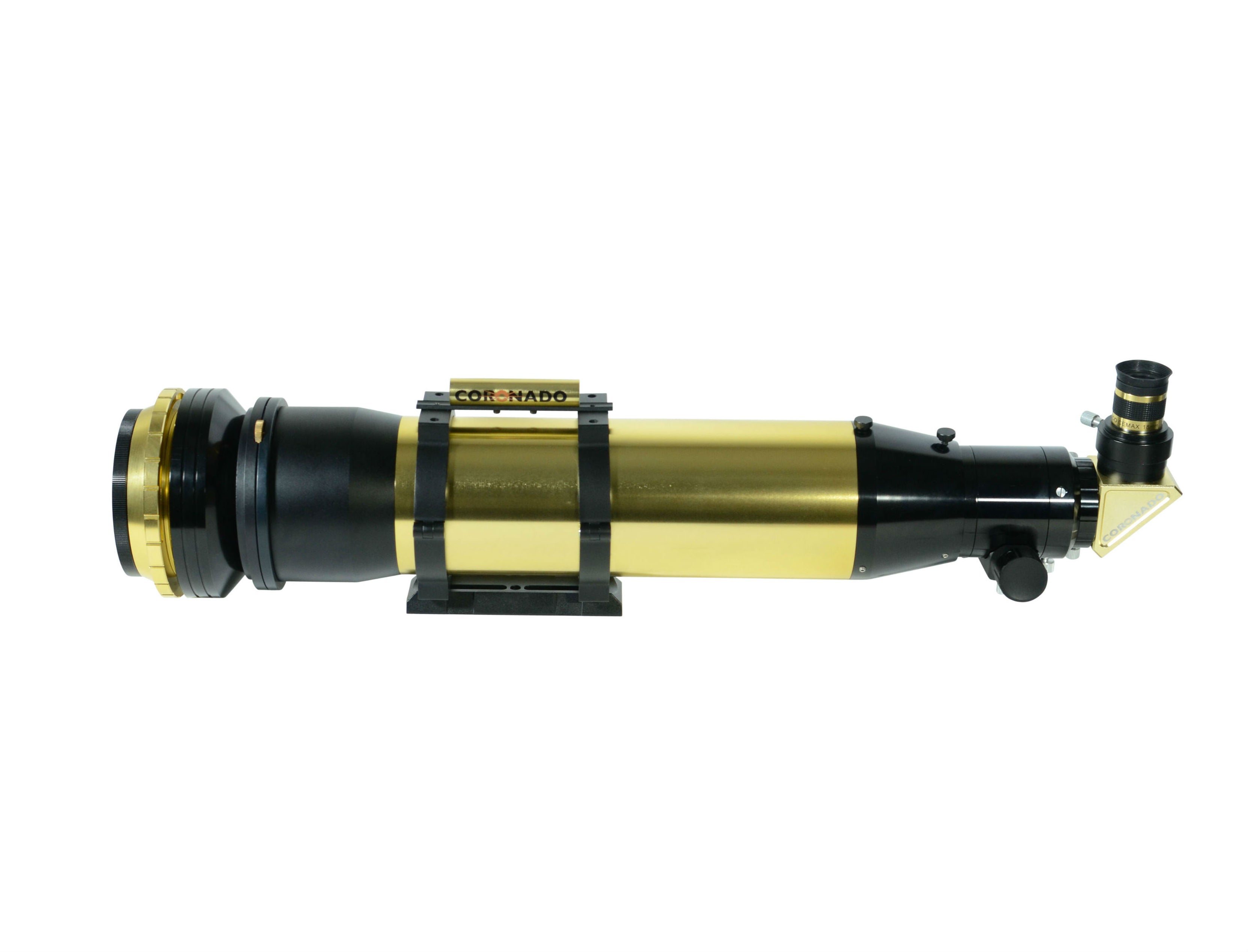

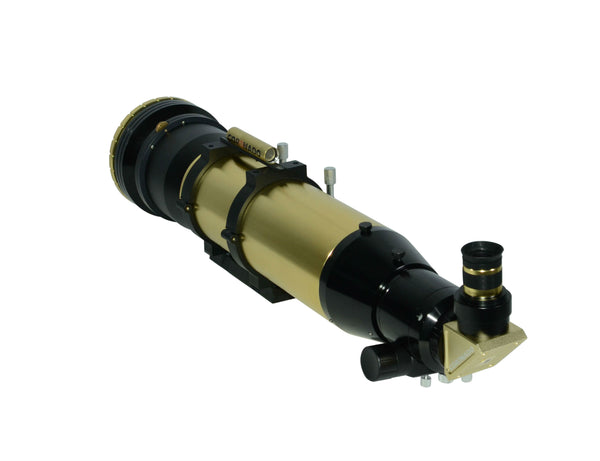

    Coronado 90 SolarMax III Solar Telescope
    with RichView Tuning & 30 mm Blocking Filter

    Coronado has introduced the 90 mm SolarMax III Hydrogen-Alpha Solar Telescope to their popular SolarMax Series! The 90mm refractor has a focal ratio of f/8.9 and an 800mm focal length. The SolarMax III includes a 90mm external hydrogen-alpha etalon, providing higher contrast and sharper features than a solar scope fitted with a smaller internal etalon. The external etalon works in conjunction with a 30mm blocking filter situated in a 1.25" star diagonal. Together, the tunable external etalon and the blocking filter produce a < 0.7 Angstrom passband which yields an optimal balance of prominence and surface detail.

    Tuning of the etalon is achieved with Coronado's patented RichView Tuning. The revolutionary RichView™ tuning method allows you to zero in on the most precise wavelength of light for each area on either side of the hydrogen-alpha (Ha) band, providing the highest contrast views of active regions, flares, filaments and other surface features. With RichView you can also retune the SolarMax III quickly and easily for spectacular images of prominences on the solar limb. No other commercially available Ha telescope provides the tuning range and accuracy of the SolarMax III.

    The 90mm SolarMax III is a beautiful instrument, just like all the Coronado SolarMax telescopes. The polished brass and black anodized components complement each other very well, giving the scope a timeless, classy look. The focuser on the SolarMax III is a 2" rack and pinion model that has dual-speed 10:1 focusing. The ability to make both coarse and fine focus changes will definitely enhance your viewing pleasure.

    You can mount the 90mm SolarMax III Solar Telescope on any sturdy mount that accepts a Vixen-Style dovetail. If you plan to do solar photography we recommend a more substantial mount. Give us a shout if you'd like help choosing a mount, imaging camera, or anything else that you might need to make this the perfect solar set-up!



    Supplier SKU

    324013

    What's Included

    • Coronado 90 SolarMax III Solar Telescope w/ 30 mm Blocking Filter

    • CEMAX 12 mm Eyepiece

    • CEMAX 18 mm Eyepiece

    • CEMAX 25 mm Eyepiece

    • CEMAX 2X Barlow

    • Sol Ranger Finder

    • Vixen-Style Dovetail Rail

    • 2" Dual Speed Rack & Pinion Focuser

    • Black & Gold Hard Carry Case

  • Dimensions & Specifications

    • Optical Tube: 90mm Achromatic Refractor

    • Focal Length: 800mm

    • Focal Ratio: 8.9

    • Optical Coatings: Fully Multi-Coated

    • Solar Filter: 90mm External H-Alpha Etalon

    • Tuning: RichView Tuning

    • Bandwidth: <0.7A

    • Thermal Stability: 0.005 A/Cº

    • Blocking Filter Diagonal: 30mm

    • Blocking: Full blocking >10-5 from EUV to far IR

    • Eyepieces: 18mm / 12mm / 25mm Cemax Eyepieces- 1.25"

    • Solar Viewfinder: Sol Ranger

    • Focuser: 2" Dual Speed Rack & Pinion with 10:1 Fine Focus

    • Dovetail Rail: Vixen-style

    • Hard Carry Case: Included

    • Dimensions: 27.9" L x 6.2" W x 7" H

    • Weight: 17.5 lb.
