iOptron iEQ45 Pro with 42-inch Pier - 8000E-42P is no longer available.

We recommend these products instead:

iOptron iEQ45 Pro with 42-inch Pier - 8000E-42P Item no longer available

No Ratings Yet

Write a Review

Item #IOPN-8000E-42P

  • List Price:
  • $2,299.00
  • Your Price:
  • $1,728.00
  • You Save:
  • $571.00 USD25% + FREE Shipping

Leave us your email, and we’ll let you know when this item is back in stock.

  • EQ Telescope mount with built in GPS
  • Payload of 45 lbs.
  • Advanced SmartStar GoTo Technology
  • Fits both Vixen and Losmandy type plates
  • Polar scope with dark-field illumination
Questions? Let our experts help!
  • Description

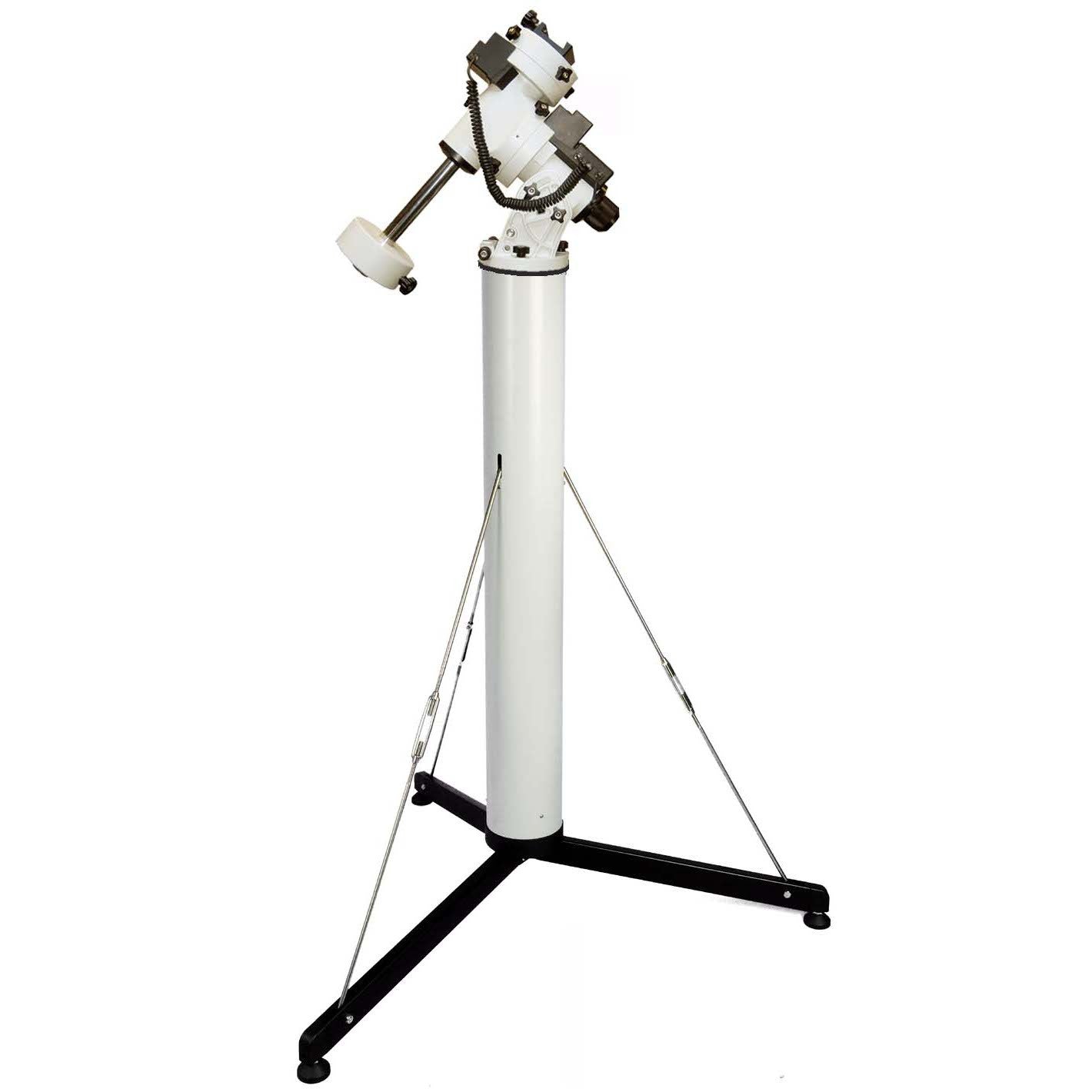

    The new iEQ45TM Pro GOTO German equatorial mount is the next generation premium astro-imaging mount from iOptron.



    A few changes have been made the iEQ45 including higher gear ratio for even greater tracking, plus, all-new circuitry and firmware. The iEQ45TM mount offers the next generation GoTo technology from iOptron —not to mention built-in 32-bit GPS. With a payload of 45 lbs. balanced – it comes standard with a calibrated dark field illumination polar scope and 42-inch pier. It also fits both Vixen and Losmandy-type mounting plates. Its lighter weight (only 25 lbs.) makes it much easier to carry.



    The iOptron iEQ45 Mount Features



    • Specialized astrophotography mount ideal for entry-level and intermediate
      astrophotographers
    • Payload: 45 lbs
    • Mount weight: 25 lbs
    • Portable, compact, and sturdy German equatorial mount with the highest Payload/Mount ratio (1.7) in the category
    • ST-4 autoguiding port capable of reverse guiding with auto-protection
    • Periodic error correction (PEC)
    • Ultra-accurate tracking with temperature compensated crystal oscillator (TCXO)
    • Gap-free structure for both R.A. and declination worms
    • Built-in 32-channel GPS
    • #8406 controller with Advanced SmartStarTM GoTo Technology and heating
      mechanism
    • Lowest working temperature: -20oC
    • RS232 port, with commands compatible with LX200
    • RS485 new command set completely open for user-defined control of the mount
    • Resolution: 0.09 arc second
    • Fits with both Vixen and Losmandy-type mounting plates
    • Calibrated polar scope with dark-field illumination and easy polar alignment procedure, allowing for fast and accurate polar alignment
    • Comes standard with: 2 x 5kg counterweight, AC adaptor, 12V DC car plug
      adaptor, USB cable, RS232 Cable and USB-to-RS232 Adaptor





    • Payload 45 lbs (20kg)
    • Mount Weight 25 lbs (11.4kg)
    • Payload/Mount Weight 1.75
    • R.A Worm 216 Teeth (Gap-free) Gear
      Ø130mm
    • Declination Worm 192 Teeth (Gap-free) Gear
      Ø115mm
    • Motor Drive Precision DC Servo
    • Resolution 0.09 Arc Seconds
    • Latitude Adjustment Range 5^70°
    • Azimuth Adjustment Range ±6°
    • Counterweight Bar Ø28mm
    • Counterweight 2 x 5kg
    • Polar Scope With dark-field illumination
    • R. A. Axis Ø50mm
    • Dovetail 3.5"VIXEN and 8"LOSMANDY
    • Power Consumption 0.2A(Tracking), 1A(Rotation)
    • Power Requirement 12V DC(11^15V), 2Amp
    • Transmission Synchronous belt
    • Level Indicator Precision Bubble
    • GPS Internal 32-channel GPS

    Supplier SKU

    8000E-42P

    Shipping Restrictions

    Only ships in contiguous USA.
