Optolong LRGB CCD Filter Set - 36mm Unmounted - LRGB-36U

No Ratings Yet

Write a Review

Item #OLNG-LRGB-36U

  • Your Price:
  • $299.00
  • + FREE Shipping

Leave us your email, and we’ll let you know when this item is back in stock.

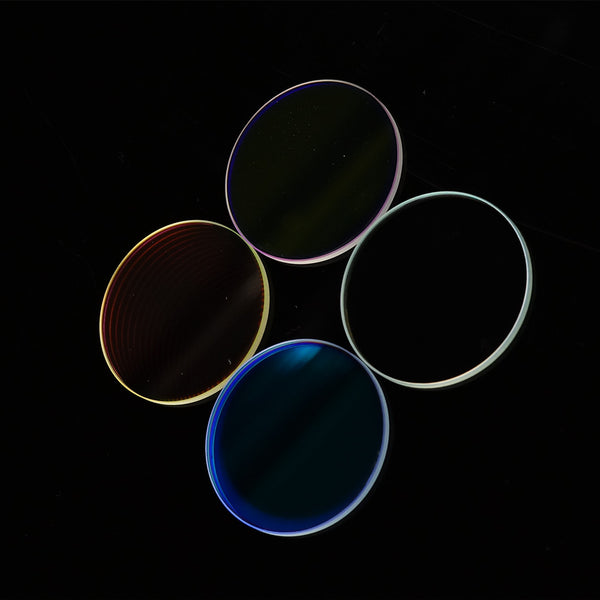

The high-performance Optolong LRGB CCD Filter Set includes four 36mm filters:
  • Luminance
  • Red
  • Green
  • Blue
Questions? Let our experts help!
  • Description

    Optolong LRGB Filter Set - 36mm Unmounted

    This LRGB Filter Set by Optolong features four 36mm unmounted filters. The included filters are Red, Green, Blue, and Luminance. Designed for de-bayered monochrome CCD and CMOS cameras, these filters are excellent for both planetary and deep-sky imaging. Like all Optolong filters that are designated “CCD”, this filter set blocks infrared wavelengths from 700nm to 1100nm so there is no need to use a separate IR-Cut filter.

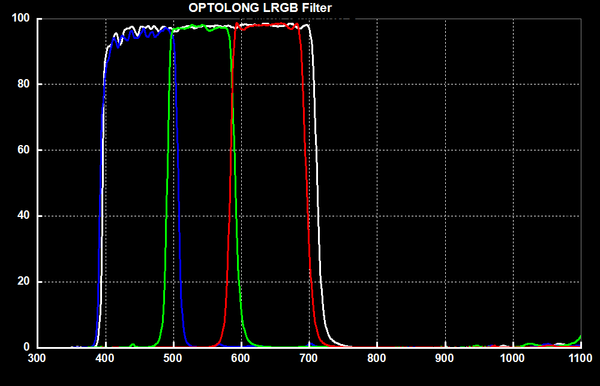

    The transmission of each filter is designed for maximum contrast and beautiful results. There is a gap between the green and red filters that improves color balance and separation by blocking out the Sodium line at 589nm. Also, OIII emission is allowed to overlap on the blue and green filters for more natural color.

    The Optolong 36mm Unmounted LRGB Filter Set is made with Schott glass that has been multi-coated with an ion-assisted deposition technology to ensure scratch resistance and stability on the central wavelength or CWL. This filter set is designed to be used in color filter wheels that accept 36mm unmounted filters in a round format.



    Quality Filter Materials:

    • Schott B260 substrate material from Germany, 3.0mm thick
    • Multiple layers of anti-reflection non-cementing coatings applied via electron-beam gun evaporation with Ion-assisted deposition



    Optolong Filter Manufacturing Processes and Parameters

    • Filter substrate is fine-optically polished to 1/4 wave and <30 parallelism over both surfaces
    • Surface quality, according to MIL-O-13830, is 60/40
    • 95% transmission at bandpass
    • Infrared wavelength 700-1100nm cut-off
    • Optolong’s planetary rotation system is a homogenous and precise coating procedure that ensures both high transmission of pass-band and optical density of off-band
    • Each filter comes with a plastic case with high-pressure EVA case lining



    About Optolong

    Optolong is the Astronomy Filters division of Yulong Optics, an optical filter design, and processing company out of Kunming, China that has provided filters for over 700 optical companies since 1999. All Optolong filters pass European Union RoHS requirements and have been certified by TUV Rheinland and Bureau Veritas.



    Supplier SKU

    LRGB-36U

    What's Included

    • Optolong 36mm Unmounted Luminance Filter

    • Optolong 36mm Unmounted Red Filter

    • Optolong 36mm Unmounted Green Filter

    • Optolong 36mm Unmounted Blue Filter

    • Filter Case

  • Dimensions & Specifications

    • Filter Size: 36 mm

    • Filter Type: LRGB Imaging

    • Filter Shape: Round

    • Mounted or Unmounted: Unmounted

    • Filter Set Contents: Luminance/Red/Green/ Blue 36mm Round Unmounted Filters


  • Product Guarantee

    We stand behind all the products we sell, and your satisfaction is our top priority. If you're not satisfied with the quality of your purchase, simply send the item back to us in its original packaging within 30 days of its delivery.

    Manufacturer Warranty

    Two Years
