Optolong OIII CCD 6.5nm Filter - 2" Mounted - OIIICCD65-200

No Ratings Yet

Write a Review

Item #OLNG-OIIICCD65-200

  • Your Price:
  • $255.00
  • + FREE Shipping

Leave us your email, and we’ll let you know when this item is back in stock.

  • Optolong's Oxygen III Extra-Narrowband Filter allows only a 6.5nm bandwidth of light to pass through
  • Reduces transmission of wavelengths notorious for artificial and natural light pollution
  • Blocks infrared wavelengths from 700nm to 1100nm so there is no need for a separate IR-Cut filter
Questions? Let our experts help!
  • Description

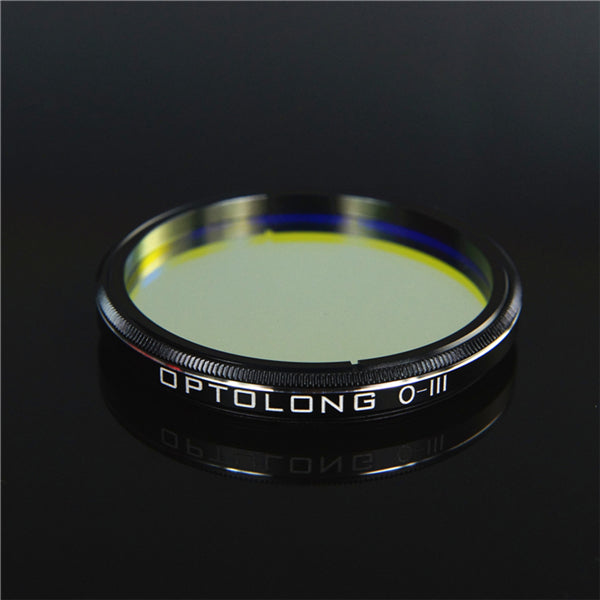

    Optolong OIII 6.5nm Filter - 2"

    The 2" Oxygen III 6.5nm Extra-Narrowband Filter is produced by Optolong and enables transmission of only a 6.5nm bandwidth of light, centered at 500nm. This greatly reduces other transmissions, such as wavelengths of light notorious for artificial and natural light pollution. Like all Optolong CCD filters, this OIII also blocks infrared wavelengths from 700nm to 1100nm so there is no need for a separate IR-Cut filter.

    This filter does wonders when imaging emission and planetary nebulae and does a great job on supernova remnants as well. The Optolong 6.5nm Oxygen III filter can be used alone to pull out the blue-green structure in star-forming regions and emission nebulae or in conjunction with H-Alpha and SII 6.5nm filters for false color emission line images like the Hubble Space Telescope.

    Due to the narrow bandwidth and high transmission rate of this filter, you will experience a major boost to contrast. The sky will be black, and when compared to a 12nm OIII, half as many stars will peep through. Extra Narrowband filters work best with cameras that have very low dark current but will allow you to image from sites with lots of light pollution.

    The Optolong 2” OIII 6.5nm Filter is made with Schott glass that has been multi-coated with an ion-assisted deposition technology to ensure scratch resistance and stability on the central wavelength, or CWL. The filter cell is made of lightweight, strong metal and is CNC machined, sand-blasted, black anodized, and then laser engraved. The result is a super thin filter cell that will produce a clear aperture of 45mm.


    Quality Filter Materials:

    • Schott B260 substrate material from Germany, 2.0mm thick
    • Multiple layers of anti-reflection non-cementing coatings applied via electron-beam gun evaporation with Ion-assisted deposition
    • CNC machined and black anodized aero-metal filter cell that is ultra-thin to provide largest clear aperture; Laser-engraved to prevent fading


    Optolong Filter Manufacturing Processes and Parameters

    • Filter substrate is fine-optically polished to 1/4 wave and <30 parallelism over both surfaces
    • Surface quality, according to MIL-O-13830, is 60/40
    • 80% transmission at OIII line 500nm
    • Infrared wavelength 700-1100nm cut-off
    • 0.1% transmission Hg at 435nm and 578nm
    • 0.1% transmission Na at 589nm
    • High-value transmission of pass-band and optical density of off-band is assured through Optolong’s planetary rotation system, a homogeneous and precise coating procedure
    • Each filter comes with a plastic case with high-pressure EVA case lining
    • Thin metal cells have a clear aperture of 45mm for 2” filters


    About Optolong

    Optolong is the Astronomy Filters division of Yulong Optics, an optical filter design, and processing company out of Kunming, China that has provided filters for over 700 optical companies since 1999. All Optolong filters pass European Union RoHS requirements and have been certified by TUV Rheinland and Bureau Veritas.


    Supplier SKU


    What's Included

    • Optolong 2" OIII CCD 6.5nm Filter

    • Filter Case

  • Dimensions & Specifications

    • Filter Size: 50.8mm (2")

    • Filter Type: Narrowband Imaging

    • Filter Shape: Round

    • Mounted or Unmounted: Mounted

  • Product Guarantee

    We stand behind all the products we sell, and your satisfaction is our top priority. If you're not satisfied with the quality of your purchase, simply send the item back to us in its original packaging within 30 days of its delivery.

    Manufacturer Warranty

    Two Years
