Optolong UV-IR Cut Filter - 2" Mounted - UVIR-200

No Ratings Yet

Write a Review

Item #OLNG-UVIR-200

  • Your Price:
  • $65.00

Leave us your email, and we’ll let you know when this item is back in stock.

  • Optolong UV-IR Cut Filter dramatically improves image sharpness by blocking Ultraviolet and Infrared transmissions
  • Violet halos and an overall soft image are no more
  • Passes UV-A light at 320nm to 400nm with a peak transmission of 80%
  • Designed from Schott glass that has been multi-coated with an ion-assisted deposition technology
Questions? Let our experts help!
  • Description

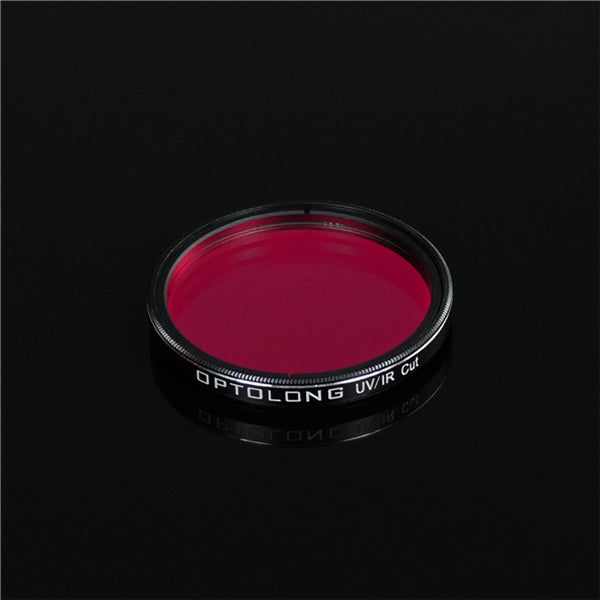

    Optolong UV-IR Cut Filter - 2”

    The Optolong UV-IR Cut Filter will dramatically improve image sharpness by blocking Ultraviolet and Infrared transmissions yet allowing the visible spectral region to pass through. The IR (700nm to 1100nm) and UV (300nm - 400nm) wavelengths may be invisible to human eyes, but not to most CCD and other digital cameras. These cameras are particularly sensitive to the 300nm to 1100nm part of the wavelength spectrum. With the Optolong UV-IR Cut filter installed, violet halos and an overall soft image are no more. This filter also reflects heat radiation and provides great protection against dust.

    The Optolong 2” UV-IR Cut Filter is made with Schott glass that has been multi-coated with an ion-assisted deposition technology to ensure scratch resistance and stability on the central wavelength, or CWL. Each filter cell is made of lightweight, strong metal and is CNC machined, sand-blasted, black anodized, and then laser engraved. The result is a super thin filter cell that will produce a clear aperture of 45mm.



    Quality Filter Materials:

    • Schott B260 substrate material from Germany, 2.0mm thick
    • CNC machined and black anodized aero-metal filter cell that is ultra-thin to provide largest clear aperture; Laser-engraved to prevent fading
    • Multiple layers of anti-reflection non-cementing coatings applied via electron-beam gun evaporation with Ion-assisted deposition



    Optolong Filter Manufacturing Processes and Parameters

    • Filter substrate is fine-optically polished to 1/4 wave and <30 parallelism over both surfaces
    • Surface quality, according to MIL-O-13830, is 60/40

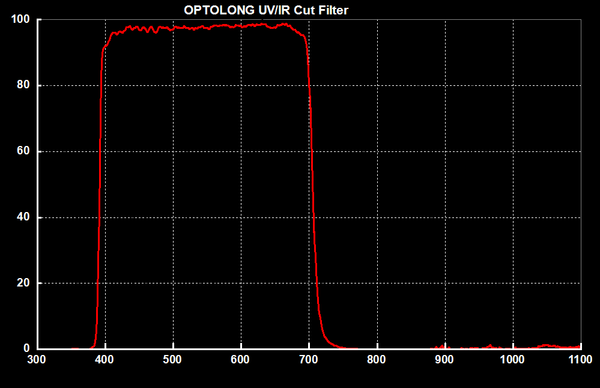

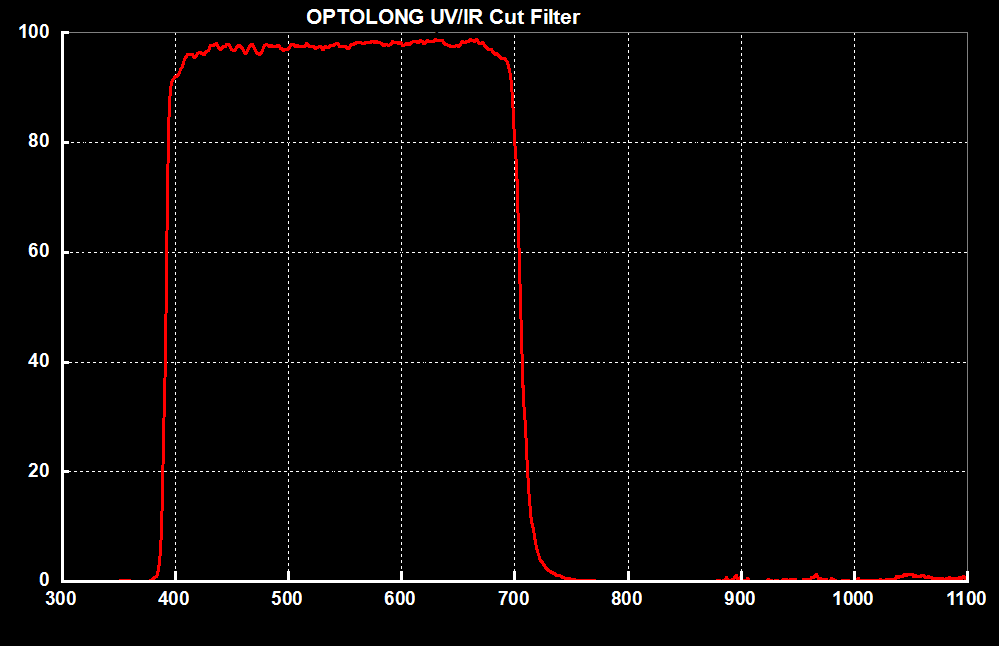

    • 95% transmission at visible spectral region 420-680nm highly passing the major nebula emission lines of H-Alpha 656nm, SII 672nm and NII 654nm and 658nm
    • Ultraviolet 300-400nm and infrared wavelength 700-1100nm cut-off
    • Optolong’s planetary rotation system is a homogenous and precise coating procedure that ensures both high transmission of pass-band and optical density of off-band
    • Thin metal cells have a clear aperture of 45mm for 2” filters
    • Each filter comes with a plastic case with high-pressure EVA case lining



    About Optolong

    Optolong is the Astronomy Filters division of Yulong Optics, an optical filter design, and processing company out of Kunming, China that has provided filters for over 700 optical companies since 1999. All Optolong filters pass European Union RoHS requirements and have been certified by TUV Rheinland and Bureau Veritas.



    Supplier SKU

    UVIR-200

    What's Included

    • Optolong 2" UV-IR Filter

    • Filter Case

  • Dimensions & Specifications

    • Filter Size: 50.8 mm (2")

    • Filter Type: UV/IR and/or Luminance

    • Filter Shape: Round

    • Mounted or Unmounted: Mounted


  • Product Guarantee

    We stand behind all the products we sell, and your satisfaction is our top priority. If you're not satisfied with the quality of your purchase, simply send the item back to us in its original packaging within 30 days of its delivery.

    Manufacturer Warranty

    Two Years
