QHYCCD 247C Cooled APS-C Color CMOS Camera - QHY247C

No Ratings Yet

Write a Review

Item #QHYC-QHY247C

  • Your Price:
  • $1,699.00
  • + FREE Shipping

Leave us your email, and we’ll let you know when this item is back in stock.

  • This QHY247C USB 3.0 Imaging Camera boasts an enormous Sony IMX193 APS-C CMOS color sensor with 24 megapixels
  • Identical to the sensor used in the Nikon D5300 and D5500 cameras, the Sony IMX193 contains 3.91 µm square pixels in a 6024 x 4024 array
  • Two-stage TEC cooling provides temperature regulation and cooling to -40ºC below ambient
  • CMOS chamber is fully sealed to keep dew from accumulating on the sensor or sensor window
  • Instead of the traditional IR-Cut window normally provided by one-shot color cameras, the QHY247C features an optical window with AR+AR coating to help inhibit halos around bright stars
Questions? Let our experts help!
  • Description

    QHY247C Cooled APS-C CMOS Astronomy Camera



    The QHY247C is a cooled USB 3.0 color imaging camera with a whopping 24 MP CMOS sensor. The QHY247C sports the Sony IMX193; an APS-C color sensor with a 6024 x 4024 array of effective 3.91 µm square pixels. This is the same sensor that is used in the Nikon D5300 and D5500 camera. It has very low readout and thermal noise, with 2.7e at lowest gain and 1.0e at high gain. The IMX193 sensor is housed in a sealed chamber that is heated to prevent dew from building up on either the sensor or window.

    The QHY247C comes with a two-stage TEC cooling and temperature regulation system that can cool your camera down to as low as -40ºC below ambient. QHY has also incorporated anti-dew technology into the QHY247. The CMOS chamber is fully sealed, and includes a silicon gel tube socket as well as a heater to help keep both your sensor and the sensor window dry, even on damp nights.

    In an effort to avoid halos around bright stars the optical window has an AR+AR coating instead of the traditional IR-Cut window normally offered on one-shot color cameras. There is, however, a trade off in that you will need to provide your own 2" IR-cut filter and mount it on the front of the camera.

    The QHY247C allows for true raw image output! When you get the original signal to work with, you have maximum flexibility in the image processing stage of the process. Also, a built-in 128MB DDRII image buffer provides a safeguard against unexpected drops in data transmission. A frame buffer avoids lost frames during USB transfer by storing image data in the camera itself until it can be safely transmitted. Buffering will also make sure your video runs more smoothly when using a slower computer that cannot always handle high speed data well.

    The QHY247C camera has an anti-amp light control circuit to reduce amplifier glow significantly. Ports include a 6-pin RJ11 guide port and a 4-pin CFW2 filter wheel control port, allowing you to add an optional autoguider or filter wheel to enhance your imaging experience.







    Supplier SKU

    QHY247C

    What's Included

    • QHYCCD QHY247C Cooled CMOS Imaging Camera
    • 1.5 m USB 3.0 Cable
    • Self-Locking Power Cable
    • Angle Adjustment Adapter Ring
    • 12V Power Adapter
    • Drying Tube
    • Desiccant
    • Dust Cap
    • 2" M42 Adapter (Maximum diameter: 56mm)
    • Driver Download Card
    • Inspection Report

  • Dimensions & Specifications

    • Imaging Camera Series: QHY Cooled Color
    • Sensor: Sony IMX193 CMOS
    • Imager Size: APS-C format
    • Effective Pixels: 6024 x 4024
    • Pixel Size: 3.91 µm x 3.91 µm
    • Shutter: Electric Rolling
    • Full Well Capacity: 36ke-
    • Readout Type: Progressive Scan
    • Minimum Exposure: 50 µs
    • Maximum Exposure: 3600 seconds
    • Max Frame Rate: 3 FPS at Full; 10 FPS at 1920 x 1080 HD
    • Pixel Binning: 1x1

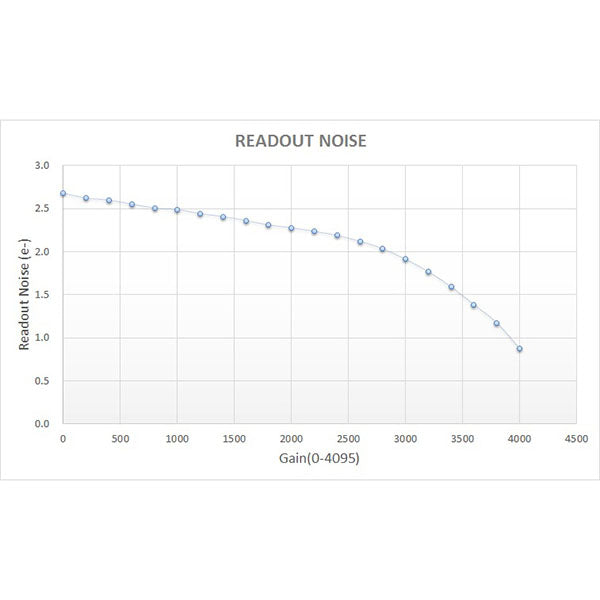

    • Readout Noise: 2.7e at lowest gain; 1.0e at high gain
    • Output Sample Depth: 14-Bit/8-Bit
    • On Camera Image Buffer: 128 MB DDRII
    • Cooling: Temperature regulated two-stage TEC typical -40ºC below ambient
    • Power for Camera: USB
    • Power for Cooler: +12V
    • Anti-Dew Control: Air Connector for removable silicon gel tube. Heat board for optic window of sealed CCD chamber.
    • Computer Interface: USB 3.0 super speed
    • Telescope Interface: M42x0.75 & 2" adapter
    • Color Wheel Port: 4PIN QHYCFW2 socket
    • Guide Port: 6PIN RJ11
    • Optic Window: AR+AR
    • Electric Interface: 12V input with lock; USB3.0 socket; 4PIN QHYCFW; 6PIN RJ11
    • Software: SharpCAP; ASCOM; EXCAP_QT; and FireCapture
    • Weight: 15.87 oz.



    Documentation

    QHY247C Instruction Manual
