QHYCCD QHY5III178 USB 3.0 Monochrome CMOS Imaging Camera - QHY5III178M

No Ratings Yet

Write a Review

Item #QHYC-QHY5III178M

  • Your Price:
  • $399.00
  • + FREE Shipping

Leave us your email, and we’ll let you know when this item is back in stock.

  • Designed for planetary imaging as well as wide field of view autoguiding, the QHY5III178 Monochrome CMOS Camera has the highest resolution of QHY's QHY5III series CMOS USB 3.0 cameras
  • Includes a highly sensitive back illuminated 6 MP Sony IMX178 STARVIS BSI CMOS image sensor that provides excellent picture quality in both the visible and infrared regions
  • More effective heat transfer to the external case allows for lower noise particularly in high ambient temperatures
  • 1.25" eyepiece format enhances the QHY5III178M for Off-Axis Guiding by offering the shortest back focus possible
  • The QHY5III178M Camera is also useful for getting started with deep sky imaging
Questions? Let our experts help!
  • Description

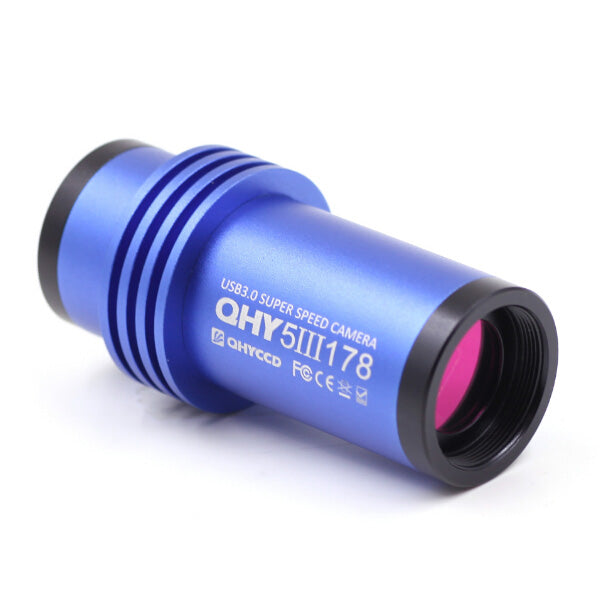

    QHY5III178 Monochrome CMOS Camera



    The QHY5III178 has the highest resolution of all QHY's new QHY5III series CMOS USB 3.0 imaging cameras. Its tiny 2.4 µm pixel size and 1/1.8" larger sensor size contribute to both getting high precision guiding data, and to keep an acceptable field of view to attain many guide stars. The QHY5III178 is designed for wide FOV autoguiding as well as high resolution planetary imaging. It can also be used as an introduction to imaging deep sky objects. The QHY5III178 camera features anti-amp glow control for substantially reducing amplifier glow when using it for deep sky applications.

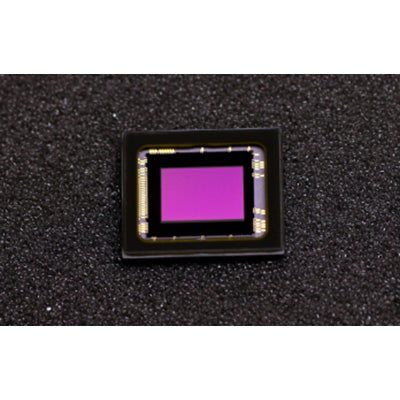

    The QHY5III178 uses Sony's StarVis BSI image sensor. STARVIS, a trademark of Sony Corporation, features back-illuminated pixel technology used in CMOS sensors when performing highly sensitive functions. This 6.0 megapixel sensor has a sensitivity of 2000 mV or more per 1 µm^2 (color product, when imaging with a 706 cd/m2 light source, f/5.6 in 1 s accumulation equivalent), and attains exceptional picture quality in the visible as well as near infrared light regions.

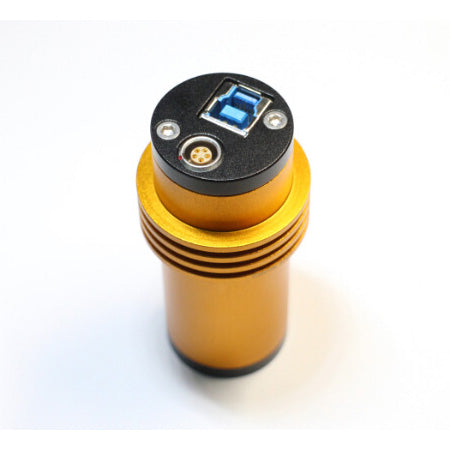

    QHY's unique construction maintains the 1.25" eyepiece format. Lower noise especially in high ambient temperatures due to a more productive heat transfer to the exterior case is an important advantage of the QHY5III178 design. The 1.25" format also optimizes this camera for Off-Axis guiding by providing the shortest possible back focus. In addition, the QHY5III178 uses the LEMO style connector for the guide port. LEMO connectors are famous for their toughness and reliability.







    Supplier SKU

    QHY5III178M

    What's Included

    • QHYCCD QHY5III178 Monochrome CMOS Camera
    • 1.5 m USB 3.0 Cable
    • 1.5 m 5-Pin LEMO to RJ11 Guide Cable
    • Confocal Ring

  • Dimensions & Specifications

    • Imaging Camera Series: QHY Mono
    • CMOS Sensor Model: Sony STARVIS IMX178 Exmor R
    • Imager Size: 1/1.8"
    • Resolution: 6 MP
    • Pixel Array: 3072 x 2048
    • Effective Area: 7.37mm x 4.91mm
    • Pixel Size: 2.4 µm square
    • Readout Type: Progressive Scan
    • Full Well Capacity: 15ke
    • Readout Noise: 2.4e - 0.9e
    • Anti-Amplight Control: Yes (Reduces the amplight substantially)
    • Shutter: Rolling
    • Max Frame Rate: 50 FPS @ full resolution; 100 FPS @ 1528x1024; 190 FPS @ 764x512
    • ADC Sample Depth: 10/14-Bit; Output 8-Bit/14-Bit
    • Minimum Exposure Time: 9 µs
    • Maximum Exposure Time: 1200 sec
    • Pixel Binning: 1x1; 2x2
    • MicroLens: Onchip micro lens array
    • Guide Port: 5-pin Lemo aviation socket
    • Backfocus: Approx. 11mm
    • Camera Size: 1.25" eyepiece (31.6mm diameter)
    • Optic Window: AR+AR
    • Support Software: ASCOM; SharpCAP
    • Weight: 3 oz.



    Documentation

    QHY5III Series User's Manual
  • Product Guarantee

    We stand behind all the products we sell, and your satisfaction is our top priority. If you're not satisfied with the quality of your purchase, simply send the item back to us in its original packaging within 30 days of its delivery.

    Manufacturer Warranty

    2 years
