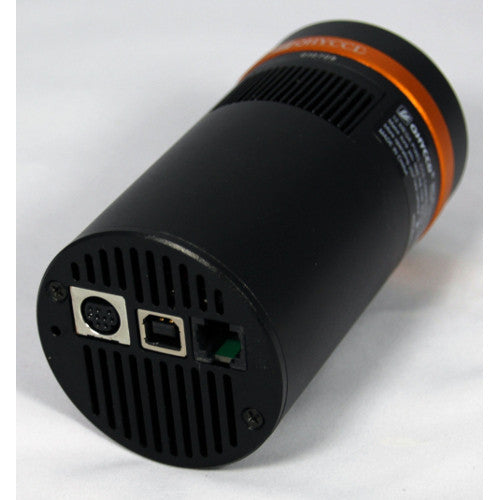

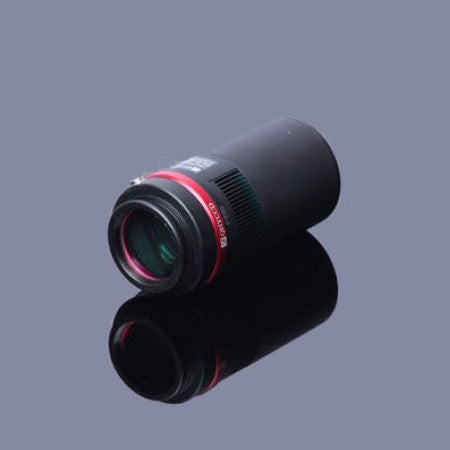

QHY8L One Shot Color CCD Camera
Because of its Sony ICX413AQ Super HAD CCD sensor with the addition of two-stage TEC cooling technology, the QHY8LOne Shot Color Camera generates minimal thermal noise. The ICX413AQ is a solid-state interline imaging sensor with 6.15 (effective) megapixels in a 28.4mm diagonal array of 7.8 µm square pixels. High sensitivity and low dark current are achieved through the adoption of R, G, and B primary color mosaic filters and HAS, or Hole Accumulation Diode, sensors.
Due to this APS-C one shot color camera is capable of cooling to -40ºC below ambient, you can achieve a clean image even when you take longer exposures of 30 minutes to 1 hour. The small diameter and lightweight design make this camera perfect for HyperStar imaging.
Only ships in contiguous USA.
- QHY8L One Shot Color CCD Camera
- 9-Pin Cable
- USB Cable
- USB and 9-Pin Cable Clip
- DC Adapter
- Regulated TEC Controller
- Silicon Gel Tube
- Adjustment Ring
Dimensions & Specifications
- Imaging Camera Series: QHY Cooled Color
- Sensor Model: Sony ICX413AQ CCD
- Optical Format: APS-C
- Sensor Dimensions: 25.10mm x 17.64mm
- Effective Sensor Area: 28.4mm diagonal
- Pixel Array: 3110 x 2030
- Pixel Size: 7.8 µm square
- Color Method: RGB BAYER film on CCD
- QE: 60% @ green; 50% @ blue and h-alpha
- Cooling: Two-stage TEC; built-in fan; & temperature sensor
- Max Cooling: -40ºC below ambient
- CCD Architecture: Interline
- ADC: 16-Bit
- Readout Noise: 6-10e @ 600 Kpixel/s
- Binning Modes: 1x1; 2x2; 4x4
- Microlensing: Yes on-chip
- ABG: -110dB
- Computer Interface: USB 2.0
- Guide Port: ST4 6PIN RJ11
- Power Supply: DC Adapter
- Camera Dimensions: 5.07" x 2.48"
- Weight: 14.1 oz.
