Revolution Imager R2 Astronomy Video Camera with 7” Viewing Screen & Free RI-USB Video Capture Adapter - RI-KITR2

No Ratings Yet

Write a Review


  • Your Price:
  • $299.99
  • + FREE Shipping

Leave us your email, and we’ll let you know when this item is back in stock.

  • Very sensitive video camera - Easy to install and use
  • Portable 7" LCD monitor
  • 12v Li-Ion Battery with charger runs both camera and LCD screen
  • 0.5x Focal Reducer dramatically widens the field of view
  • UV/IR filter included
  • Hand-held remote control to control the camera
  • Shock-proof carry case
  • All required cables included
Questions? Let our experts help!
  • Description

    Revolution Imager R2 Astronomy Video Camera with 7” Viewing Screen & Free RI-USB Video Capture Adapter

    The Revolution Imager R2 Kit package comes with everything you need to get the most out of your existing telescope. This video camera will work with just about any telescope on the market today. If you have a tracking mount, you will be able to take longer exposures and see fainter details, but even if you have an alt-azimuth mount or an equatorial mount without motor drives, you can still see “more” with the Revolution Imager R2. This is a nice package to use with your telescope for family enjoyment and educational purposes too.

    The Revolution Imager R2 Kit package includes almost everything you need to capture color images of the Universe and display them on the included 7” battery-powered monitor; all you need to add to this Kit is a telescope! The Revolution Imager is way more sensitive than your eyes alone and can show you faint details that you would never see otherwise. Just attach the viewing screen to the OTA, insert the camera into a 1.25” telescope eyepiece socket (whether it's a focuser, diagonal, or 1.25" eyepiece adapter), turn the battery on, and check out the view on the monitor! A wired remote control unit is included to allow you to alter exposure settings for better views, adjust colors, and more.

    This newest version, the Revolution Imager R2, has an easier menu than the original Revolution, as well as better contrast control, and better gain control. In addition to being more aesthetically pleasing, this new version does a maximum of 5.12-second exposures, stacks up to 6 images, and offers improved onboard image processing.

    The 7” Viewing Monitor really is a great system component, because you don’t need a computer to see what the Revolution Imager R2 is imaging! This is also wonderful for outreach, groups, or children and adults who have trouble seeing faint deep-sky objects through the eyepiece. It receives its power, as does the camera, from an included battery pack that provides approximately 4-5 hours of usable battery charge.

    The Revolution Imager R2 Kit System includes some accessories that will help you get the best "visual" observations through your particular telescope. If your scope has a focal ratio higher than f/4, or if you want wider views, simply attach the 0.5X Reducer by threading it onto the camera. Or, if your telescope is a refractor, you might be interested in incorporating the included UV/IR Cut filter, which will help with focusing and produce nicer-looking star images.

    Check out YouTube to see examples of customers using the Revolution Imager with different types of telescopes, for daytime viewing, solar viewing, and nighttime imaging.

    Comes with Free Video Capture Adapter Kit for a Limited Time!

    The USB Video Capture Adapter will allow you to capture images and videos from the Revolution Imager R2 so that you can share them with the world. This adapter also opens up the world of digital imaging software that will allow you to use software like SharpCap and AstroToaster to live-stack images from the Revolution Imager. Stacking allows you to create images that show fainter details in celestial objects, even from your own backyard. Another great software program is RegiStax, which will produce beautiful images of the planets and Moon. All three of these programs are available for free by going to their respective websites.

    This USB capture device uses the standard USB Video Capture driver that is included in most operating systems and should not require you to install the driver on the supplied CD. The folks at Revolution Imager have tested this device as "Plug and Play" on Windows 8, Windows 10, Mac OS X 10.9, 10.10 and Ubuntu Linux 14.04 LTS.

    Please Note: Our customers are awesome! Check out the 2 wiring diagrams included in our Images. James E Meyer has created a diagram for the Revolution Imager when used as a stand-alone unit, and another for wiring the Revolution Imager when used in conjunction with the Revolution DVR. Thanks, James!

    Also note that the wired remote has a "down" button that is not used for any adjustments, etc. in conjunction with the Revolution R2 Imager. The down button is not functional. However, your R2 will work perfectly fine without it.

    Supplier SKU

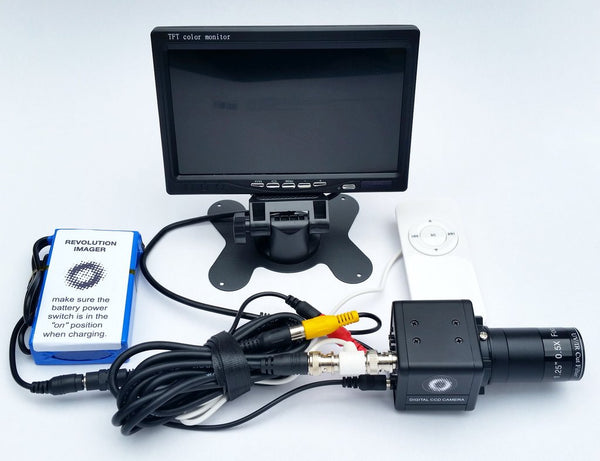

    What's Included

    • Revolution R2 Video Camera
    • Portable 7" LCD Monitor
    • 12v Li-Ion Battery with charger
    • 0.5x Focal Reducer
    • UV/IR Filter
    • Hand-held Remote Control
    • Shock-proof Carrying Case
    • All required Cables

  • Dimensions & Specifications

    • Model Number: RI-KITR2
    • Color or Monochrome: Color
    • Imaging Camera Series: Revolution Imager R2
    • Sensor Type: CCD
    • Camera Cooling: Natural Convection
    • CCD Architecture: Interline transfer
    • Computer Interface: USB 2.0
    • Camera Weight: 6 ounces
    • Camera Warranty: 1 Year
    • OS Compatibility: Windows
