Tele Vue Nagler Type 5 Telescope Eyepieces

Item #TVU034-N16

  • Your Price:
  • $340.00
  • + FREE Shipping
  • Nagler Type 5 eyepieces are designed to offer the largest true field of any 82 degree eyepiece
  • Available in 16mm, 20mm, 26mm and 31mm focal lengths
  • Blackened lens edges, anti-reflection threads that accept filters, and quality rubber eye cups.
  • Individually tested with a limited lifetime guarantee
Questions? Let our experts help!
  • Description

    Tele Vue Nagler Type 5 eyepieces include the 16mm, 20mm, 26mm and 31mm focal lengths.  "Naglers" are a run-away favorite with amateur astronomers all over the world. With a large 82 degree field of view, great eye relief, and amazingly sharp optics, it is no wonder that Al Nagler's "Space Walk" eyepieces are some of the most coveted telescope accessories of all time.

    To see the relative size difference between a 50 degree and an 82 degree eyepiece, lay a penny and a half dollar down on the table side by side. The difference is huge—the half dollar has almost three times the area of the penny! Al Nagler wanted to give his customers an experience that would be similar to looking at an object with the naked eye—except with lots more magnification!— and the 82 degree Nagler’s definitely hit the mark. After awhile, you will forget that you’re looking through an eyepiece at all, and you’ll feel fully immersed in the experience.

    All Nagler eyepieces have blackened lens edges, anti-reflection threads and rubber eye guards for maximum contrast. Innovative features, such as adapter skirts for 2” focusers on larger 1.25” models and rubber grip rings were invented by Tele Vue. Even the 2” to 1-1/4” barrel models have an additional feature allowing the addition of a 2” extension tube (EBX-2120), which permits the use of 2" and 1.25” filters. A 100% full field visual inspection on Tele Vue’s flat-field test instruments guarantees the performance of every Nagler eyepiece.

    Type 5 Nagler Eyepieces

    Tele Vue Nagler Type 5 eyepieces have focal lengths in the low to medium magnification range.  Al Nagler designed Type 5 eyepieces to offer the largest true field possible in an 82 degree apparent field eyepiece. A standard rubber eyecup is included, and most of the Type 5 eyepieces have enough eye relief to be Dioptrx compatible, allowing you to correct for near- or far-sightedness while at the eyepiece.

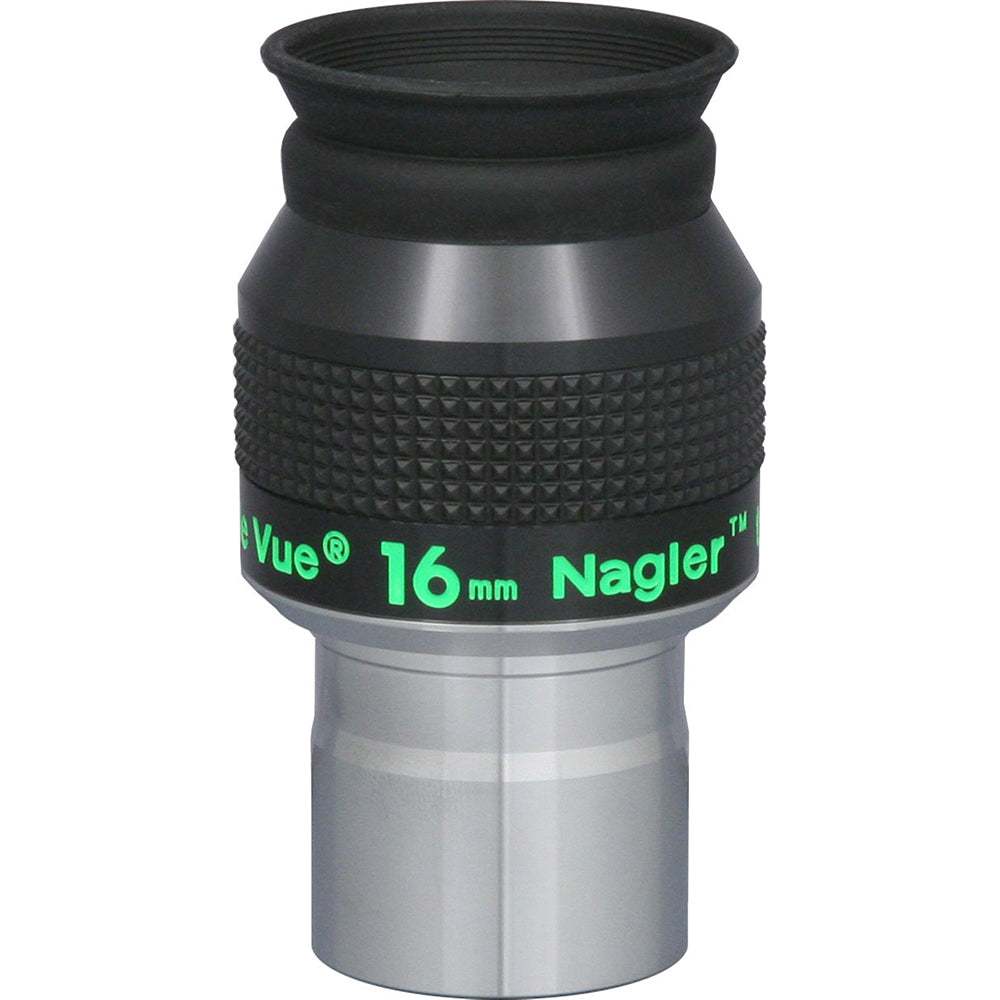

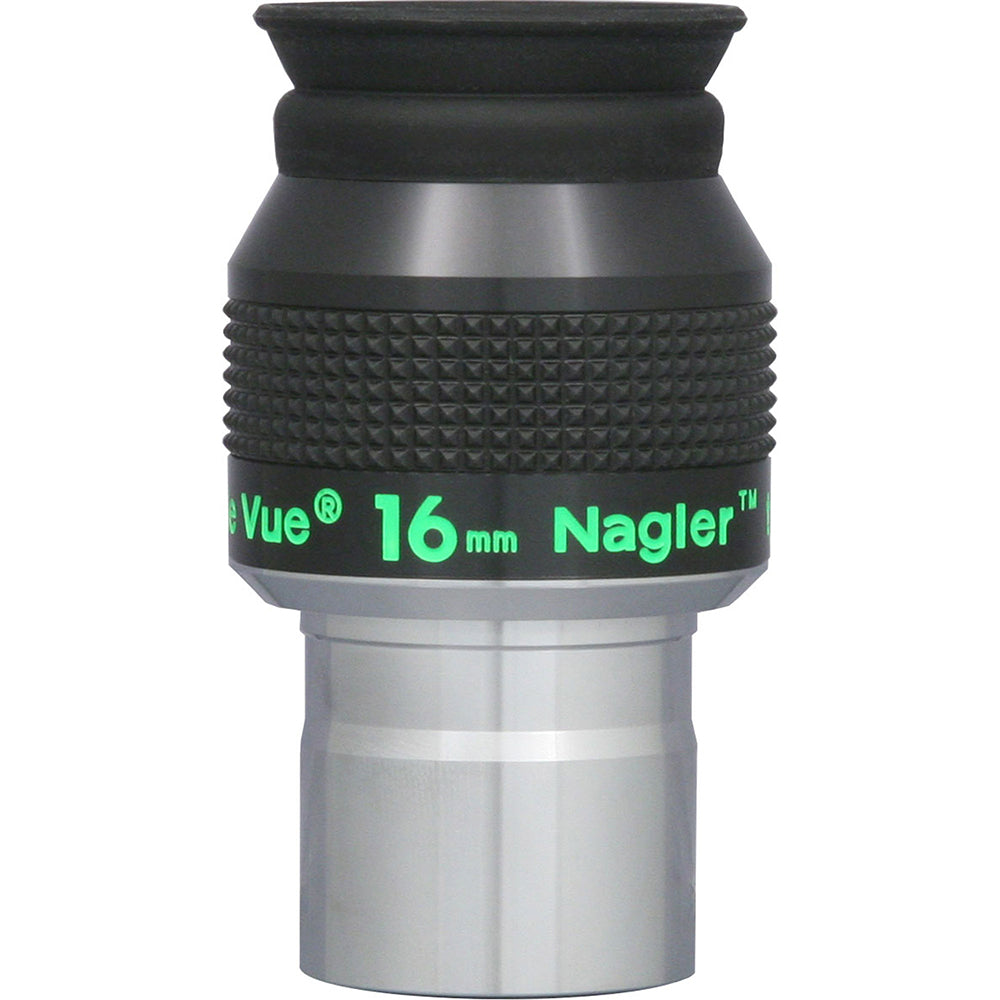

    16mm Type 5 Nagler

    Model: EN5-16.0
    Focal Length: 16mm
    Barrel Size: 1.25”
    Apparent Field of View: 82 degrees
    Eye Relief: 10mm
    Weight: 0.44 lb.
    Field Stop: 22.1mm
    Dioptrx Compatible: No

    20mm Type 5 Nagler

    Model: EN5-20.0
    Focal Length: 20mm
    Barrel Size: 2”
    Apparent Field of View: 82 degrees
    Eye Relief: 12 mm
    Weight: 1.04 lb.
    Field Stop: 27.4mm
    Dioptrx Compatible: Yes, with DEA-0001 Adapter

    26mm Type 5 Nagler

    Model: EN5-26.0
    Focal Length: 26mm
    Barrel Size: 2”
    Apparent Field of View: 82 degrees
    Eye Relief: 16mm
    Weight: 1.60 lb.
    Field Stop: 35mm
    Dioptrx Compatible: Yes

    31mm Type 5 Nagler

    Model: EN5-31.0
    Focal Length: 31mm
    Barrel Size: 2”
    Apparent Field of View: 82 degrees
    Eye Relief: 19mm
    Weight: 2.20 lb.
    Field Stop: 42mm
    Dioptrx Compatible: Yes


    Supplier SKU


    Shipping Restrictions

    Only ships in contiguous USA.

  • Dimensions & Specifications

  • Product Guarantee

    We stand behind all the products we sell, and your satisfaction is our top priority. If you're not satisfied with the quality of your purchase, simply send the item back to us in its original packaging within 30 days of its delivery.

    Manufacturer Warranty

    Default manufacturer warranty.

    Return & Exchange Policy

    At our site, returns are easy! You may return new, unused, and resalable items for a refund or exchange. Simply ensure that the item is returned in its original product packaging within 30 days of delivery.

Customer Q&A

1 - 5 of 12
1 2
  • Q1: I am not sure which Televue eyepiece series to purchase, Nagler, Panoptic or Radian. I wear glasses occasionally for distance, but not for viewing through binoculars. I will be buying my first telescope from you shortly and am planning to buy either the Meade LX200GPS 10, 12 or 14" with UHTC. I want to decide how much money I am willing to spend first. I will want a set of Televue eyepieces for my new scope due to the excellent reputation and reviews I have read. This will be my first telescope. I notice the Naglers have the widest field of view and the shortest eye relief. I assume the Radian have the narrowest field of view with the longest eye relief. Any suggestions?

    A: If this is your first scope I suggest going with the Nagler. Even though they will have the shortest eye relief the extra wide field of view will come in very handy as you are trying to learn how to use your scope. The easiest way to say it is that the wider the field of view the more forgiving it is when aligning on very distant objects.

  • Q2: These eyepieces would work with my Celestron AstroMaster 70, correct?

    A: Yes the 1.25" TeleVue Nagler Telescope Eyepieces will work with a Celestron AstroMaster 70.
