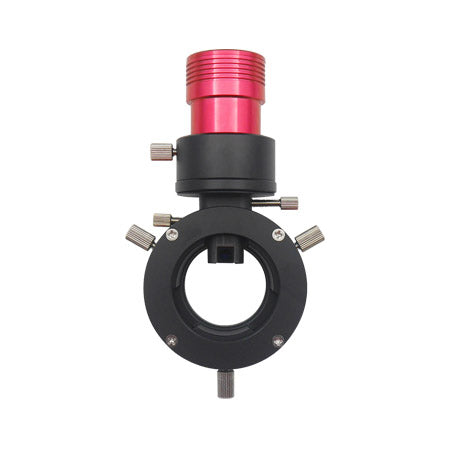

ZWO Off-Axis Guider - OAG
ZWO ASI120MM Mini Monochrome CMOS Imaging Camera

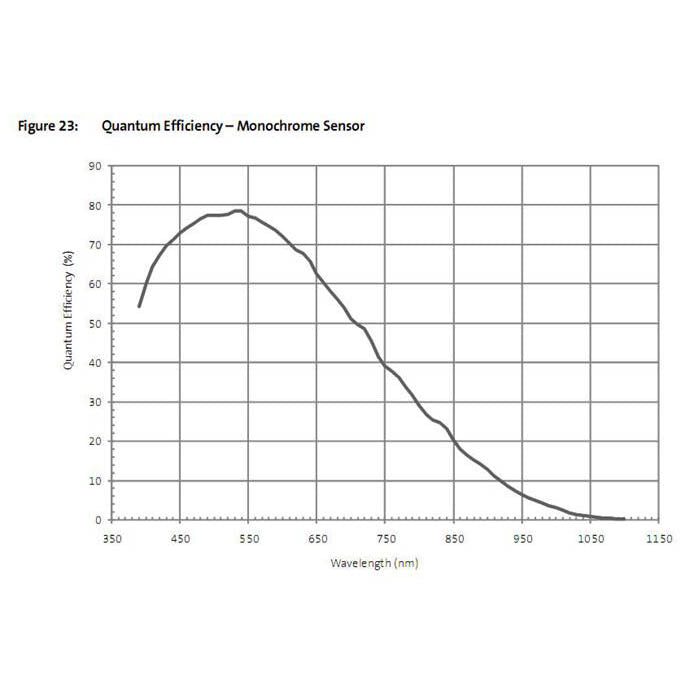

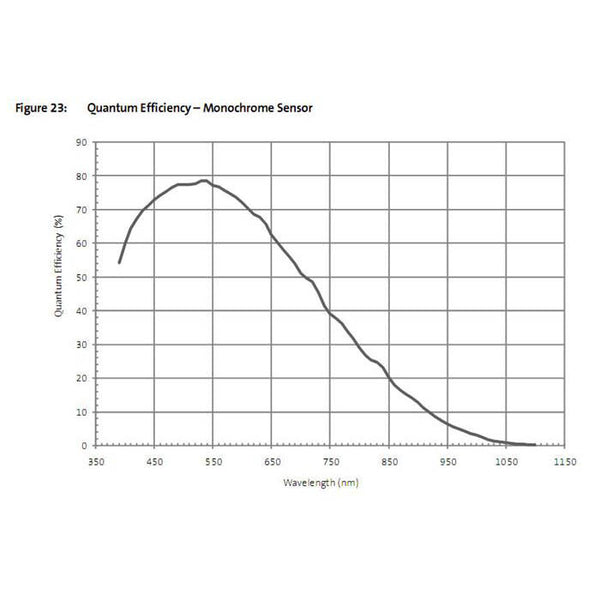

This ASI120MM Mini Camera from ZWO incorporates a 1/3" AR0130CS monochrome sensor with 3.75 µm square pixels in a 1280 x 960 pixel array. It offers 12-Bit ADC with a peak QE of approximately 75%.

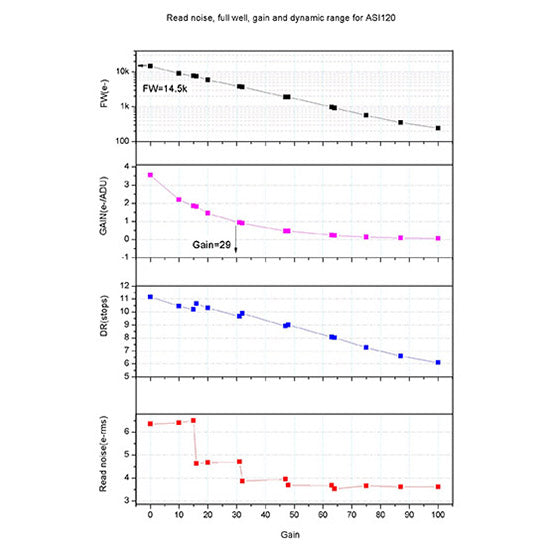

With low read noise, high dynamic range, 75% peak QE, AR protective window, and much more, the ZWO ASI120 Monochrome Mini provides exceptional performance for planetary imaging and guiding.

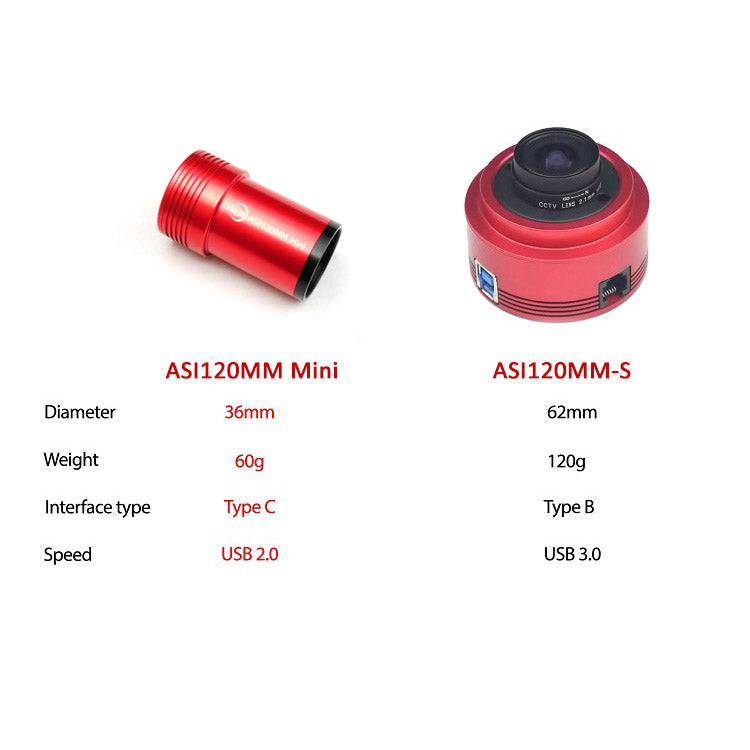

ASI120 Mini vs. ASI120MM-S
In comparison with the larger ASI120MM-S camera, the ASI120MM Mini is lighter, more compact, and is capable of reaching focus at the same position as the eyepiece.

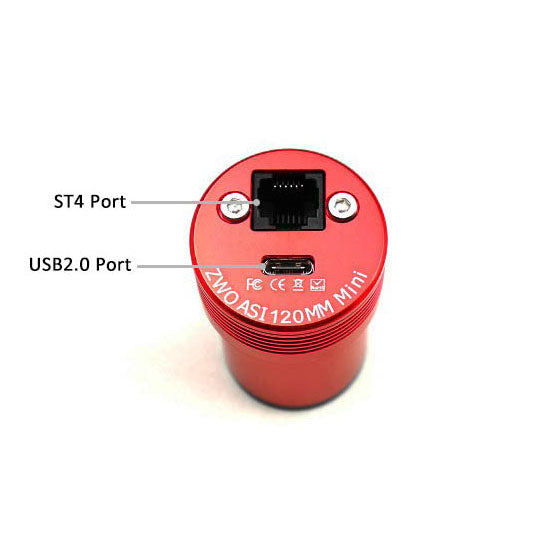

USB 2.0 and ST4 Ports
ZWO Mini cameras feature one USB2.0 type C port. Type C ports are optimally suited for mobile phones as the positive and negative sides of the adapter are not important. The ST4 port connects the ASI120 Mini directly to the mount's autoguiding port.
Main image depicts the ASI174 Mini Camera from two different angles. This product is for one camera only.

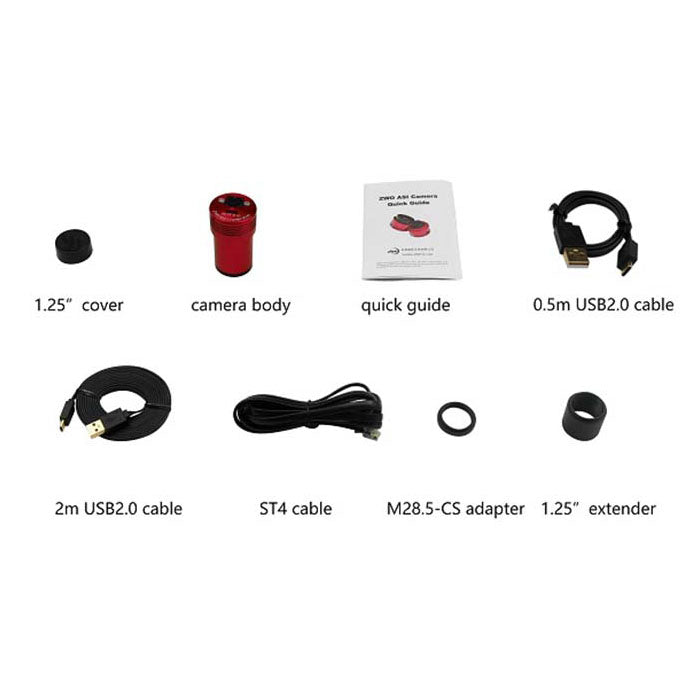

- ZWO ASI120 Monochrome Mini CMOS Imaging Camera Body
- 2 m USB 2.0 Cable
- 0.5 m USB 2.0 Cable
- ST4 Cable
- 1.25" Cover

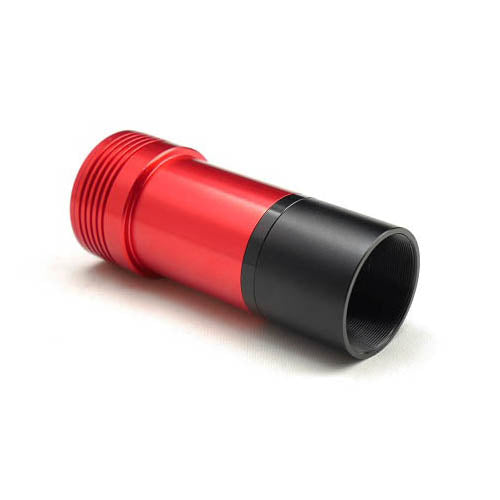

- 1.25" Extender

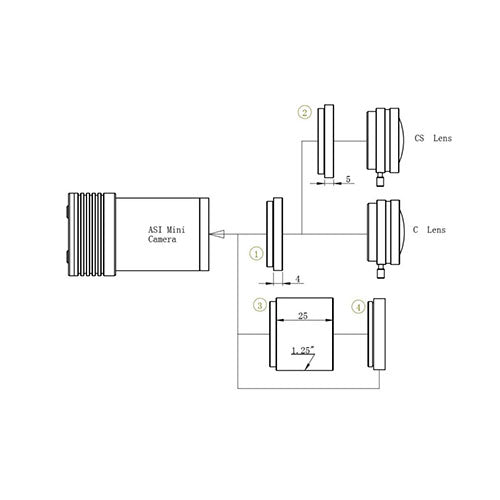

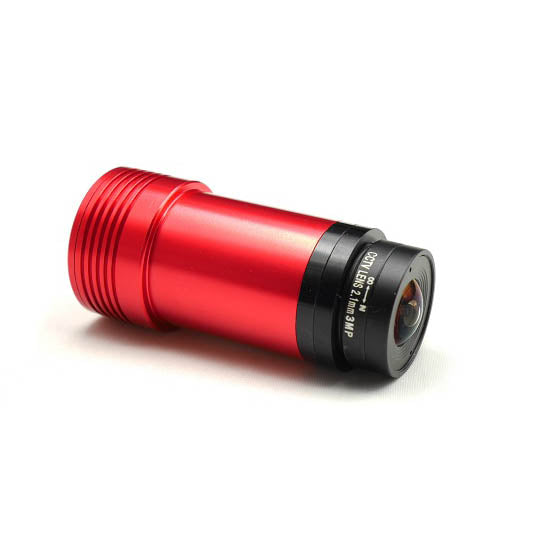

- M28.5-CS Adapter
- Quick Start Guide

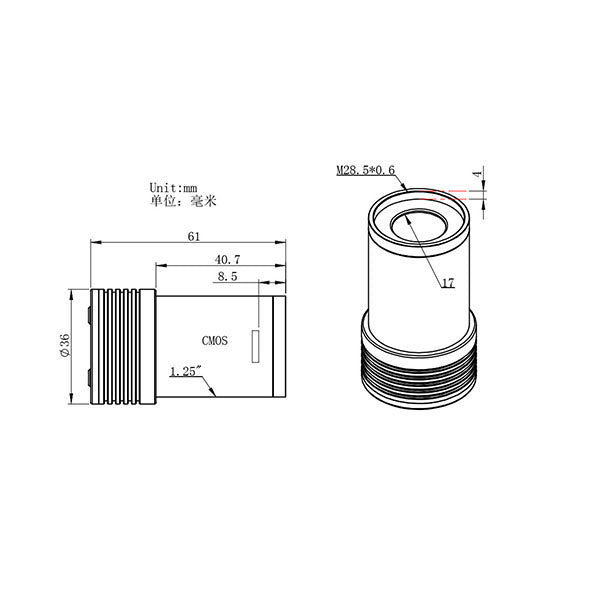

Dimensions & Specifications
- Sensor: 1/3" AR0130CS CMOS
- Resolution: 1.2 MP
- Pixel Size: 3.75 µm x 3.75 µm
- Pixel Array: 1280 x 960
- Minimum Exposure: 64 µs
- Maximum Exposure: 1000 seconds
- ROI: Supported
- ST4 Guide Port: Yes
- Focus Distance to Sensor: 8.5 mm
- Shutter Type: Rolling
- Protect Window: AR coated
- Interface: USB 2.0
- Bit Rate: 12bit output (12bit ADC)
- Adapter: 1.25" M28.5x0.6
- Dimensions: 36 mm x 61 mm
- Weight: 60 g (3.1 oz.)
- Working Temperature: -5ºC - 45ºC
- Storage Temperature: -20ºC - 60ºC
- Working Relative Humidity: 20% - 80%
- Storage Relative Humidity: 20% - 95%
- Operating System Compatibility: Mac; Windows; Linux
- Supported Resolution (Binning Mode 1x1): 1280 x 960 @ 35 FPS; 1280 x 720 @ 46 FPS; 1024 x 768 @ 54 FPS; 800 x 600 @ 90 FPS; 640 x 480 @ 118 FPS; 320 x 240 @ 224 FPS
- Supported Resolution (Binning Mode 2x2): 640 x 480 @ 35 FPS
