ZWO ASI120MM-S Super Speed Monochrome CMOS Imaging Camera Highlights
- The ZWO ASI120MM-S monochrome imaging camera has a USB 3.0 interface, for download speeds of 72fps at full resolution, that’s twice as fast as USB 2.0!
- Capable of imaging deep sky objects as well as the Sun, the Moon & the planets. At this price point, that’s amazing.
- The 1.2 megapixel CMOS sensor sports 3.75 µm square pixels in a 1280 x 960 array.
- The ZWO ASI120-S comes with a 150º lens. Thread it on and you have an All-Sky Camera for some super wide angle night sky shots.
- Autoguider is easily attached via the built-in ST4 port.
- The ZWO ASI120-S body is crafted of CNC machined aluminum. It looks great and will hold up to heavy use.
- Everything you will need to control your ZWO camera is available and easily downloadable in one centralized location on the ZWO website. Click here for ZWO Software Downloads.
The ZWO ASI120-S Super Speed Monochrome CMOS Camera is an incredibly flexible device; perfect for astro-photographers that want a superior all-in-one camera that doesn’t break the bank. This high speed model is based on the very popular ASI120MM camera, but it has been updated to a very fast USB 3.0 interface, which increases the download speed to double that of USB 2.0…quite an improvement! Here is a list of frames per second (fps) rates at various resolutions when connected to USB 3.0:
- 72fps @ 1280 x 960
- 90 fps @ 1024 x 768
- 141 fps @ 640 x 480
- 212 fps @ 480 x 320
- 256 fps @ 320 x 240
The ZWO ASI120-S is so flexible! It can be used to produce great images of the Moon, the Sun (with proper filtration) & the planets as well as deep-sky objects such as galaxies, star clusters and nebulae. The engine behind this camera is the CMOS AR0130CS 1/3" Sensor, which offers a top end resolution of 1280 x 960 pixels or 1.2 megapixels. Long exposure times are supported up to 1,000 seconds, or 16.66 minutes. As we mentioned earlier, another impressive feature of the ZWO ASI120-S is its ability to deliver up to 256 frames per second (FPS) at reduced resolution settings and a substantial 72 FPS at full resolution. This wide range of capture resolution settings allows amateur astronomers to conduct planetary and deep sky imaging without having to switch cameras.

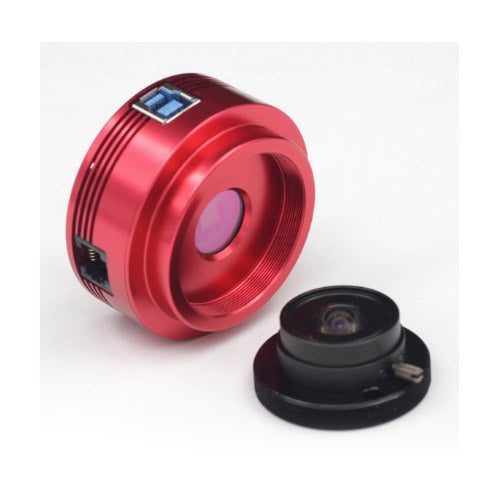

Have you seen all the wide-field images taken lately with an All-Sky Camera? These beautiful pictures show the entire Milky Way in all its glory, or capture images of meteor showers, with particles streaking from the radiant in all directions. With the ZWO ASI120-S, there is no need to buy a separate all-sky camera! A 150º lens comes standard with the ASI120MM-S, and all you have to do is thread the lens onto the camera body (shown in one of the pictures to your left) and, viola! You have an All Sky Camera!
Besides the 150º lens, there are other accessories included with the ZWO ASI120-S that make it ready to go, right out of the box. A CD is included that contains the ZWO User Manual, Windows Camera Driver, ASCOM Driver, SharpCap Image Capturing Software, FireCapture Image Capturing Software and Stakkert 2 Stacking Software. You will also receive a protective window, a USB 3.0 cable, a ST4 guider cable, a M42 & 1.25” Nosepiece, and a 1.25” cover.
- ZWO ASI120MM-S Super Speed USB 3.0 Monochrome CMOS Astronomy Camera
- 150º Lens Adapter for All-Sky Camera Use
- 1.25" Nosepiece
- 1.25" Cover
- 2 m USB 3.0 Cable
- 2 m ST4 Guide Cable
- Quick Guide

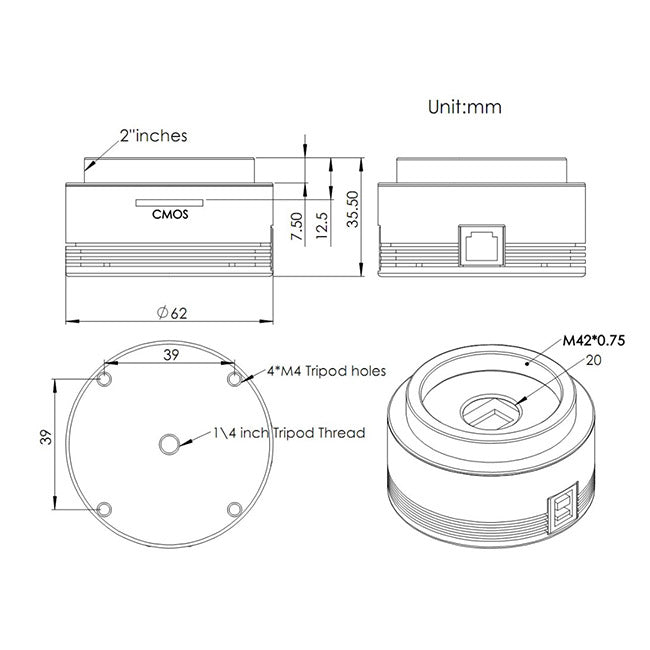

Dimensions & Specifications
- Sensor: 1/3” CMOS monochrome MT9M034
- Resolution: 1.2 MP
- Pixel Array: 1280 x 960
- Pixel Size: 3.75 µm x 3.75 µm
- Minimum Exposure: 64 µs
- Maximum Exposure: 1000 seconds
- Camera Cooling: Natural Convection
- CCD Architecture: Frame Transfer
- ROI: Supported
- Interface: USB 3.0
- Bit Rate: 12bit output (12-bit ADC)
- Adapter: 2” to 1.25”/M42x0.75
- Dimensions: 62mm x 28mm
- Weight 3.5 oz.
- Working Temperature: -5ºC to 45ºC
- Storage Temperature: -20ºC to 60ºC
- Working Relative Humidity: 20% - 80%
- Storage Relative Humidity: 20% - 95%
