ZWO ASI1600MM Pro Cooled Monochrome Astronomy Camera - ASI1600MM-P

No Ratings Yet

Write a Review

Item #ZWOA-ASI1600MM-P

  • Your Price:
  • $1,280.00
  • + FREE Shipping

Leave us your email, and we’ll let you know when this item is back in stock.

  • ZWO ASI1600MM Pro Cooled Cameras offer exceptional astro-imaging performance due to their low read noise, low dark current, and high dynamic range
  • Incorporates a Panasonic MN34230 model monochrome sensor
  • Data transfer stability is increased via 256MB DDR3 memory buffer
  • Extremely deep cooling at -40ºC below ambient is provided by this camera's two-stage TEC cooling system
Questions? Let our experts help!
  • Description

    ZWO ASI1600MM Pro Cooled Monochrome Imaging Camera

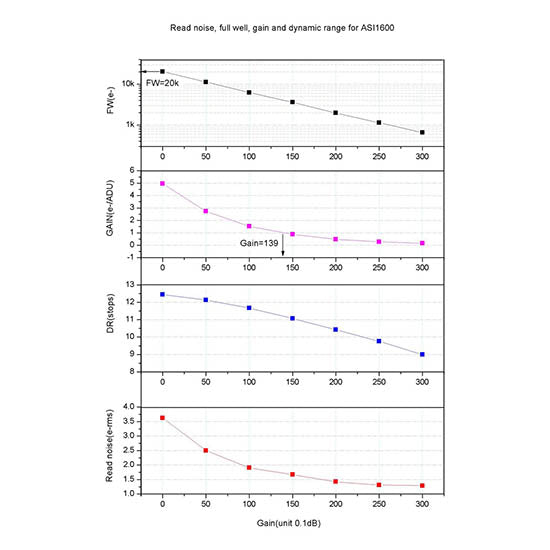

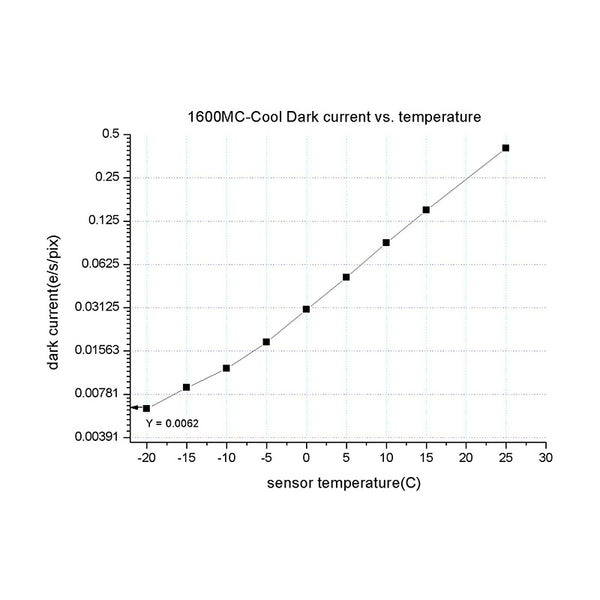

    The ASI1600 Pro cameras from ZWO features outstanding astrophotography performance by using low read noise, low dark current, and high dynamic range. Despite a 12-bit ADC, this camera provides 12.5 stops of dynamic range due to its ultra-low read noise, an improvement over even the KAF8300.

    Four screws are used to seal the ASI1600 Pro's chamber. This design has been confirmed by full testing to be extremely stable. The ASI1600 Pro does not suffer from dew problems and still operates normally even when humidity is high.

    DDR Memory Buffer

    For better data transfer stability without amp-glow caused by slow speed data transfer during readout using a USB2.0 port, the ASI1600 Pro includes an upgraded PCB board with one 256MB DDR3 memory buffer. This DDR memory buffer is the key difference that separates ASI "Pro" cameras from ASI "Cool" cameras.

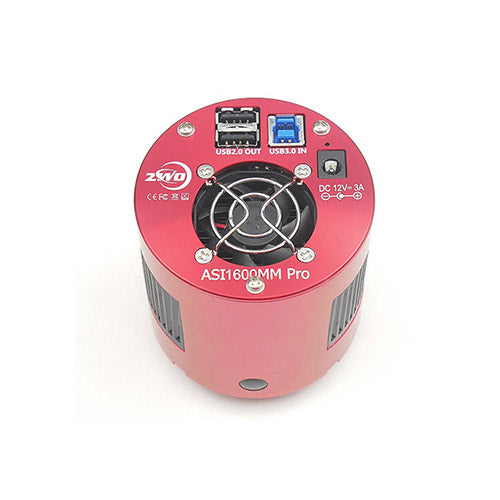

    USB 3.0 Port & USB 2.0 Hub

    USB 3.0 port supplies 5 gb of bandwidth to allow the ASI1600 Pro to run at 14.7 fps in normal 12bit mode, or 19 fps in high speed 23bit mode at full resolution (11.7 MP). For a cooling power supply, ZWO recommends either a 12V at 3A-5A or more DC adapter (2.1*5.5, center positive), or a 9-15V battery.

    USB 2.0 HUB links up numerous accessories like a filter wheel, guide camera, and electronic focuser, for easier cable management. The ASI1600 Pro comes with two short 0.5 m USB2.0 cables. An external supply provides the power source when connected.

    Cooling System

    This camera features a two-stage TEC cooling system for very deep cooling at -40ºC below ambient. An external AC-DC power supply (sold separately) is necessary to power the cooler.





    Supplier SKU

    ASI1600MM-P

    What's Included

    • ZWO ASI1600MM Pro Cooled Mono Imaging Camera
    • Camera Bag
    • 21mm Extender
    • 16.5mm T2-M48 Extender
    • 1.25" Nosepiece
    • 1.25" Cover
    • M42-M48 Adapter
    • Two 0.5 m USB 2.0 Cables
    • T2-1.25" Adapter
    • Two Spacers
    • USB 3.0 Cable
    • Quick Guide

  • Dimensions & Specifications

    • Sensor: 4/3" Panasonic MN34230 CMOS
    • Diagonal: 21.9mm
    • Resolution: 11.7 MP
    • Pixel Array: 4656 x 3520
    • Pixel Size: 3.8 µm
    • Maximum FPS at Full Resolution: 23 fps
    • Shutter: Rolling
    • Minimum Exposure: 32 microseconds
    • Maximum Exposure: 2000 seconds
    • Read Noise: 1.2e @30db gain
    • QE Peak: 60%
    • Full Well Capacity: 20ke
    • ADC: 12bit
    • DDRIII Buffer: 256 MB
    • Interface: USB 3.0/USB 2.0
    • Adapter: 2"/1.25"/M42x0.75
    • Protect Window: AR
    • Diameter: 78mm
    • Weight: 14.5 oz.
    • Back Focus Distance: 6.5mm
    • Cooling: Regulated two-stage TEC
    • Delta T: 40-45 degrees below ambient
    • Cooling Power Consumption: 12V at 2A max
    • Working Temperature: -5°C - 45°C
    • Storage Temperature: -20°C - 60°C
    • Working Relative Humidity: 20% - 80%
    • Storage Relative Humidity: 20% - 95%
