ZWO ASI1600MM USB 3.0 Monochrome Imaging Camera - ASI1600MM

No Ratings Yet

Write a Review

Item #ZWOA-ASI1600MM

  • Your Price:
  • $999.00
  • + FREE Shipping

Leave us your email, and we’ll let you know when this item is back in stock.

  • Although specifically designed for deep sky imaging, the ZWO ASI1600MM Monochrome CMOS Astronomy Camera is also an excellent tool for planetary astrophotography
  • Incorporates a 4/3" CMOS monochrome imaging sensor with 16 MP resolution and a 4656 x 3520 array made up of 3.8 µm square pixels

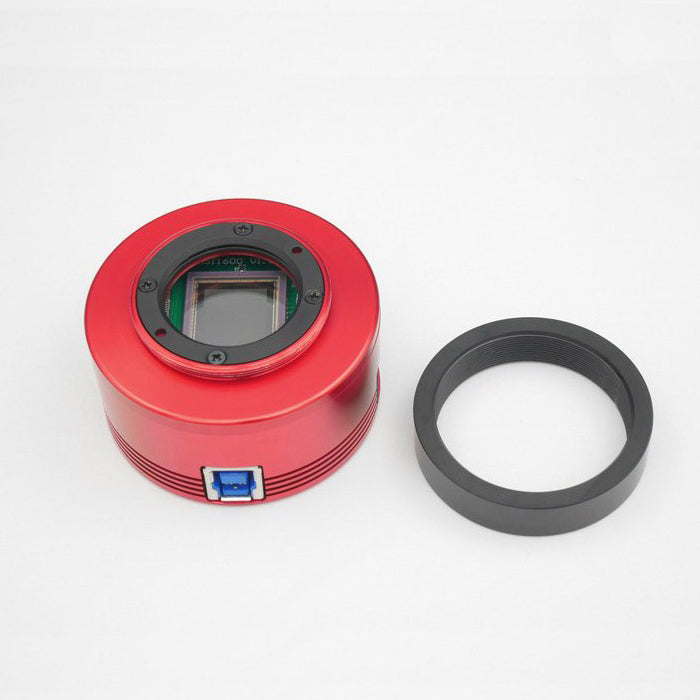

  • Back focus can be reduced to a mere 6.5mm with the use of an included removable M42 adapter
  • Other attributes include a high speed USB 3.0 port, ST4 guide port, 1/4" tripod thread mount, AR window, and more
Questions? Let our experts help!
  • Description

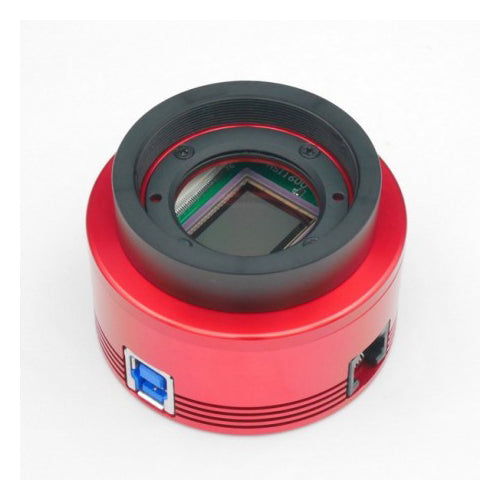

    ZWO ASI1600MM Monochrome CMOS Imaging Camera


    The ZWO ASI1600MM is the first camera by ZWO that is designed specifically for deep-sky imaging, but it also does a great job on the planets as well! The ASI1600MM uses a monochrome 4/3" CMOS 16 MP sensor with a 4656 x 3520 array of 3.8 µm pixels. This sensor has extremely low read noise of 1.2e and has a maximum of 23 FPS at full resolution.

    The ZWO ASI1600MM body has been updated to include a removable M42 adapter that can reduce back focus to just 6.5 mm. A high speed USB 3.0 port, an ST4 guide port, a 1/4” tripod thread mount on the back, and an AR window are also features of this ZWO DSO camera. The included software is compatible with Mac, Windows, and Linux operating systems. Everything you will need to control your ZWO camera is available and easily downloadable in one centralized location on the ZWO website. Click here for ZWO Software Downloads.





    Supplier SKU

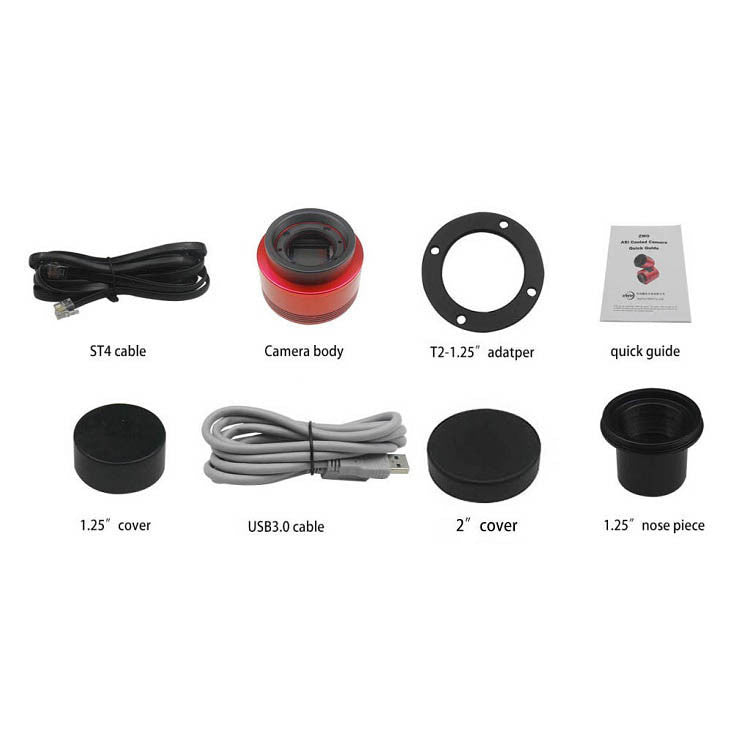

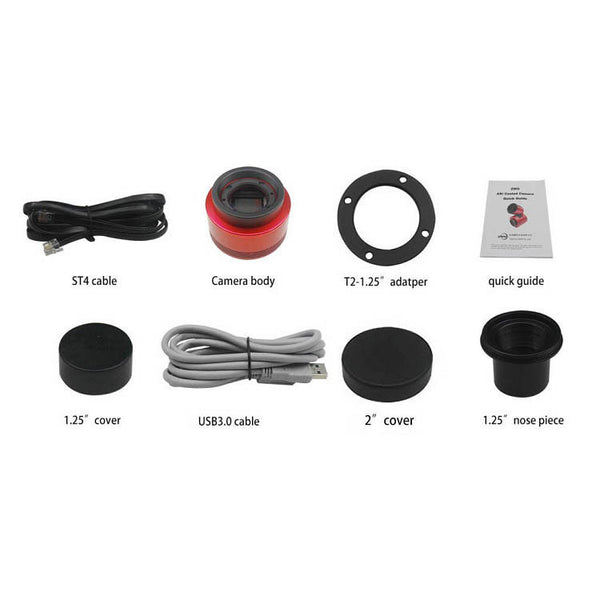

    What's Included

    • ZWO ASI1600MM USB 3.0 Mono Imaging Camera
    • ST4 Cable
    • T2-1.25" Adapter
    • USB 3.0 Cable
    • 1.25" Cover
    • 2" Cover
    • 1.25" Nosepiece
    • Quick Guide

  • Dimensions & Specifications

    • Sensor: 4/3" Monochrome CMOS
    • Resolution 16 MP
    • Diagonal: 21.9mm
    • Image Array: 4656 x 3520
    • Pixel Size: 3.8 µm square
    • Max Frame Rate at Full Resolution: 23 FPS
    • Window: AR
    • Guide Port: ST4
    • Minimum Exposure: 32 µs
    • Maximum Exposure: 2000 sec

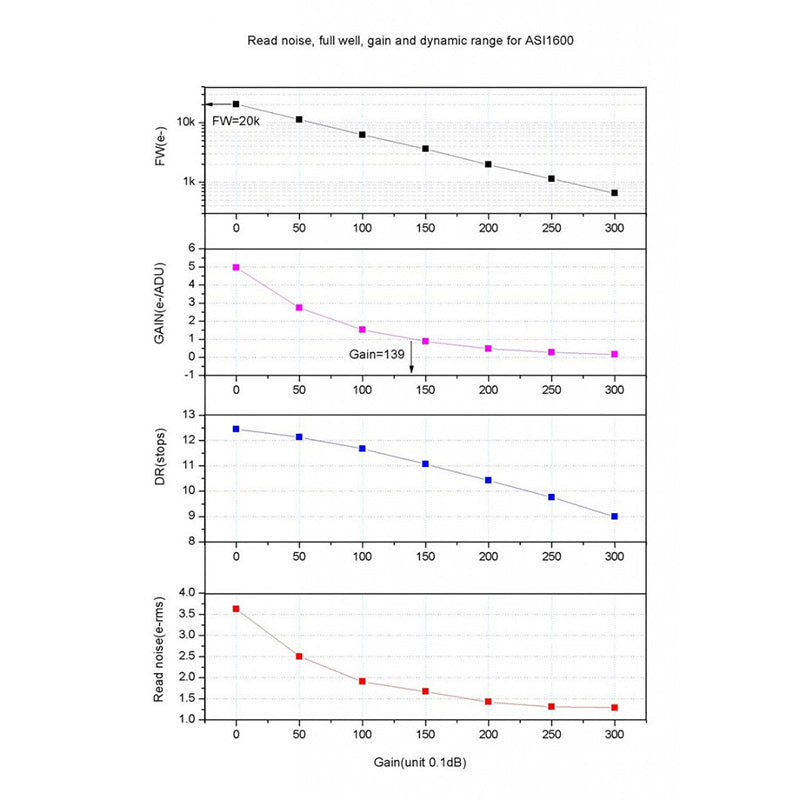

    • Read Noise: 1.2e at 30db gain
    • Full Well: 20ke

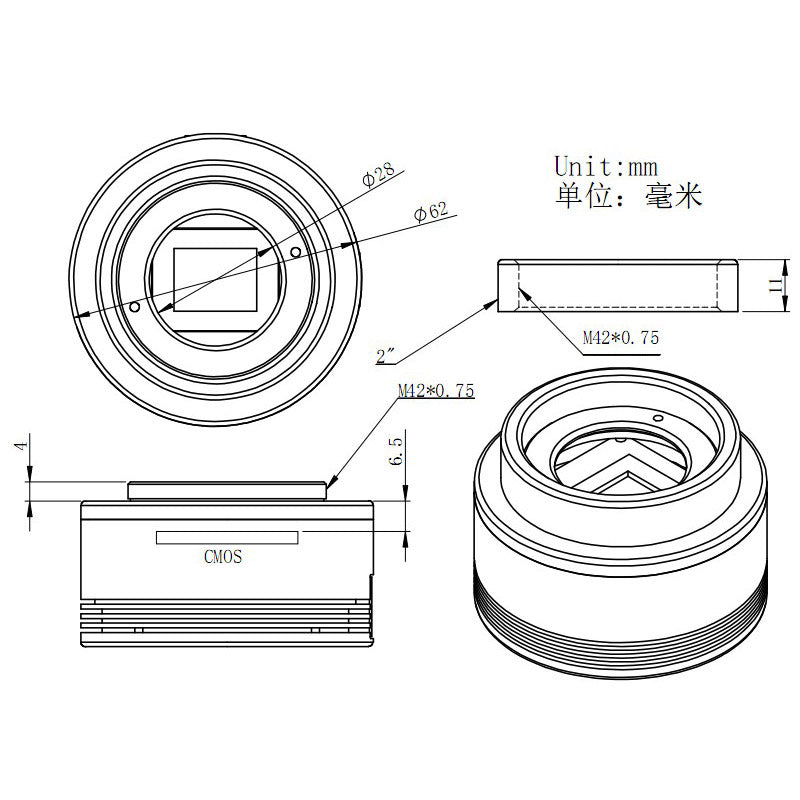

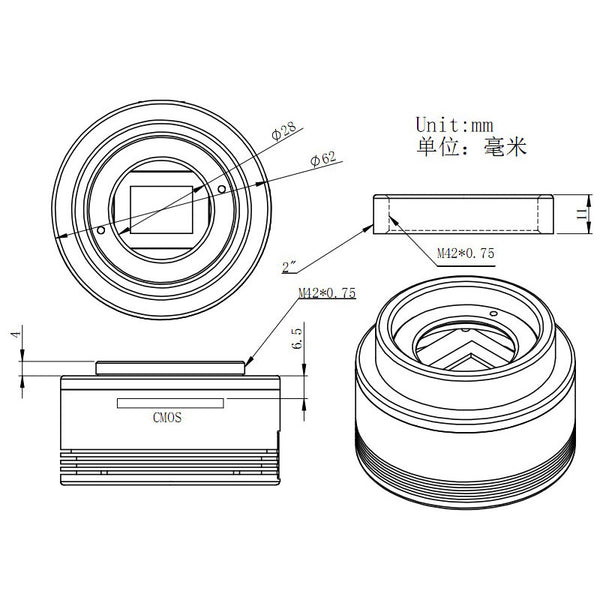

    • Back Focus Distance: 6.5mm
    • Interface: USB 3.0/USB 2.0
    • ADC: 12bit

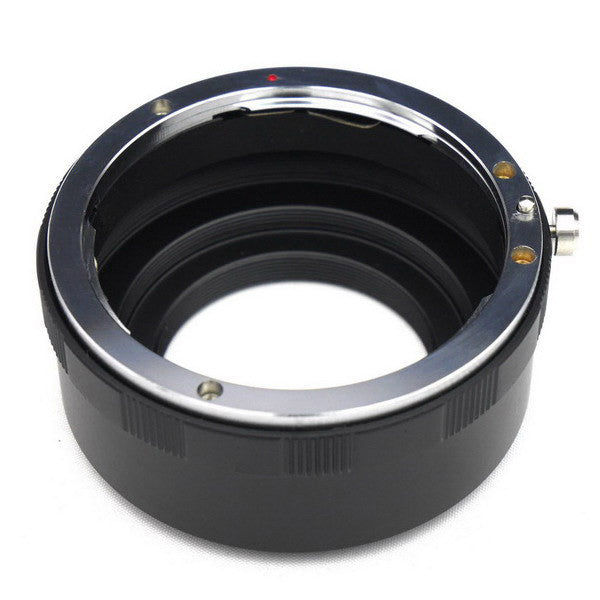

    • Adapter: 2” to 1.25”/M42x0.75
    • Dimensions: 62mm x 41mm
    • Weight: 140 g (4.9 oz.)
    • Working Temperature: -5ºC - 45ºC
    • Working Relative Humidity: 20% - 80%
