ZWO ASI183MM USB3.0 Monochrome Astronomy Camera - ASI183MM

No Ratings Yet

Write a Review

Item #ZWOA-ASI183MM

  • Your Price:
  • $699.00
  • + FREE Shipping

Leave us your email, and we’ll let you know when this item is back in stock.

  • The ZWO ASI183 Monochrome Astronomy Camera employs a Sony back-illuminated Exmor R IMX183CLK-J CMOS monochrome sensor with small 2.4 µm square pixels in a 5496 x 3672 array
  • This camera boasts an incredible peak QE of 84% to get more out of the light gathered by the sensor
  • High speed readout enables focusing in real time, true lucky exposures of small objects, planetary imaging of large-scale planets, and more
  • Includes USB 3.0 port for full resolution operaton at 19 fps in 12bit or high speed 10bit mode, as well as an ST4 port for guiding
Questions? Let our experts help!
  • Description

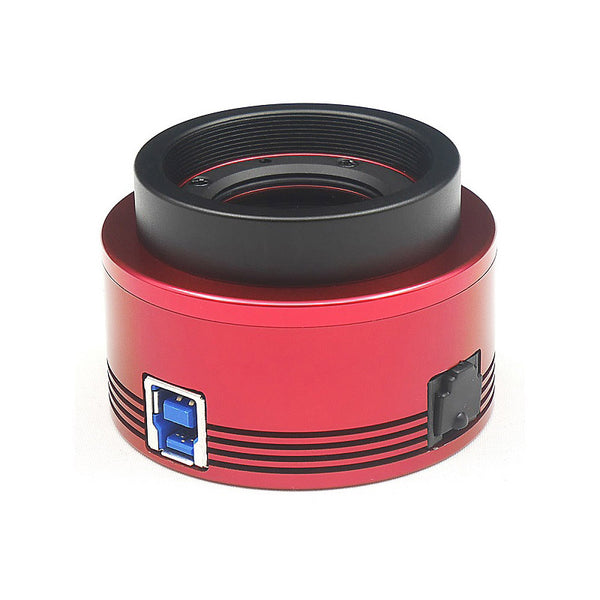

    ZWO ASI183MM USB 3.0 Monochrome Astronomy Camera

    ZWO's ASI183 camera series represents one of the most sensitive cameras ZWO has developed today. For such a small pixel size (2.4 µm), these cameras have a very large full well capacity (15000e), as well as 1.6e read noise @ 30db, and 12 stops dynamic range @ gain=0. The ASI183MM uses an extremely sensitive back-illuminated Sony IMX183CLK-J CMOS sensor with 20.18 MP effective pixels. It also makes use of firmware components to reduce amplifier glow for peak astrophotography performance.

    High Speed

    Fast FPS is beneficial for both solar and lunar imaging, along with live viewing/EAA. In addition, high-speed readout may be used for real-time focusing, real lucky imaging of small objects like double stars, planetary imaging of the solar system's major planets, and much more.

    10-Bit ADC

    • 5496 x 3672 - 19 fps
    • 3840 x 2160 - 41.04 fps
    • 1920 x 1080 - 80.10 fps
    • 1280 x 720 - 117.30 fps

    12-Bit ADC

    • 5496 x 3672 - 19 fps
    • 3840 x 2160 - 36.12 fps
    • 1920 x 1080 - 70.48 fps
    • 1280 x 720 - 103.23 fps

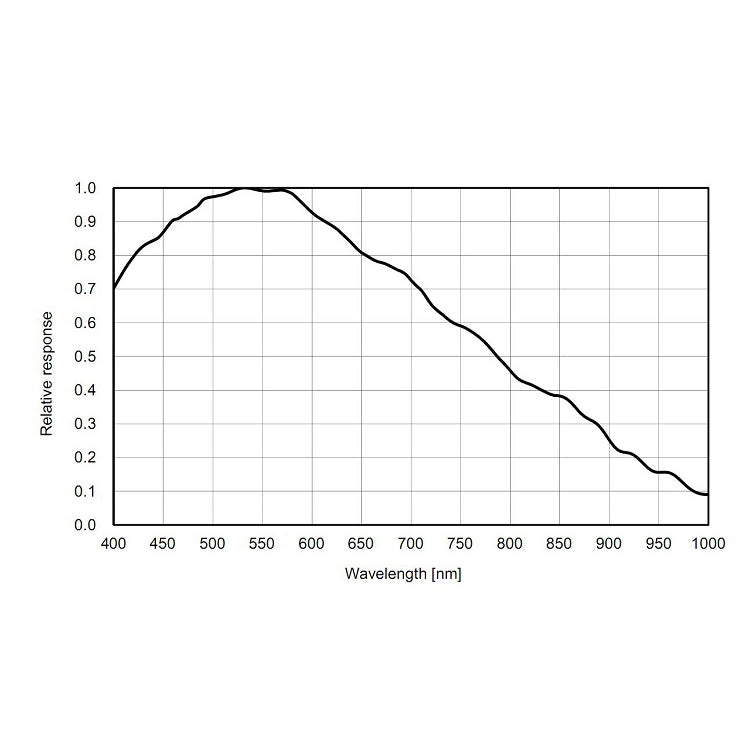

    High QE

    Since it features a monochrome sensor with Sony back-illuminated Exmor R technology, the ASI183MM Monochrome Camera offers superb performance for deep sky applications. Peak QE for ASI183 cameras reaches an impressive 84%! QE remains at over 60%, even in the H-Alpha channel. With a high QE, a greater amount of light that enters your telescope and makes it to the sensor is actually used. An 84% peak QE and no less than approximately 50% within the visible spectrum enhances signal quality by allowing the ASI183 to utilize a higher percentage of light that reaches it.

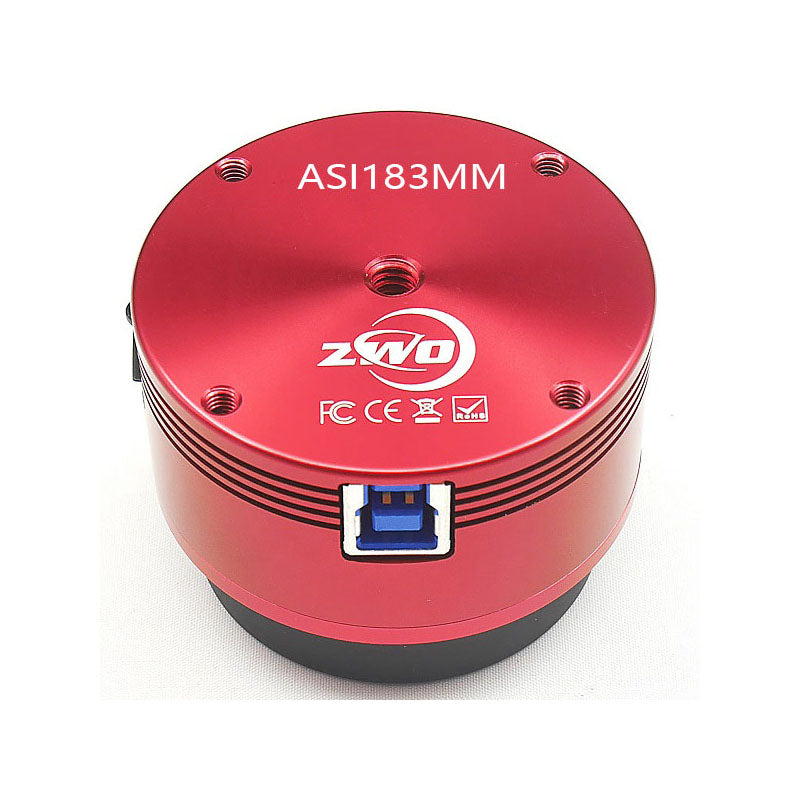

    USB 3.0 and ST4 Ports

    USB 3.0 Port: Offers a bandwidth of 5 gb to allow full resolution operation at 19 fps in normal 12bit mode, or 19 fps in high speed 10bit mode.

    ST4 Port: Enables guiding by connecting to a mount's auto guide port.







    Supplier SKU

    ASI183MM

    What's Included

    • ZWO ASI183MM USB 3.0 Monochrome Imaging Camera
    • USB 3.0 Cable
    • ST4 Guide Cable
    • 1.25" Nosepiece
    • 1.25" Cover
    • 2" Cover
    • T2-1.25" Adapter
    • Quick Guide

  • Dimensions & Specifications

    • Sensor: Sony 1" IMX183CLK-J CMOS monochrome
    • Diagonal: 15.9mm
    • Resolution: 20.18 MP
    • Image Array: 5496 x 3672
    • Pixel Size: 2.4 µm square
    • Bayer Pattern: None
    • Shutter: Rolling
    • Minimum Exposure: 32 µs
    • Maximum Exposure: 2000 seconds
    • ROI: Supported
    • ST4 Guide Port: Yes
    • Read Noise: 1.6e @30db gain
    • Peak QE: 84%
    • Full Well Capacity: 15ke
    • ADC: 12-Bit
    • Interface: USB 3.0/USB 2.0
    • Adapter: 2"/1.25"/M42x0.75
    • Dimensions: 62mm x 36mm
    • Weight: 4.2 oz. (120 g) without lens
    • Working Temperature: -5°C - 45°C
    • Storage Temperature: -20°C - 60°C
    • Working Relative Humidity: 20% - 80%
    • Storage Relative Humidity: 20% - 95%
