ZWO ASI290MM USB 3.0 Monochrome Imaging Camera - ASI290MM

No Ratings Yet

Write a Review

Item #ZWOA-ASI290MM

  • Your Price:
  • $369.00
  • + FREE Shipping

Leave us your email, and we’ll let you know when this item is back in stock.

  • This versatile ASI290MM USB 3.0 Monochrome CMOS Camera from ZWO is optimally suited for lunar, planetary, solar, and even deep sky imaging
  • Incorporates a 1/3" Sony IMX290/291 CMOS imaging sensor with 2.9 µm square pixels in a pixel array of 1936 x 1096
  • Features of this camera include a USB 3.0 port, ST4 guide port, 1/4" tripod thread mount, and an AR window
  • Sony IMX290/291 employs STARVIS back illuminated technology for enhanced visible and IR regions
Questions? Let our experts help!
  • Description

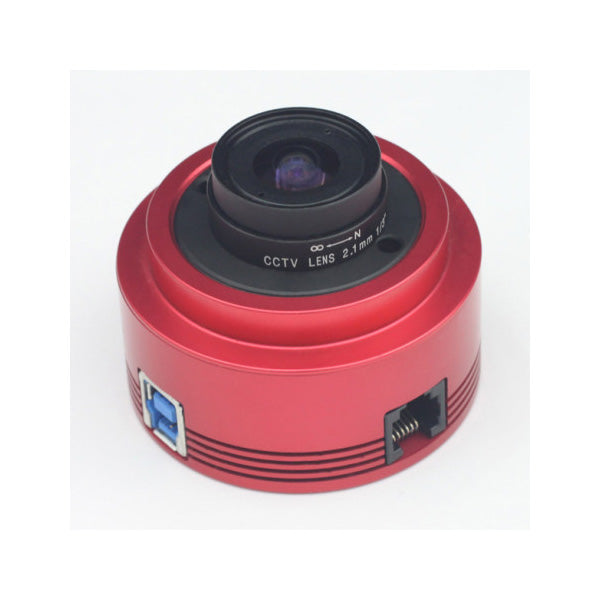

    ZWO ASI290MM Monochrome CMOS Imaging Camera

    ZWO's ASI290MM is a CMOS camera that is designed for enhanced planetary, lunar, and solar imaging, even granting you the ability to capture deep sky images. The ASI290MM features the Sony monochrome IMX290/291 1/3" CMOS 2.13 MP sensor, with a 1936 x 1096 array of 2.9 µm pixels. This sensor has extremely low read noise of 1.0e at 30db gain and can fire off a maximum of 170 FPS at full resolution.

    The ZWO ASI290MM body has a back focus of 12.5mm. A high-speed USB 3.0 port, ST4 guide port, 1/4” tripod thread mount on the back, and an AR window are features of this ZWO imaging camera. The included software is compatible with Mac, Windows, and Linux operating systems. Everything you will need to control your ZWO camera is available and easily downloadable in one centralized location on the ZWO website. Click here for ZWO Software Downloads.

    More about the Sony IMX290LRQ Sensor

    The Sony IMX290/291LRQ uses STARVIS back-illuminated pixel technology for improvements in visible and IR light regions. Besides a back-illuminated structure, the Sony IMX290LRQ also has an expanded photodiode area. When applied simultaneously, these features improve sensitivity in both light regions compared to the existing front-illuminated structure.

    The IMX290/291 has a diagonal size of 6.46mm (Type 1/2.8) and uses a 2.9 µm square pixel that was newly developed by Sony to further enhance picture quality at low illuminations.



    Supplier SKU

    ASI290MM

    What's Included

    • ZWO ASI290MM USB 3.0 Mono CMOS Astronomy Camera
    • 1.25" Nosepiece
    • 1.25" Cover
    • USB 3.0 Cable
    • ST4 Guide Cable
    • Quick Guide

  • Dimensions & Specifications

    • Sensor: 1/2.8" Monochrome CMOS
    • Resolution: 2.13 MP
    • Diagonal: 6.46mm
    • Image Array: 1936 x 1096
    • Pixel Size: 2.9 µm x 2.9 µm
    • Max Frame Rate at Full Resolution: 170 FPS
    • Window: AR
    • Guide Port: ST4
    • Minimum Exposure: 32 µs
    • Maximum Exposure: 2000 s
    • ROI: Supported

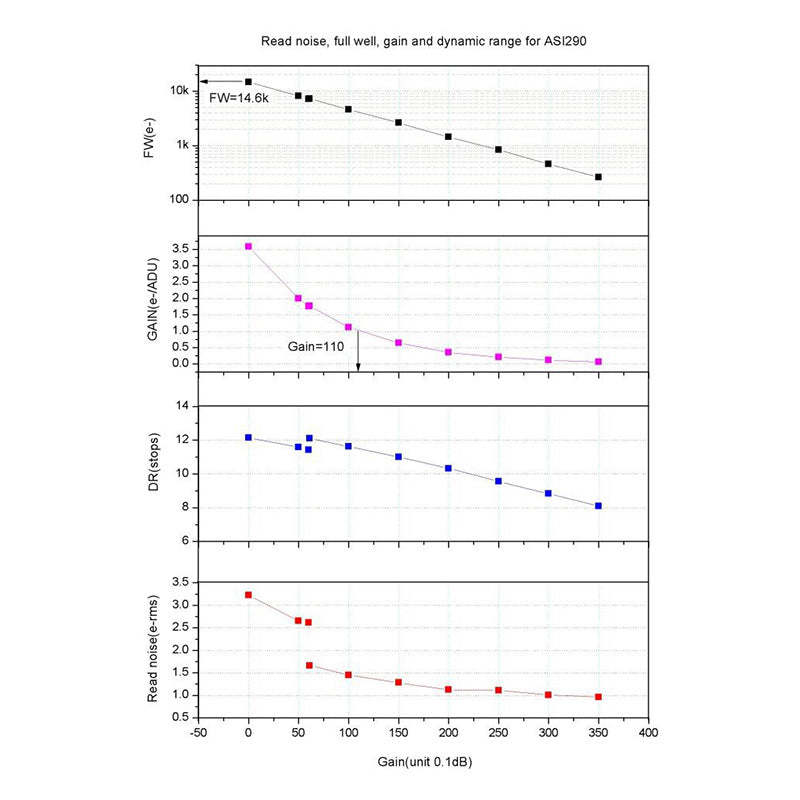

    • Read Noise: 1.0e at 30db gain
    • Full Well Capacity: 14.6ke
    • Back Focus Distance: 12.5mm
    • Interface: USB 3.0/USB 2.0
    • ADC: 12bit
    • Adapter: 2” to 1.25”/M42 x 0.75
    • All-Sky Camera Lens: 150mm f/2
    • Dimensions: 62mm Diameter
    • Weight: 210 g (7.4 oz.)
    • Working Temperature: -5ºC - 45ºC
    • Working Relative Humidity: 20% - 80%
