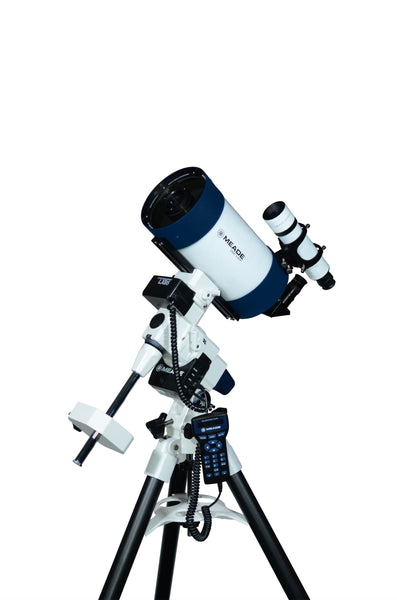

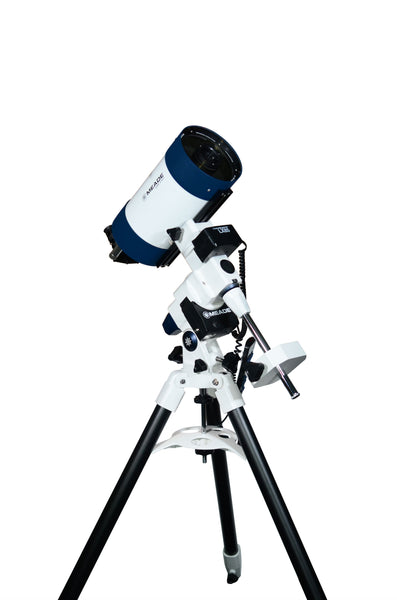

Meade 6" ACF Telescope on LX85 Computerized Equatorial Mount
Experience unparalleled views of planets, the Moon, and even deep-sky objects with this Meade LX85 6-ACF. In this package, you will receive a 6" ACF telescope equipped with the LX85 GoTo mount as well as an aluminum and steel tripod to reinforce your system with the capability to add more accessories. Also included are 2 Super Plossl 1.25" eyepieces and an 8x50 viewfinder. This package will make it simple for you to find your favorite celestial objects, and enjoy your long nights observing the skies.
Please Note: This mount requires a user-provided 12V DC power source and supply. We recommend the Meade Universal AC Power Adapter (07584) or the #607 DC Power Cord (07043) and a 12V Power Supply.

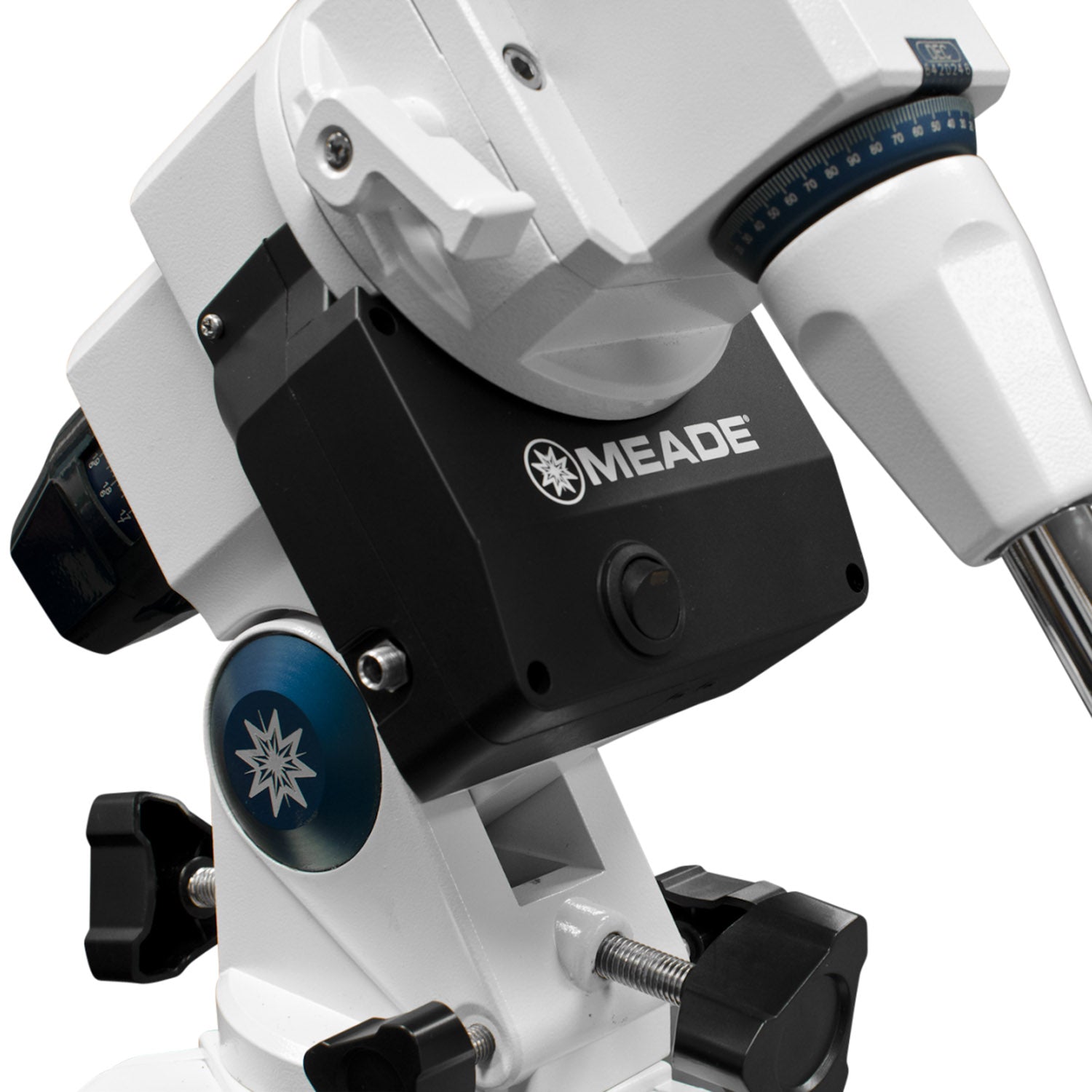

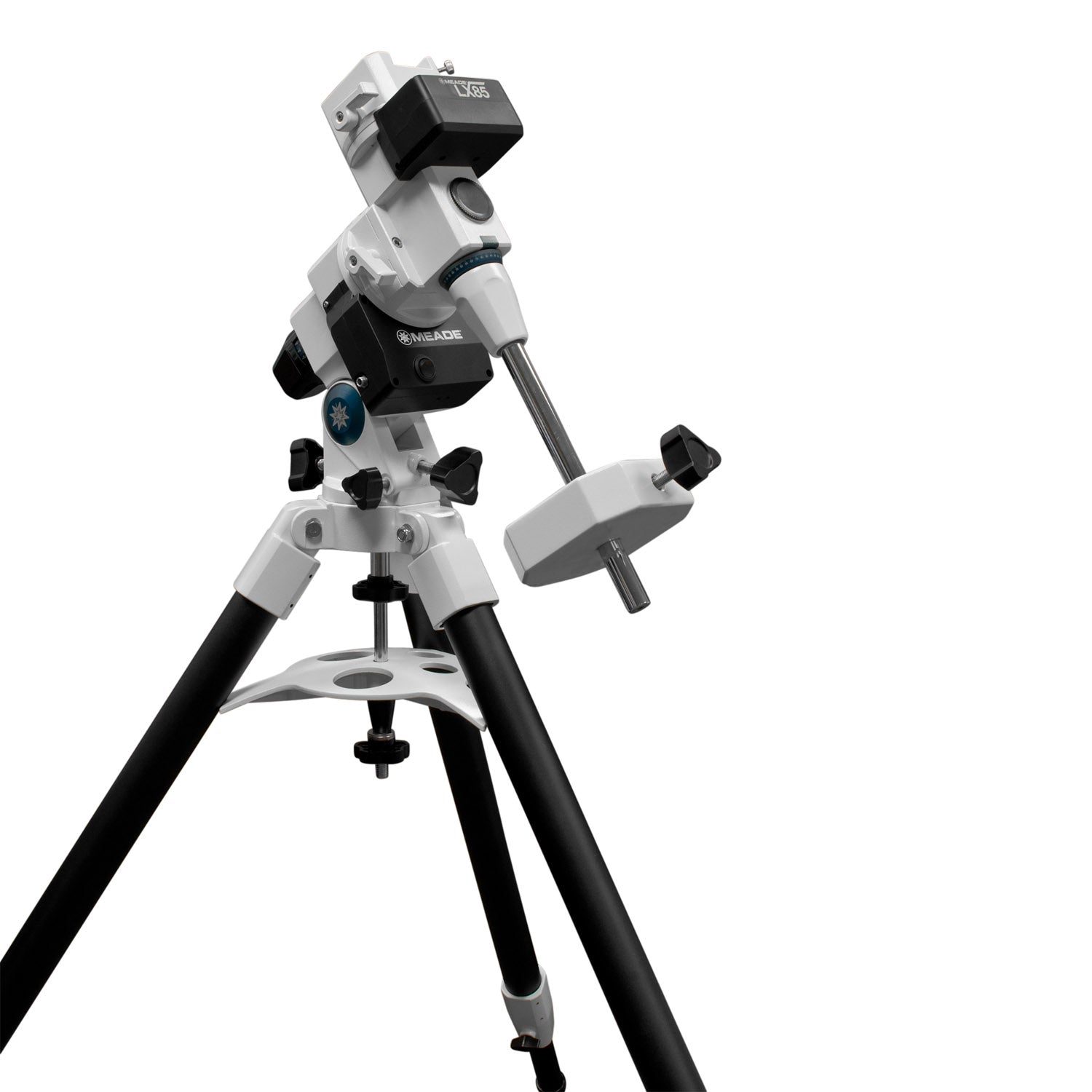

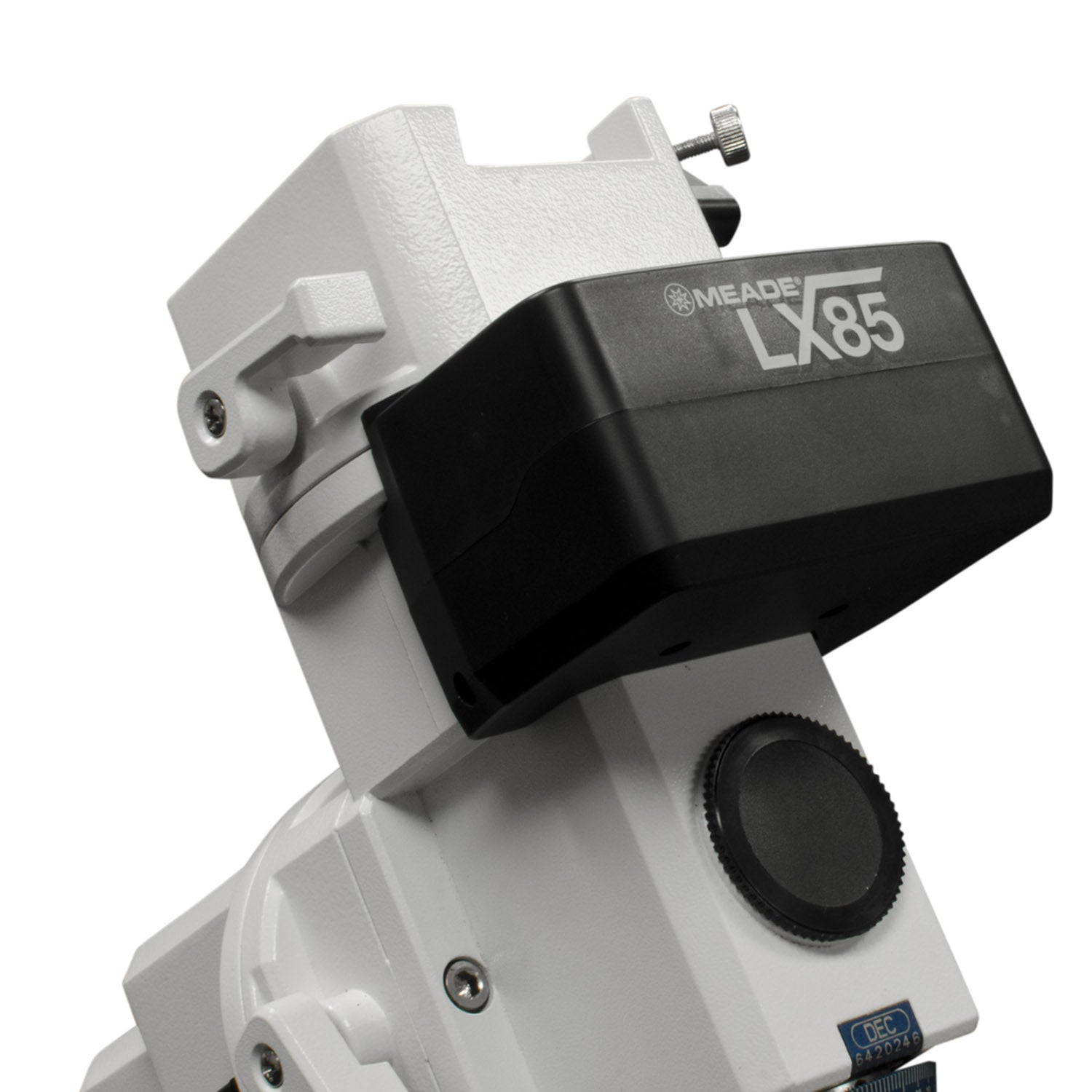

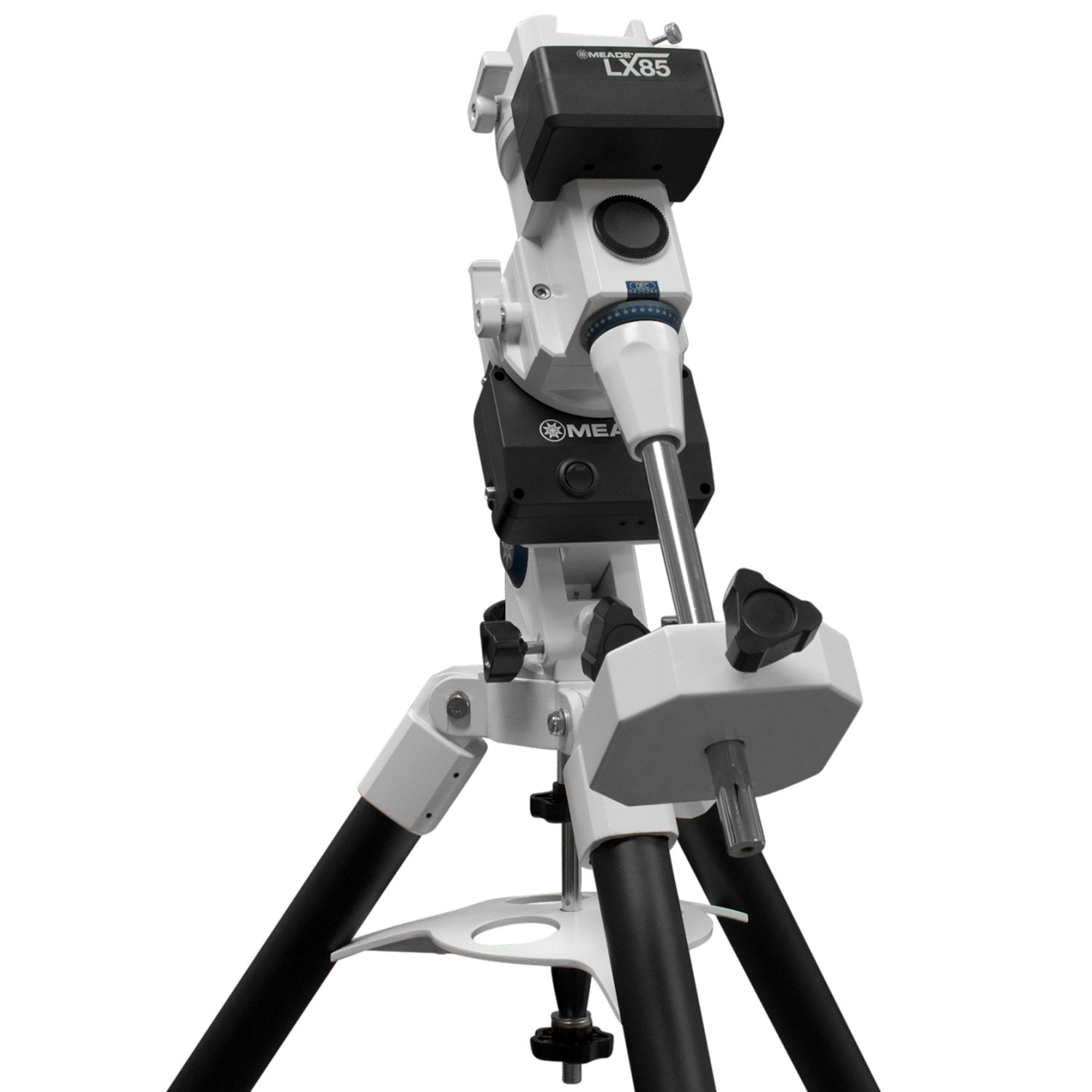

About the Meade LX85 German Equatorial Mount

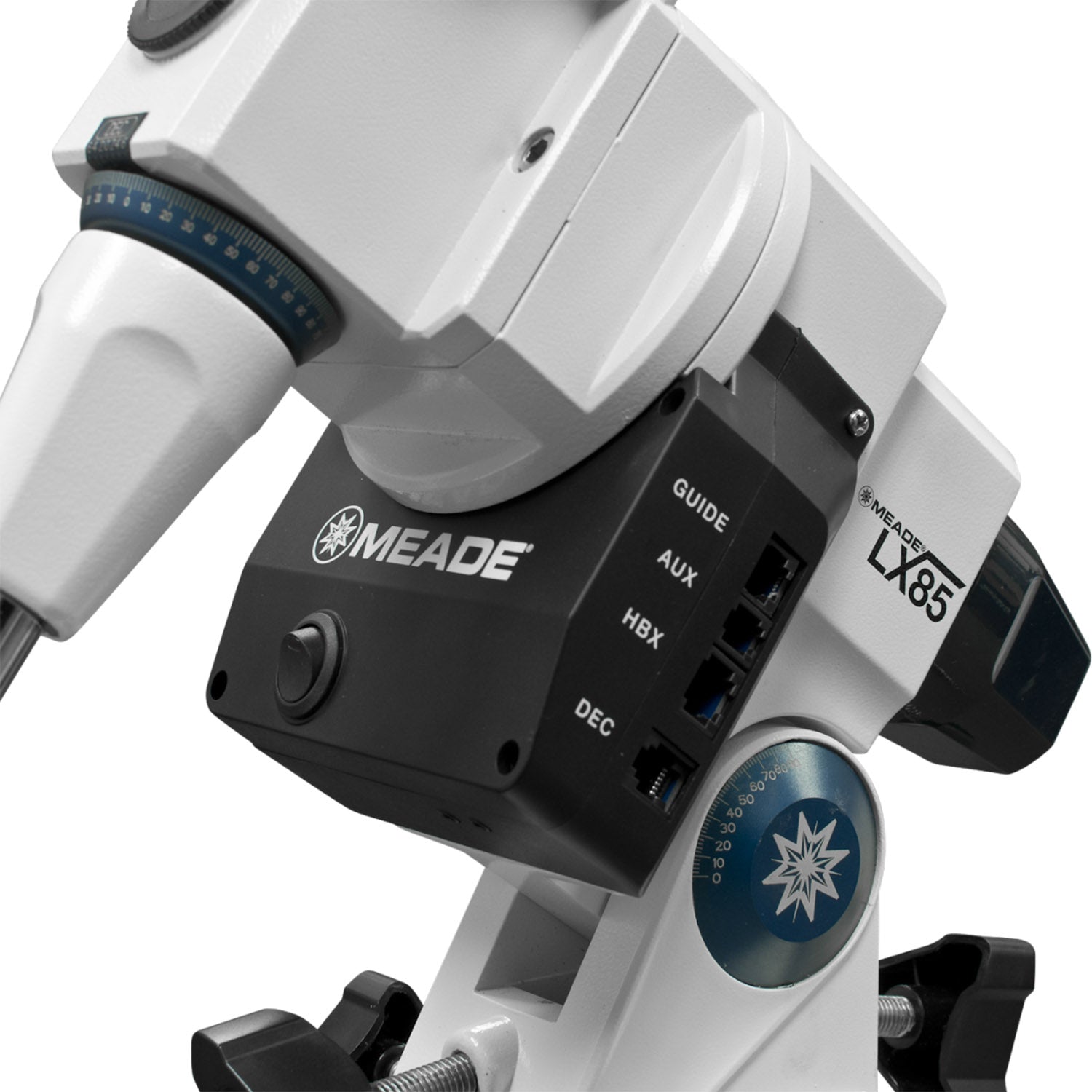

The Meade LX85 is a lightweight yet sturdy, classic German equatorial mount that has been upgraded with an AudioStar hand controller for state-of-the-art GoTo electronics. The LX85 GEM is fitted with 12v DC low-cog servo motors on both axes (right ascension and declination). Meade's Smart Drive offers PPEC training so that you can easily track through long exposures or just keep objects in your eyepiece for a good, long time without the need to adjust for drift. Also, there is no need to perform a meridian flip with the LX85 and an integrated guide port is ready and waiting to accept your favorite autoguider.
The LX85 mount is made of metal and is anodized with a white finish, while a few components, like the setting circles, are finished in “Meade Blue”. The LX85 mount breaks down into three lightweight pieces. The mount head weighs just 19.9 pounds, the tripod weighs 12.4 pounds, and the counterweight weighs 9 pounds. With weights as low as these, even older children and teens can set it up!

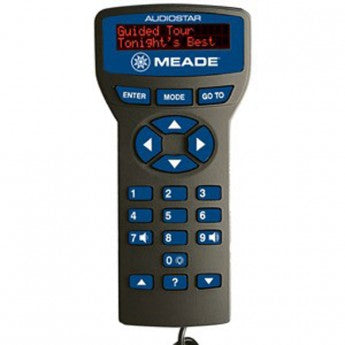

Use the AudioStar controller to find objects, do an easy alignment, move the mount electronically, or take a tour of the night's best objects.
With a database of over 30,000 objects and a built-in speaker, the Meade AudioStar will not only help you find objects with its easy, user-friendly interface, it can talk to you about a wide range of objects for a truly interactive experience.
If you don’t know what’s up in the sky on a particular evening, or don’t have a particular observing schedule in mind, let the Meade AudioStar show you “Tonight’s Best”. Choose the Tonight’s Best tour on the controller and you will be shown, you guessed it, the best objects in the sky for that particular date and time. The AudioStar controller has a multitude of functions for you to explore, such as digital positional readouts, a database of up to 200 user-defined objects, 9-Speed dual-axis movement, and much more.
The Meade LX85 has a weight capacity of approximately thirty-three (33) pounds, which allows you to ride a wide variety of telescopes on the mount and still have capacity left for accessories. Just attach an OTA with a Vixen-style dovetail to the saddle and add extra counterweights, if necessary, to balance the load. One 9-lb. counterweight is included with the LX85 mount package.
The adjustable aluminum and steel tripod included with the LX85 weighs just 12.4 pounds. The height of the steel legs can be adjusted so that the tripod will stand anywhere from 31.5” to 43.5” tall. A metal tripod leg spreader bar, which helps immensely with tripod stability, doubles as an accessory tray.
About the Meade 6" ACF Telescope
The LX85-ACF represents the latest step in the evolution of Meade's f/10 Advanced Coma-Free Optics. Meade has created the LX85-ACF using a new optical design with coma-free pinpoint star images and flatter field that discerning astrophotographers and most professional observatories expect. Meade's Advanced Coma-Free system also reduces astigmatism and eliminates diffractions spikes found in classical RC telescopes. No competing Schmidt-Cassegrain Telescope can make those claims.
The LX85-ACF is the perfect platform for the demanding visual observer and imaging enthusiast. With Ultra High Transmission Coatings (UTHC), this scope will reveal brighter star clusters, more fine detail in nebulae, and greater surface features on planets. When it comes to industry-leading optics, depth of features, and computerized operation, the LX85-ACF is the best all-around telescope value you can find.
A 8x50 finderscope helps you find objects by providing a low power (8X magnification) view of the sky. After you align the finder with your telescope, all you have to do is center an object of interest in the finderscope and then look through the eyepiece!
To start you off right, Meade is including two 1.25" eyepieces (a 26 mm and a 9 mm) with the LX85 package.
Meade 6" ACF OTA
Meade LX85 German Equatorial Mount
Adjustable Metal Tripod
AudioStar Hand Controller and Cord
One 9-lb Counterweight
Tripod Spreader/Eyepiece Storage
AutoStar Suite Astronomer Edition Software
Bubble Level Compass
8x50 Finder and Bracket
Vixen-Style Dovetail with Rings
26mm Super Plossl Eyepiece (1.25")
9mm Super Plossl Eyepiece (1.25")
Power Cable and Supply Sold Separately
Dimensions & Specifications
Meade LX85 GoTo Equatorial Mount Specs
Mount Type: German Equatorial
Hand Control: AudioStar
Software DVD: Autostar Suite Astronomer Edition
Supports ASCOM: Yes via AudioStar Controller
Motors: Dual Axis Low-Cog 12V DC Servo
Power: 12VDC - 5amp power supply (User Supplied)
Dovetail: Vixen Style
Weight Capacity: 33 pounds
Mount Weight: 10.9 pounds
Mount Dimensions: 4.8" x 12.4" x 13.2"
Tripod Weight: 12.4 pounds
Tripod Dimensions (Collapsed): 39.5" x 5.75" x 6.25"
Tripod Material: Aluminum castings with 1.75" diameter steel legs
Tripod Height: Minimum is 31.5" and maximum is 43.5"
Counterweight: One - 9 pounds
Assembled Mount Weight: 34.1 pounds
Assembled Mount Dimensions: 47.2" x 47.2" x 5.8"
Accessories: Bubble Level Compass and Tripod Accessory Tray
Meade 6" ACF Specs
Optical Design: Advanced Coma-Free
Clear Aperture: 152mm (6")
Focal Length: 1524mm
Focal Ratio: f/10
Optical Coatings: Ultra High Transmission Coating
Focuser: Single Speed Internal Focuser with 2" Rear Cell Adapter
Viewfinder: 8x50 Optical Finder with Crosshair
Eyepieces: 26mm & 9mm Super Plossl - 1.25"
OTA Weight: 9.14 pounds
OTA Dimensions: 16.5" x 8.5"
