Meade 80mm Triplet APO Refractor on LX85 Computerized Equatorial Mount

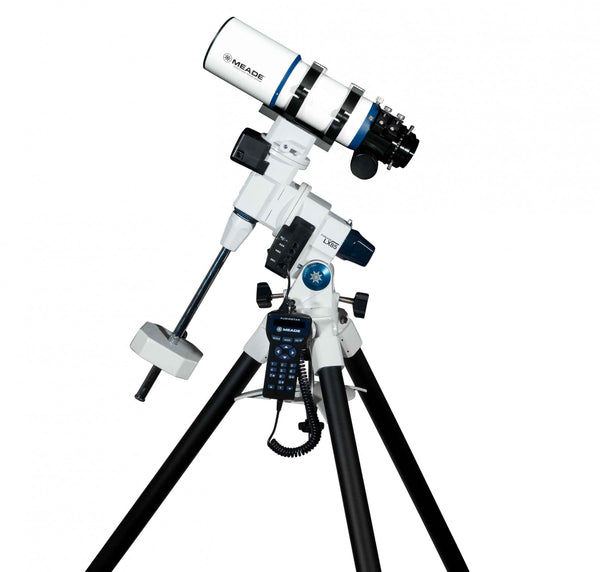

This 80mm LX85 Refractor package features a 3-element apochromatic refractor optical design as well as the Meade GoTo Equatorial Mount and tripod. This impressive LX85 package is ideal for astrophotography, planetary and lunar work, as well as deep-sky observations of brighter galaxies, nebulae, star clusters and more. The 80mm refractor weighs only 7 pounds, which means that there are about 26 pounds left of the LX85's weight capacity for you to add other accessories, like a camera, guider, and more.
Please Note: This mount requires a user-provided 12V DC power source and supply. We recommend the Meade Universal AC Power Adapter (07584) or the #607 DC Power Cord (07043) and a 12V Power Supply.
About the Meade LX85 German Equatorial Mount

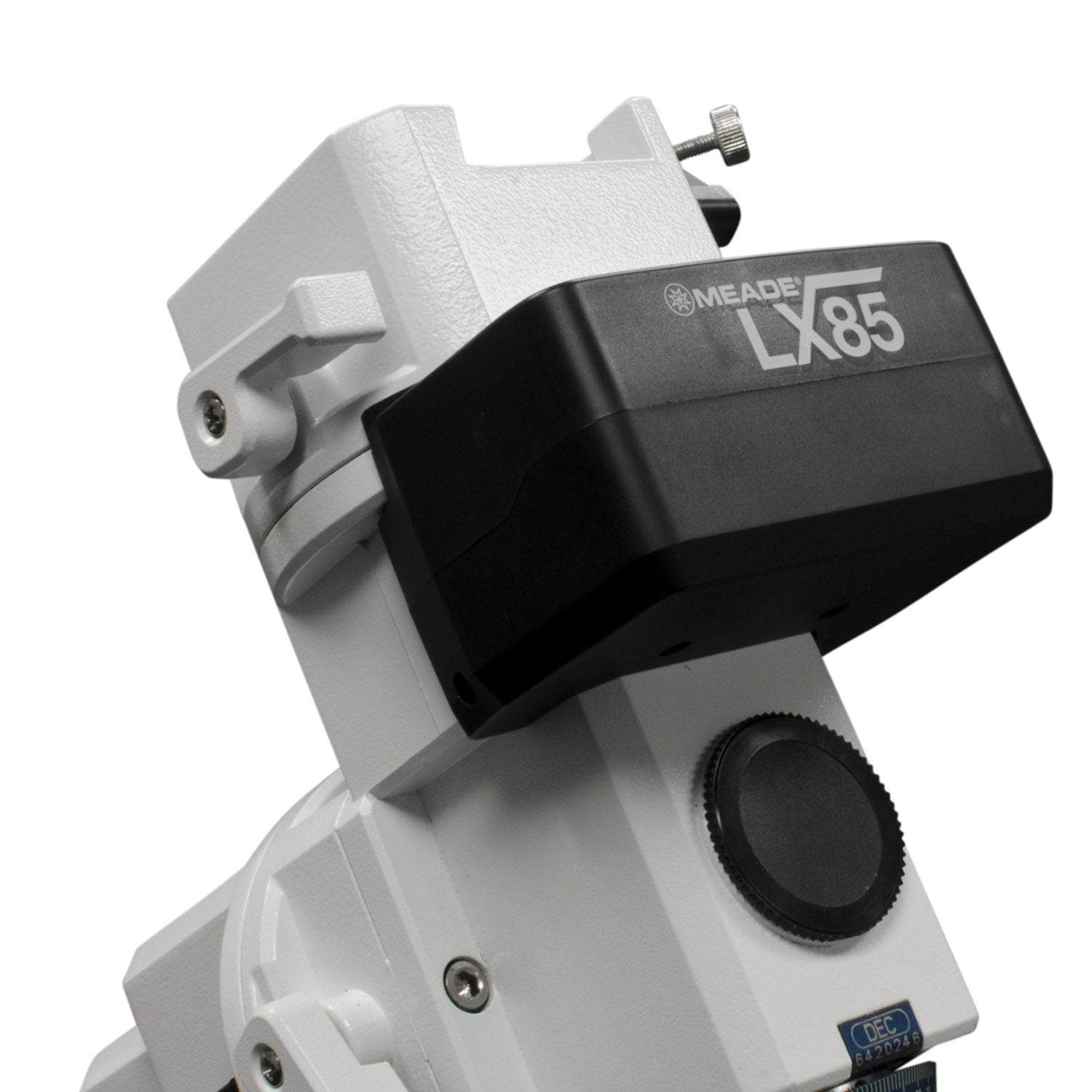

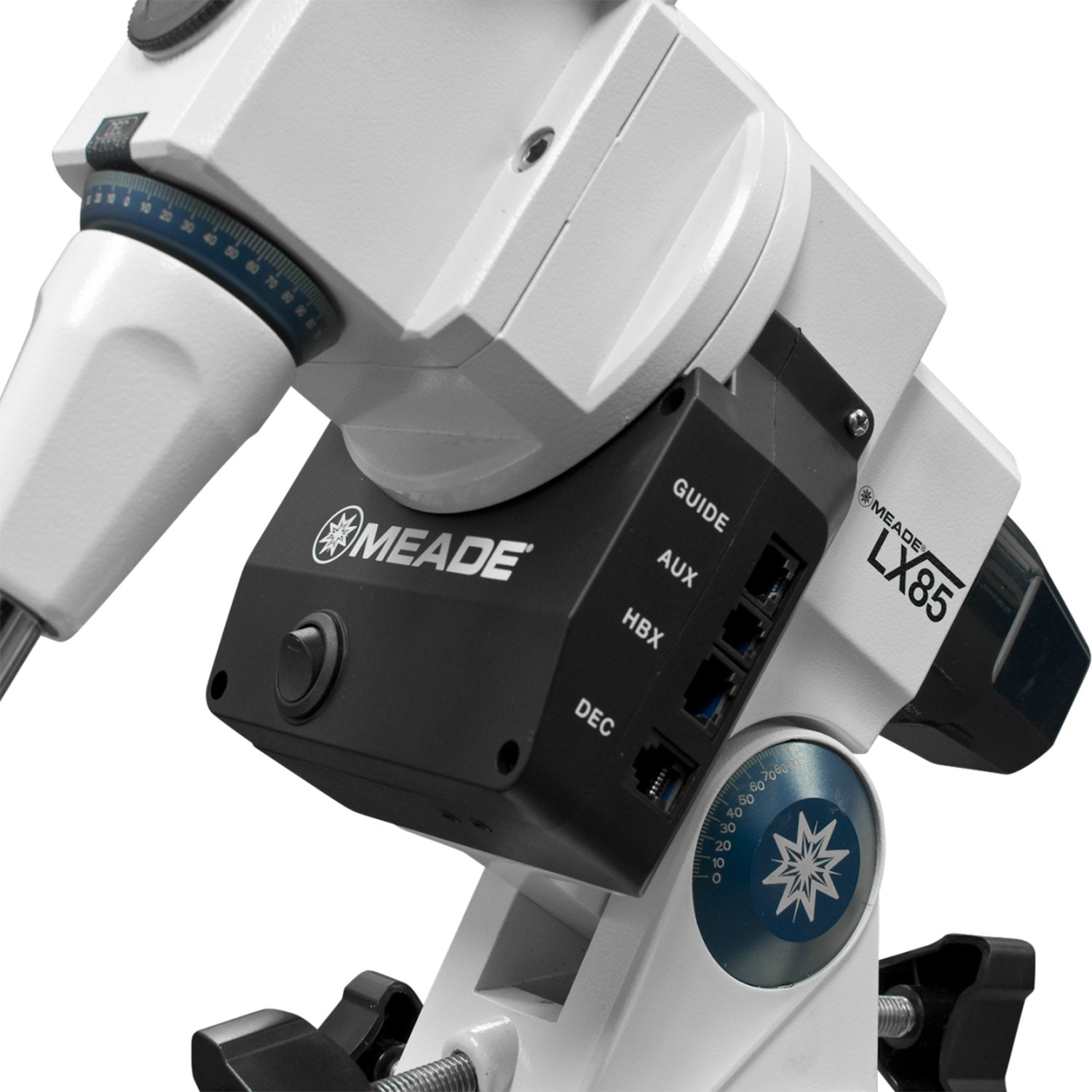

The Meade LX85 is a lightweight yet sturdy, classic German equatorial mount that has been upgraded with an AudioStar hand controller for state-of-the-art GoTo electronics. The LX85 GEM is fitted with 12v DC low-cog servo motors on both axes (right ascension and declination). Meade's Smart Drive offers PPEC training so that you can easily track through long exposures or just keep objects in your eyepiece for a good, long time without the need to adjust for drift. Also, there is no need to perform a meridian flip with the LX85 and an integrated guide port is ready and waiting to accept your favorite autoguider.
The LX85 mount is made of metal and is anodized with a white finish, while a few components, like the setting circles, are finished in “Meade Blue”. The LX85 mount breaks down into three lightweight pieces. The mount head weighs just 19.9 pounds, the tripod weighs 12.4 pounds, and the counterweight weighs 9 pounds. With weights as low as these, even older children and teens can set it up!

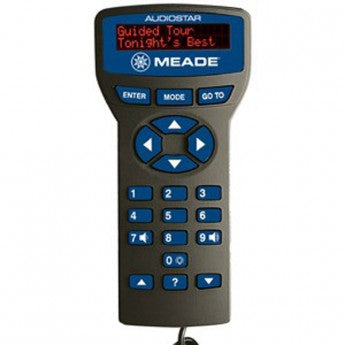

Use the AudioStar controller to find objects, do an easy alignment, move the mount electronically, or take a tour of the night's best objects.
With a database of over 30,000 objects and a built-in speaker, the Meade AudioStar will not only help you find objects with its easy, user-friendly interface, it can talk to you about a wide range of objects for a truly interactive experience.
If you don’t know what’s up in the sky on a particular evening, or don’t have a particular observing schedule in mind, let the Meade AudioStar show you “Tonight’s Best”. Choose the Tonight’s Best tour on the controller and you will be shown, you guessed it, the best objects in the sky for that particular date and time. The AudioStar controller has a multitude of functions for you to explore, such as digital positional readouts, a database of up to 200 user-defined objects, 9-Speed dual-axis movement, and much more.
The Meade LX85 has a weight capacity of approximately thirty-three (33) pounds, which allows you to ride a wide variety of telescopes on the mount and still have capacity left for accessories. Just attach an OTA with a Vixen-style dovetail to the saddle and add extra counterweights, if necessary, to balance the load. One 9-lb. counterweight is included with the LX85 mount package.
The adjustable aluminum and steel tripod included with the LX85 weighs just 12.4 pounds. The height of the steel legs can be adjusted so that the tripod will stand anywhere from 31.5” to 43.5” tall. A metal tripod leg spreader bar, which helps immensely with tripod stability, doubles as an accessory tray.
About the Meade 80mm Triplet APO Refractor
Meade LX85 Apochromatic Refractors represent some of the best-designed refractors available. Every refractor is independently constructed and tested to guarantee they meet Meade's highest standards in terms of both optics and mechanics.
These scopes were made with regards to the observer as well as the imager. With an optical design consisting of three elements that employ the highest grade FPL 53 extra-low dispersion (ED) optical glass, false color is all but eradicated for incredible color correction, sharpness, and contrast.
The Meade 80mm refractor optical tube assembly comes with a 2.5" rack and pinion focuser for fast and easy focusing. A 2" 90-degree mirror diagonal is included, as is a 2" to 1.25" adapter. This flexible arrangement allows you to use either 2" or 1.25" eyepieces or other barreled accessories. To start you off right, Meade is including two 1.25" eyepieces (a 26 mm and a 9 mm Super Plossl) as well as an 8 X 50 optical finder with the LX85 package. Your new telescope will be ready for observing right out of the box!
Meade 80mm APO Refractor OTA
Meade LX85 German Equatorial Mount
Adjustable Metal Tripod
AudioStar Hand Controller and Cord
One 9-lb Counterweight
Tripod Spreader/Eyepiece Storage
AutoStar Suite Astronomer Edition Software
Bubble Level Compass
8x50 Finder and Bracket
Vixen-Style Dovetail with Rings
26mm Super Plossl Eyepiece (1.25")
9mm Super Plossl Eyepiece (1.25")
Power Cable and Supply Sold Separately
Dimensions & Specifications
Meade LX85 GoTo Equatorial Mount Specs
Mount Type: German Equatorial
Hand Control: AudioStar
Software DVD: Autostar Suite Astronomer Edition
Supports ASCOM: Yes via AudioStar Controller
Motors: Dual Axis Low-Cog 12V DC Servo
Power: 12VDC - 5amp power supply (User Supplied)
Dovetail: Vixen Style
Weight Capacity: 33 pounds
Mount Weight: 10.9 pounds
Mount Dimensions: 4.8" x 12.4" x 13.2"
Tripod Weight: 12.4 pounds
Tripod Dimensions (Collapsed): 39.5" x 5.75" x 6.25"
Tripod Material: Aluminum castings with 1.75" diameter steel legs
Tripod Height: Minimum is 31.5" and maximum is 43.5"
Counterweight: One - 9 pounds
Assembled Mount Weight: 34.1 pounds
Assembled Mount Dimensions: 47.2" x 47.2" x 5.8"
Accessories: Bubble Level Compass and Tripod Accessory Tray
Meade 80mm Triplet APO Refractor Specs
Optical Design: Refractor
Clear Aperture: 80mm (3.15")
Focal Length: 480mm
Focal Ratio: f/6
Optical Coatings: Multi-Coated
Focuser: Dual Speed 2.5" Rack & Pinion
Viewfinder: 8x50 Optical Finder with Crosshair
Eyepieces: 26mm & 9mm Super Plossl - 1.25"
OTA Weight: 7 pounds
OTA Dimensions: 15.5" x 4.5"
