Meade Series 5000 HD-60 Telescope Eyepieces

Meade Series 5000 HD-60 Telescope Eyepieces has a rating of 4.6 stars based on 5 reviews.

Item #MEAD422-1

  • List Price:
  • $129.00
  • Your Price:
  • $89.00
  • You Save:
  • $-89.00 USD32% + FREE Shipping
  • Meade HD-60 eyepieces offer wide 60 degree field of view
  • Comfortably long eye relief
  • Six elements of exotic, Fully Multi-Coated glass
  • Blackened lens edges support high contrast views
  • Rotating Adjustable Eyecups
Questions? Let our experts help!
  • Description

    Build up your observing arsenal with these Series 5000 HD-60 eyepieces from Meade Instruments!   When compared to a classic Plossl, you'll find that the Meade HD-60 eyepieces have a wider field of view and a lot more eye relief.  The six-element design, composed of premium exotic glass, displays a 60 degree apparent field of view.  Objects near the edges of the field are not distorted due to the flat field design incorporated into the Series 5000 HD-60; instead, they are tack sharp. In fact, you'll experience a 40 percent improvement in corrections for edge distortion and chromatic aberrations over our comparison Plossl.  Super fully multi-coatings produce images that are high in contrast, with excellent color rendition.

    HD-60 = 60 degree apparent field of view and long eye relief

    The Meade HD-60 Eyepieces all have long eye relief of no less than 16.8mm.  Eyeglass wearers needn't worry about comfortable, full field viewing with these high-tech eyepieces, and those of us lucky enough to have long eyelashes will enjoy having enough "breathing room" between the lash and the glass.  It might sound silly, but eyelashes are one of the leading causes of smudges on eyepiece optics, and because the smudge is usually oil-based, it can't be removed with a simple lens brush.  Keeping eyelashes away from the glass means you won't have to clean your optics as often and chance scratching the coatings.

    All Series 5000 HD-60 eyepieces have blackened lens edges to cut down on internal reflections, and a rubber eye cup to help keep stray light from glancing off your optics and thus decreasing contrast.  Fold the rubber eyecup down when wearing eyeglasses for a nice, flat, cushioned surface to rest your glasses against.

    A choice of six focal lengths

    Meade offers a selection of focal lengths in the HD-60 series, including short focal lengths like a 4.5mm or 6.5mm, or medium focal length models such as the 9mm, 12mm, 18mm and 25mm.  Of course, the actual magnification you will receive depends on the focal length of your telescope.  To calculate the power of any eyepiece, divide the focal length of the eyepiece into the focal length of the telescope.  For instance, a telescope with a focal length of 900mm would achieve 200X with the Meade 4.5mm HD-60 eyepiece (900 divided by 4.5 = 200).  See the list of Meade HD-60 eyepiece models below:

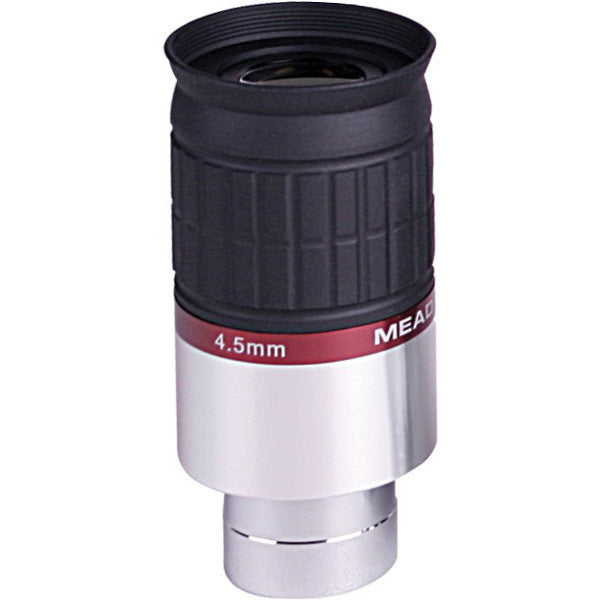

    Meade 4.5mm HD-60 Eyepiece

    • Eye Relief:  19mm
    • Barrel Size:  1.25"
    • Apparent Field of View:  60 degrees
    • Number of Elements:  6
    • Coatings:  Fully Multi-Coated
    • Parfocal:  Yes

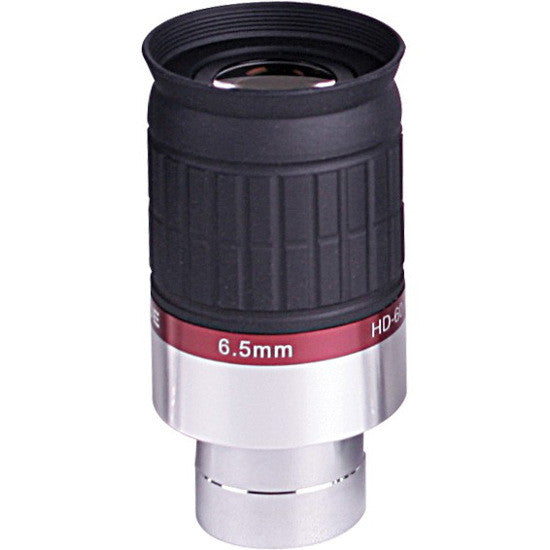

    Meade 6.5mm HD-60 Eyepiece

    • Eye Relief:  16.8mm
    • Barrel Size:  1.25"
    • Apparent Field of View:  60 degrees
    • Number of Elements:  6
    • Coatings:  Fully Multi-Coated
    • Parfocal:  Yes

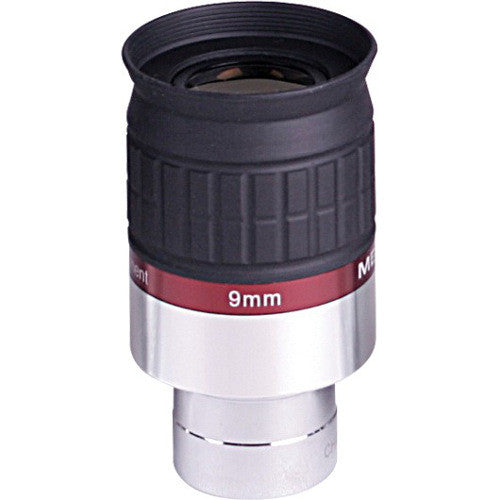

    Meade 9mm HD-60 Eyepiece

    • Eye Relief:  20.9mm
    • Barrel Size:  1.25"
    • Apparent Field of View:  60 degrees
    • Number of Elements:  6
    • Coatings:  Fully Multi-Coated
    • Parfocal:  Yes

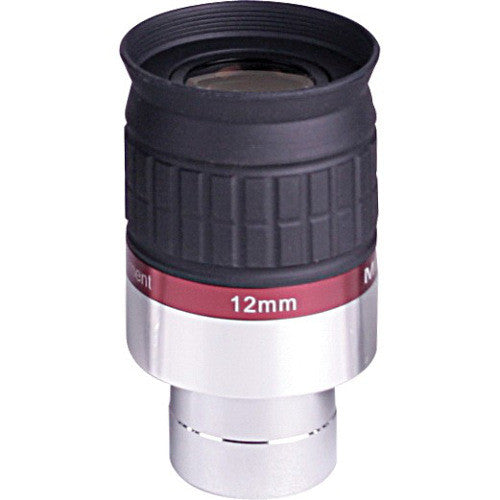

    Meade 12mm HD-60 Eyepiece

    • Eye Relief:  19.6mm
    • Barrel Size:  1.25"
    • Apparent Field of View:  60 degrees
    • Number of Elements:  6
    • Coatings:  Fully Multi-Coated
    • Parfocal:  Yes

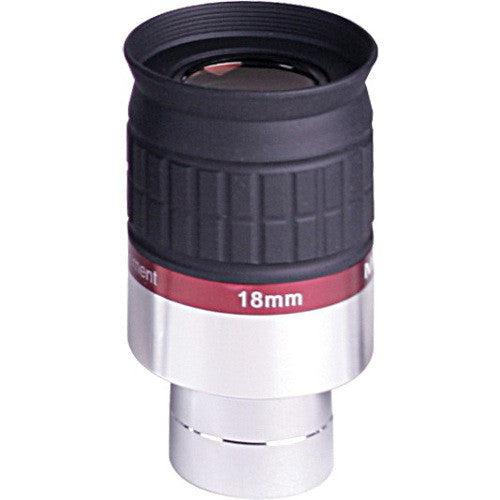

    Meade 18mm HD-60 Eyepiece

    • Eye Relief:  20.6mm
    • Barrel Size:  1.25"
    • Apparent Field of View:  60 degrees
    • Number of Elements:  6
    • Coatings:  Fully Multi-Coated
    • Parfocal:  No

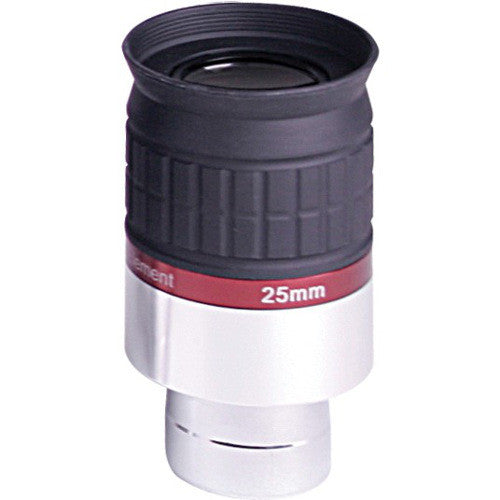

    Meade 25mm HD-60 Eyepiece

    • Eye Relief:  18.5mm
    • Barrel Size:  1.25"
    • Apparent Field of View:  60 degrees
    • Number of Elements:  6
    • Coatings:  Fully Multi-Coated
    • Parfocal:  No
